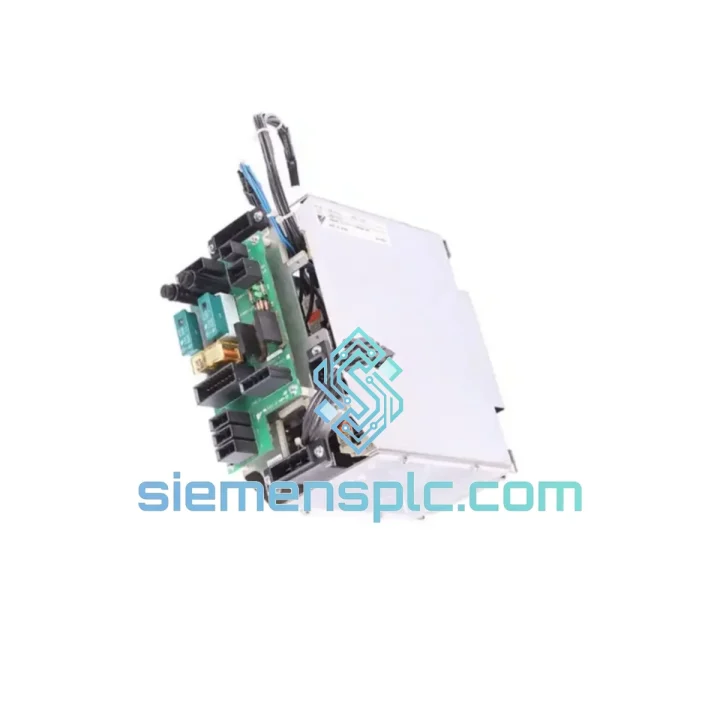

YASKAWA JZNC-YSU01-1E Robot Safety Module

YASKAWA JZNC-YSU01-1E — Stop the Clock on Your Downtime. Ship Today.

Every minute a Motoman robot cell sits idle costs real money — rejected production targets, idle labor, and contractual penalties that stack up fast. The JZNC-YSU01-1E is the safety arbitration board at the heart of your DX100 or DX200 controller. When it fails, the entire robot stops. No workaround. No bypass. You need the exact board, verified, and in your hands as fast as physically possible.

We stock the JZNC-YSU01-1E in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and arrive at your facility within 3–5 business days. Submit your inquiry now — our team responds within 2 hours during business hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The JZNC-YSU01-1E fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Fault Code 4310 / 4311 — Safety I/O Channel Discrepancy: This is the most common alarm triggered by a degraded JZNC-YSU01-1E. The dual-channel comparator detects a timing mismatch between CH1 and CH2 inputs — usually caused by a failing comparator IC on the board rather than the external safety device. Before condemning the board, verify your E-stop and fence wiring continuity with a multimeter. If both channels read clean externally and the fault persists after a cold restart, the board is the culprit.

Fault Code 4320 — Safety CPU Communication Timeout: The safety CPU on the JZNC-YSU01-1E has lost synchronization with the main CPU board (JANCD-YCP01-E or equivalent). This can appear after a power surge or brownout event. Check the backplane connector pins for oxidation or mechanical damage before swapping the board. If the connector is clean and the fault reappears within 30 seconds of power-on, replace the JZNC-YSU01-1E.

Replacement Procedure — Key Steps:

• Power down the DX100/DX200 controller completely. Confirm zero-energy state with a voltage tester on the main bus before opening the cabinet.
• The JZNC-YSU01-1E is located in the safety backplane slot — consult your controller’s maintenance manual for exact slot position (varies by robot payload class).
• This board does not use DIP switches or rotary address selectors. There is no hardware addressing to configure post-installation.
• After seating the replacement board, power on and navigate to the teach pendant: Main Menu → System → Security → Safety Function. Perform a full safety I/O check sequence to validate all input channels before releasing the cell to production.
• If the controller prompts for a safety parameter file restore, use the backup file from your most recent controller maintenance record. Never accept default parameters on a production robot without verification.
• Firmware: The JZNC-YSU01-1E does not require separate firmware flashing. The safety CPU firmware is embedded and version-matched at the factory. Confirm your controller software version is compatible (DX100: YAS-SYS-1.xx or later; DX200: YAS-SYS-2.xx or later) before installation.

Pro tip from the field: Always run a full safety validation cycle — including deliberate E-stop trigger, fence open simulation, and STO verification — before signing off the repair. A safety board that passes power-on self-test but fails under dynamic load conditions is a liability, not a fix.

Reliability in Harsh Conditions

Robot controller cabinets are not clean rooms. The JZNC-YSU01-1E is engineered to operate continuously in environments that would destroy consumer-grade electronics.

The board is rated for continuous operation at ambient temperatures from 0°C to 55°C inside the controller enclosure, with humidity tolerance up to 95% RH non-condensing. In automotive welding cells, where weld spatter, coolant mist, and thermal cycling are daily realities, the conformal coating on the PCB provides a critical barrier against conductive contamination. The board’s dual-channel architecture also means that even if one channel degrades due to environmental stress, the safety system detects the discrepancy and triggers a controlled stop rather than a silent failure — exactly the behavior required by IEC 62061.

Vibration resistance is validated to IEC 60068-2-6 standards, covering the 10–150 Hz frequency range at 1g acceleration — sufficient for mounting in robot controllers installed on vibrating press lines or near heavy stamping equipment. The backplane connector uses gold-plated contacts with positive retention to prevent intermittent faults caused by micro-vibration over years of service.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions and packed in anti-static bags with desiccant and humidity indicator cards. Every board is inspected for physical damage and connector integrity before dispatch.
