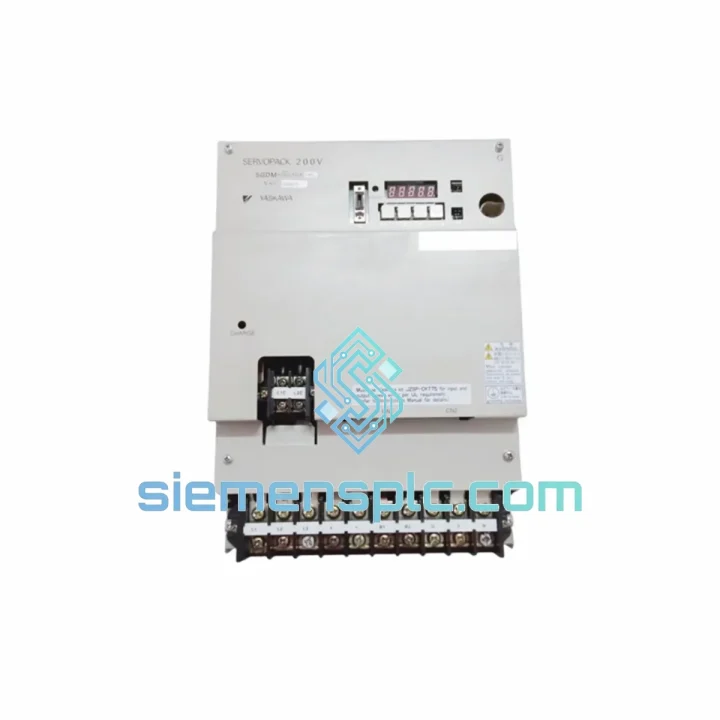

YASKAWA SGDM-60ADA AC Servo Drive

YASKAWA SGDM-60ADA: Stop the Bleeding — Get Your Line Back in 48 Hours

Your machining center just tripped. The HMI is showing a servo alarm. The SGDM-60ADA is dead and your production supervisor is already on the phone. You know the math: a single shift of downtime on a CNC cell costs more than the drive itself — sometimes by a factor of ten. This page exists for exactly that moment.

We stock the YASKAWA SGDM-60ADA — the 6kW flagship of the Sigma-II (SGDM) servo amplifier family — and we ship from Xiamen within 24 hours of order confirmation. DHL Express to most destinations in Europe, Southeast Asia, and the Middle East lands in 2–4 business days. That’s the difference between a two-day outage and a two-week parts chase.

The SGDM-60ADA is not a commodity item. It is a precision motion controller embedded in the most demanding axes of CNC machining centers, robotic welding cells, semiconductor handling stages, and high-speed packaging lines. When it fails, nothing downstream works. No torque loop. No position feedback. No coordinated multi-axis motion. The entire automated cell is frozen until this specific amplifier is back online.

Every unit we ship has been visually inspected, power-on tested, and parameter-verified against factory defaults using SigmaWin+. We do not ship blind. You receive a unit that has been confirmed functional before it leaves our warehouse.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the SGDM-60ADA in the field:

A.041 / A.042 — Main Circuit Undervoltage: Before condemning the drive, check the 3-phase input at the L1/L2/L3 terminals under load. A weak contactor or corroded terminal block will drop voltage enough to trip this alarm without actually killing the drive. Swap the contactor first. If the alarm persists after confirming clean 200 VAC input, the internal DC bus capacitor bank is likely degraded — at this power class, capacitor aging is the primary failure mechanism after 8–12 years of service.

A.710 — Overload (Instantaneous): This is the alarm that kills SGDM-60ADA drives in injection molding and press applications. The clamp axis hits a mechanical hard stop, the drive tries to maintain torque, and the IGBT module takes the hit. When you pull the failed unit, inspect the IGBT module heatsink for discoloration. If the heatsink is clean but the drive is dead, the gate driver board is the likely culprit — a cheaper repair if you have a service depot available. If you need the machine running today, swap the drive.

A.C90 — Encoder Communication Error: Nine times out of ten this is the encoder cable, not the drive. Before ordering a replacement SGDM-60ADA, pull the CN2 connector and inspect the cable shield termination. Broken shield continuity in a high-EMI environment (near VFDs or welding equipment) will generate this alarm intermittently. If the alarm is hard and consistent, the encoder itself may have failed — check the motor first with a known-good drive if one is available on the floor.

Replacement procedure — key configuration steps:

• Parameter backup first: If the original drive still powers on (even with a fault), connect SigmaWin+ via CN3 and dump the parameter file before pulling the unit. The replacement drive ships with factory defaults — you will need to restore Pn000 through Pn212 at minimum, plus any application-specific gain tuning (Pn100, Pn102, Pn400 series).
• Rotary switch Sw1 (axis address): On multi-axis systems using MECHATROLINK-II, the NS100/NS115 option card has a physical rotary switch for station address assignment. The replacement card will default to address 1. Match the original setting before powering up — a duplicate address on the MECHATROLINK bus will cause all axes to fault simultaneously.
• Regenerative resistor wiring: At 6kW, the external regenerative resistor (JUSP-RA04-E or equivalent) is not optional. Verify the B1/B2 terminal wiring is intact and the resistor is not open-circuit before first power-on. Running without a regen resistor on a high-inertia axis will destroy the new drive’s braking transistor within minutes.
• Absolute encoder battery: If the system uses absolute encoders, the battery backup (on the motor side, not the drive) must be checked. A new drive will request an absolute encoder reset (alarm A.810) if the battery has been disconnected. Have the machine builder’s homing procedure ready before you power up.
• Firmware version: SGDM-60ADA units manufactured across different production years may carry different firmware revisions. If the machine controller (Fanuc, Mitsubishi, Siemens) has a specific servo parameter set tied to a firmware version, confirm compatibility before committing to the swap. We can provide the firmware version of our stock unit on request.
