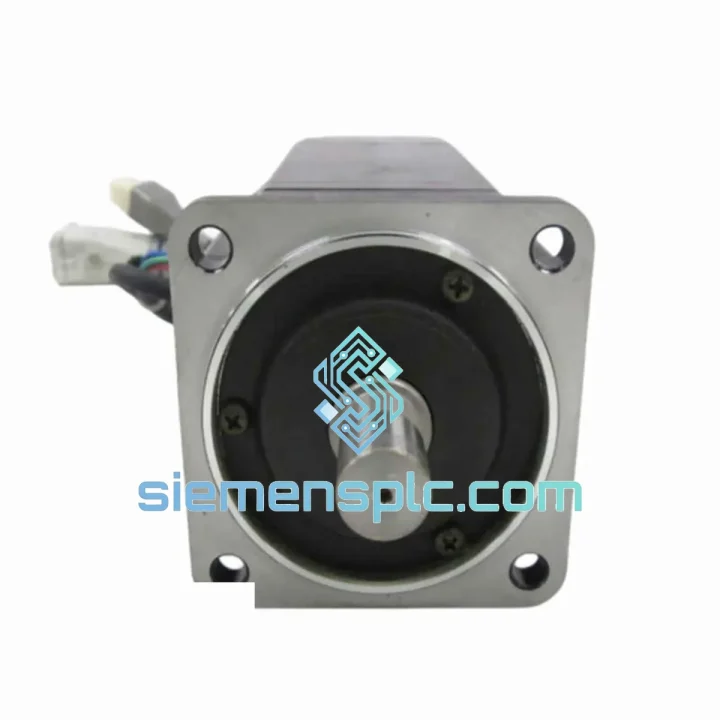

YASKAWA SGM-08A3FJ62 AC Servo Motor

SGM-08A3FJ62 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your line is down. Every minute costs money — rework, idle labor, missed delivery windows, penalty clauses. The YASKAWA SGM-08A3FJ62 is a 750 W Sigma-series AC servo motor with integrated holding brake, and it is one of the most failure-prone units in aging Σ-II installations. We stock it. We ship it. DHL Express from Xiamen to your dock in 48–72 hours. No waiting on factory lead times. No grey-market risk. Just a verified, original unit moving toward your facility right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of SGM-08A3FJ62 field swaps, these are the failure patterns and swap pitfalls that actually matter:

Top Failure Modes on This Unit

• Encoder signal degradation: The 2,048 P/R incremental encoder on Σ-II motors is sensitive to bearing wear and contamination. Alarm codes A.81 (encoder backup error) and A.82 (encoder checksum error) on the SGDH drive almost always point here first. Before condemning the motor, check the encoder cable shield continuity and connector seating — a loose CN2 connector causes intermittent A.82 that looks like encoder failure but isn’t.
• Holding brake coil failure: The “J” suffix means this motor has a 24 VDC holding brake. Brake coil resistance should read 40–50 Ω. Anything outside that range — replace the motor. A shorted brake coil will pull excessive current and may trip the brake power supply, causing the axis to drop under gravity load. Check this before assuming the drive is at fault.
• Winding insulation breakdown: Common in motors that have run hot due to overload or blocked ventilation. Measure phase-to-phase resistance (should be balanced within 5%) and phase-to-ground insulation (>1 MΩ at 500 VDC megger). If insulation reads below 100 kΩ, the motor is condemned — do not attempt to run it.
• Bearing noise and vibration: Audible grinding or elevated vibration at speed is a bearing issue. The SGM-08A3FJ62 uses standard deep-groove ball bearings. In high-cycle applications (>8 hours/day), bearing life is typically 20,000–30,000 hours. If the motor has been in service for 5+ years in continuous duty, proactive replacement is justified even without active alarms.

Step-by-Step Replacement Procedure

• Step 1 — Isolate and de-energize: Lock out the servo drive (SGDH or SGDM). Confirm the brake release circuit is de-energized. On vertical axes, mechanically support the load before releasing the brake — the holding brake is not a safety brake and will not hold indefinitely under power loss.
• Step 2 — Document encoder position: If your application uses absolute positioning via a home routine, note the current machine zero offset stored in the drive parameters (Pn808 on SGDH). You will need to re-establish home after swap.
• Step 3 — Disconnect in order: Remove the encoder cable (CN2) first, then the power cable (CN1). Label both. The encoder connector is keyed but the power connector is not — photograph the phase wiring (U/V/W) before removal.
• Step 4 — Mechanical removal: The SGM-08A3FJ62 uses a standard IEC flange. Four M5 bolts on the flange face. Remove the coupling or pulley using a proper puller — do not hammer on the shaft end. Hammering transmits shock load directly to the encoder disc and will destroy the new motor before it runs.
• Step 5 — Install new motor: Verify shaft key is seated. Torque flange bolts to 4.5 N·m. Reconnect power (U/V/W in correct phase order) and encoder cable. Confirm brake release voltage is present at the brake connector (24 VDC ±10%).
• Step 6 — Drive parameter check: On SGDH drives, confirm Pn000.0 (motor type selection) is set to match the SGM-08A3FJ62. If the drive was previously tuned for a different motor frame, re-run autotuning (Fn001). Do not skip this — mismatched inertia ratios cause oscillation and potential mechanical damage on first move.
• Step 7 — Test at reduced speed: Command 10% rated speed in both directions before returning to full production speed. Monitor drive current display — rated current for this motor at 750 W is approximately 4.4 A. Sustained overcurrent on a fresh motor indicates a wiring error or mechanical binding.

Common Drive Alarm Codes (SGDH) and What They Actually Mean

• A.71 — Overload (instantaneous): Motor or drive is being asked for more torque than rated. Check mechanical load, coupling alignment, and brake release confirmation before blaming the motor.
• A.72 — Overload (continuous): Thermal model tripped. Let the motor cool 20 minutes. If it recurs immediately after restart, the duty cycle exceeds motor rating — resize or add cooling.
• A.81 / A.82 — Encoder errors: See encoder section above. 80% of these are cable or connector issues, not motor failure.
• A.C1 — Runaway: Motor accelerating without command. Almost always a U/V/W phase swap on the power cable. Swap any two phases and retest.

Reliability in Harsh Conditions

The SGM-08A3FJ62 was engineered for industrial environments where clean rooms are a luxury, not a standard. IP55 ingress protection means it handles directed water jets and heavy dust without compromise — relevant for machine tool coolant splash, foundry particulate, and food processing washdown proximity. The Class F winding insulation tolerates sustained temperatures up to 155°C at the winding, giving meaningful thermal headroom in ambient conditions up to 40°C even under continuous duty cycles.

Vibration resistance is validated to IEC 60068-2-6 standards. In practice, this means the motor survives mounting on press frames, stamping machines, and other high-vibration structures without encoder disc cracking or bearing race fretting — failure modes that plague lower-grade servo motors in the same applications. The flange-mount design distributes mechanical stress evenly across the mounting face, avoiding the cantilevered shaft loading that kills motors mounted on brackets.

Every unit we ship from our Xiamen warehouse has been stored in climate-controlled conditions. Servo motors that sit in uncontrolled storage develop bearing corrosion and winding moisture absorption — both invisible on visual inspection and both catastrophic on first power-up. Our storage protocol eliminates that risk. Units are rotated, inspected, and shipped with desiccant packaging as standard.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL Express and FedEx International Priority service to over 220 countries. Here is exactly what happens after you confirm your order:

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders after 14:00 ship next morning.
• Packaging: Servo motors ship in anti-static foam-lined double-wall cartons. The motor shaft is protected with a plastic cap. The encoder connector is covered. No exceptions.
• Documentation: Commercial invoice, packing list, and certificate of conformance ship with every order. HS code 8501.52 (AC motors, multi-phase, 750 W–75 kW) is pre-declared for customs clearance speed.
• Transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 3–4 days, South America 5–7 days. These are DHL Express door-to-door estimates, not port-to-port.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Customs clearance support: We provide pre-shipment documentation packages for customers in countries with complex import requirements (India, Brazil, Indonesia). Ask before ordering if you need this.

If your plant is down and you need the fastest possible delivery, tell us when you contact us. We will quote you the fastest available service level — including charter courier options for critical situations.
