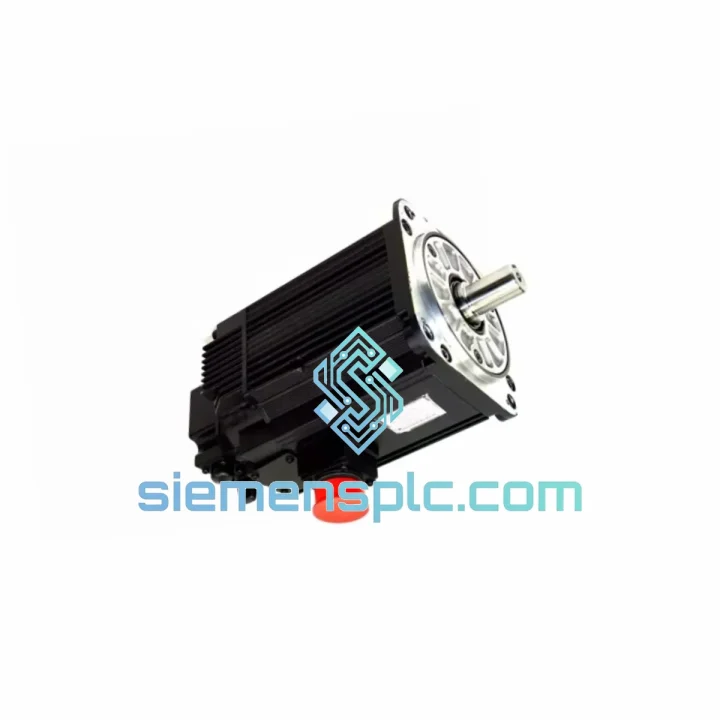

Yaskawa SGMSS-20A2A-YR11 AC Servo Motor

Yaskawa SGMSS-20A2A-YR11 — Stop the Clock on Downtime, Ship Today

A failed servo motor on a Yaskawa YRC1000 robot cell does not wait for procurement cycles. Every hour that axis stays dark is throughput you will never recover — missed shipments, idle downstream stations, and maintenance crews standing by at overtime rates. The SGMSS-20A2A-YR11 is the primary joint drive motor for medium-load axes on Yaskawa Motoman platforms, and when it fails, there is no workaround. You need the exact part, verified, and moving toward your dock today.

At siemensplc.com, we stock the SGMSS-20A2A-YR11 specifically because it sits at the intersection of high failure frequency and long OEM lead times. Yaskawa’s standard distribution channel for this motor runs 4–8 weeks in most regions. Our Xiamen warehouse ships in 1–3 business days. That gap is where we operate — and where your production budget gets protected.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the motor, confirm the fault is actually in the motor and not upstream. The YRC1000 controller will throw alarm codes that point to the axis — but encoder cable degradation, connector corrosion at the JZRCR-APP01-99mini drive connector, and loose shield grounds all produce symptoms identical to motor failure. Run through these checks first:

• Alarm A.810 / A.820 (Encoder Backup Error): This is the most common misdiagnosis. Before condemning the motor, swap the encoder cable and check the battery backup voltage on the absolute encoder. If the battery has dropped below 2.8V, the encoder loses its absolute position reference and throws this alarm. Replace the battery, perform a zero-point calibration, and retest before ordering a motor.
• Alarm A.710 (Overload): Persistent overload alarms on an SGMSS-20A2A-YR11 axis usually indicate mechanical binding — check the joint brake release, look for debris in the gear reducer, and verify the load inertia ratio has not changed due to tooling modifications. A motor that is genuinely overloaded will show elevated winding temperature before it fails electrically.
• Alarm A.C90 (Encoder Communications Error): Intermittent A.C90 faults almost always trace to the encoder connector at the motor body — specifically pin corrosion on the MS3102A connector. Clean with contact cleaner, reseat, and re-torque before replacing the motor.

When the motor is confirmed failed, follow this replacement sequence:

1. Power down the YRC1000 controller and lock out the main breaker. Wait a minimum of 5 minutes for the drive capacitors to discharge before touching any motor or drive wiring.
2. Record the current zero-point calibration data from the teach pendant (Main Menu → Robot → Zero Point Calibration → Display). Photograph the screen. This data is axis-specific and must be re-entered after motor replacement.
3. Disconnect the motor power cable (U/V/W) and encoder cable at the motor body. Label both connectors — the power connector orientation is not keyed on all harness revisions.
4. Verify the replacement SGMSS-20A2A-YR11 shaft suffix: YR11 = straight shaft with key. Do not accept a YR12 (keyless) as a substitute without confirming your coupling design accommodates it. The coupling bore and keyway must match exactly.
5. Mount the replacement motor, torque the flange bolts to specification (refer to Yaskawa document HW1481917), and reconnect power and encoder cables.
6. Power up the controller. Navigate to zero-point calibration and re-enter the recorded values. If the original values were lost, perform a full mechanical zero-point calibration using the calibration jig — do not attempt to estimate the zero position.
7. Run the axis through its full range of motion at reduced speed (10%) before returning to production speed. Monitor for vibration, abnormal current draw, and encoder feedback consistency.

Firmware note: The SGMSS-20A2A-YR11 does not carry user-configurable firmware — the encoder is factory-calibrated. However, if you are replacing a motor on a YRC1000 system that has been updated to a newer software revision, verify that the axis parameter file (AXS file) matches the replacement motor’s encoder specification. Mismatched AXS files can cause subtle torque ripple that only appears under load.

Reliability in Harsh Conditions

The SGMSS-20A2A-YR11 is not a laboratory instrument — it is built for the floor. Yaskawa’s SGMSS series is validated against IEC 60068 environmental stress standards, and the IP67 rating is not a marketing claim. It means the motor has been tested to withstand temporary immersion in water to 1 meter depth for 30 minutes — a standard that covers wash-down cycles in food processing and automotive paint shop environments.

Vibration resistance is rated to 49 m/s² (5G) across the 10–200 Hz frequency range, which covers the resonance bands generated by most industrial robot platforms during high-speed path execution. The winding insulation class is F (155°C), with a rated ambient operating temperature of 0–40°C and storage tolerance down to -20°C — relevant for facilities in northern climates where spare parts may be stored in unheated warehouses.

The 17-bit absolute encoder is sealed independently from the motor body and uses a dedicated battery backup circuit to retain position data through power interruptions. In high-humidity environments, the encoder connector is the most vulnerable point — apply dielectric grease to the connector pins during installation and inspect annually. Units that fail in humid environments almost always show connector corrosion rather than internal encoder failure.

Global Express Logistics

Our dispatch process is built around one constraint: your production cannot wait. In-stock SGMSS-20A2A-YR11 units confirmed before 14:00 CST ship same day from our Xiamen warehouse. Here is what that timeline looks like in practice:

• Day 0 (Order Confirmed): Unit pulled from stock, inspected, anti-static foam packed with moisture barrier, commercial invoice and packing list prepared for customs clearance.
• Day 0 (Evening): Shipment handed to DHL Express or FedEx International Priority at Xiamen pickup. Tracking number issued to buyer within 2 hours of dispatch.
• Day 1–2: Transit through Hong Kong or Shanghai hub. Most Asia-Pacific destinations receive the shipment at this stage.
• Day 2–4: European destinations (Germany, Netherlands, Poland) typically clear customs and deliver within this window via DHL Express.
• Day 3–5: North American destinations (USA, Canada, Mexico) via FedEx International Priority.

All shipments include full export documentation: commercial invoice with accurate HS code (8501.52), certificate of origin, and packing list. This documentation package is prepared to minimize customs hold risk at destination — a common failure point with less experienced exporters that can add 3–7 days to effective delivery time.

For buyers in Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia), transit times are typically 1–2 business days via DHL Express from Xiamen. For buyers requiring sea freight consolidation on larger orders, we offer weekly LCL consolidations from Xiamen Port to major European and North American ports.

Contact Information

Our technical sales team handles urgent inquiries around the clock. Provide your robot model, axis number, and current alarm code for fastest response.

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
