YASKAWA YPCT31097-1-0 ETC613040 Control Board

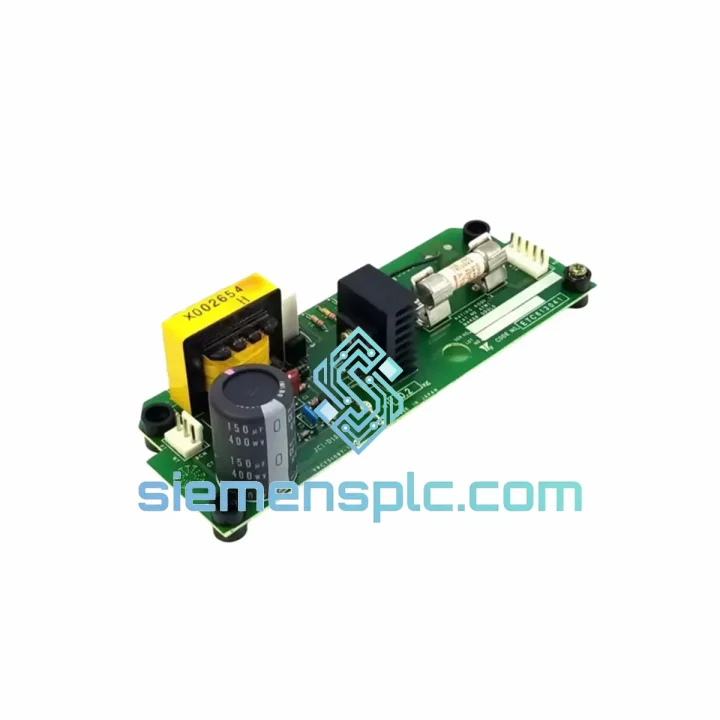

YASKAWA YPCT31097-1-0 / ETC613040 — Stop the Clock on Your Downtime

Every minute a Varispeed drive sits dead on the floor, your line is bleeding money. The YPCT31097-1-0 (cross-ref: ETC613040) is the main control circuit board for YASKAWA Varispeed G5/F7/G7 series AC drives — the brain that handles all closed-loop vector calculations, parameter storage, and I/O arbitration. When it fails, the drive fails. Full stop. We stock this board in Xiamen and ship same-day on confirmed orders. That is the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the YPCT31097-1-0 fails in predictable ways. Here is what you will actually encounter and how to deal with it fast.

Fault Codes That Point Directly to This Board

• CPF00 / CPF01 — Control circuit fault at power-up. The drive cannot establish internal communication between the control board and the gate driver board. Nine times out of ten this is a dead YPCT31097-1-0, not a wiring issue. Swap the board before chasing anything else.
• CPF02 — EEPROM checksum error. The parameter memory on the control board is corrupted or the EEPROM chip has failed. A board swap is the only fix; re-initialise parameters (A1-03 = 2220 or 3330) immediately after installation.
• CPF06 — ASIC fault. The custom YASKAWA ASIC on the control board has locked up. This is not recoverable by reset. Replace the board.
• OPE01–OPE11 — Operator programming errors that persist after correct parameter entry often indicate a corrupted parameter table in EEPROM — same root cause as CPF02.
• UV1 at power-up with correct DC bus voltage — The control board’s internal 5 V rail has collapsed. Measure TP5 on the board; if below 4.85 V, the board is the fault source.

Step-by-Step Replacement Procedure

1. Record all parameters before shutdown. Connect a JVOP-160 or DriveWizard and upload the full parameter set. The EEPROM on the failed board may still be readable even if the board will not run. Do not skip this — re-entering 200+ parameters manually under pressure is a nightmare.
2. Isolate and lock out. Main breaker off, verify DC bus below 50 V with a meter before touching anything. Varispeed drives hold charge for up to 5 minutes after power-off.
3. Photograph connector positions. The YPCT31097-1-0 has 12–15 ribbon and discrete connectors. One wrong re-seat and you will be chasing a phantom fault for an hour.
4. Check DIP switch positions on the old board. SW1 and SW2 on the Varispeed G5/F7 control board set the termination resistance for the RS-485/MEMOBUS network and the analog input signal type (voltage vs. current). Match these exactly on the replacement board before installation. Failure to do so causes OPE03 (V/f pattern error) or communication loss on the network.
5. Seat the new board and torque all connectors. Ribbon connectors must click fully — a half-seated ribbon causes intermittent CPF00 that is maddening to diagnose.
6. Restore parameters. Download the saved parameter file or re-enter manually. Run A1-03 initialisation only if you have no backup — this wipes all custom tuning.
7. Run auto-tune (T1-01). If the motor data has been wiped, perform rotational auto-tune before returning the drive to production. Skipping this on a vector-controlled drive causes torque instability under load.
8. Verify analog I/O calibration. Check H3-03 (AI terminal gain) and H3-11 (AI terminal bias) against your process setpoint. A new board ships with factory defaults; your process may require trimmed values.

Common Mistakes That Cost Time

• Installing a YPCT31097-2-0 (revision B) into a G5 drive expecting a drop-in fit — the connector layout changed between revisions. Always confirm the revision suffix matches your drive’s serial number range.
• Forgetting to re-enable the PG speed feedback card (PG-B2 / PG-X2) after board swap. The control board stores the option card configuration; a fresh board defaults to no option card, causing PGO fault on first run.
• Powering up without verifying the 24 V external power supply connection on CN8. If your system uses an external 24 V keep-alive, the board will not initialise correctly without it.

Reliability in Harsh Conditions

YASKAWA designed the Varispeed control board for industrial environments that would destroy consumer-grade electronics. The YPCT31097-1-0 is conformal-coated on the solder side, providing resistance to condensation and airborne contaminants common in food processing, chemical, and coastal installations. The board operates across a -10 °C to +50 °C ambient range (drive enclosure temperature) and is rated for 5–95% RH non-condensing.

Vibration resistance meets IEC 60068-2-6 at 9.8 m/s² (1 G), 10–55 Hz — adequate for pump skids, compressor rooms, and mobile equipment installations where chassis vibration is a constant. The ASIC and EEPROM components are soldered with lead-free alloy to YASKAWA’s automotive-grade reflow profile, which means solder joint fatigue from thermal cycling is not a common failure mode on genuine OEM boards. Counterfeit boards fail here first — the solder joints crack within 6–18 months of thermal cycling.

All boards we ship are inspected under 10× magnification for solder joint integrity, PCB delamination, and component seating before packaging. Refurbished units additionally undergo a 4-hour burn-in cycle at 45 °C to screen for infant mortality failures before dispatch.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is how your board gets from our shelf to your site:

• Order confirmed before 15:00 CST: Same-day dispatch. Tracking number issued within 2 hours of collection.
• Packaging: Anti-static bag → foam insert → double-wall export carton. The board will not move inside the box. We have shipped to offshore platforms and remote mining sites without damage.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, Americas 3–5 days, Middle East / Africa 4–6 days.
• FedEx International Priority: Available as alternative for destinations where DHL coverage is limited.
• Customs documentation: Commercial invoice, packing list, and HS code declaration (8537.10) prepared for every shipment. We have zero held shipments in the past 24 months across 40+ destination countries.
• Urgent freight: For critical shutdowns requiring next-flight-out courier, contact us directly on WhatsApp. We coordinate hand-carry and charter freight for situations where standard express is not fast enough.

We do not use consolidators or third-party fulfilment centres. Every shipment leaves our Xiamen facility directly, which means no re-labelling delays, no lost-in-transit handoffs, and a clean chain of custody for your maintenance records.
