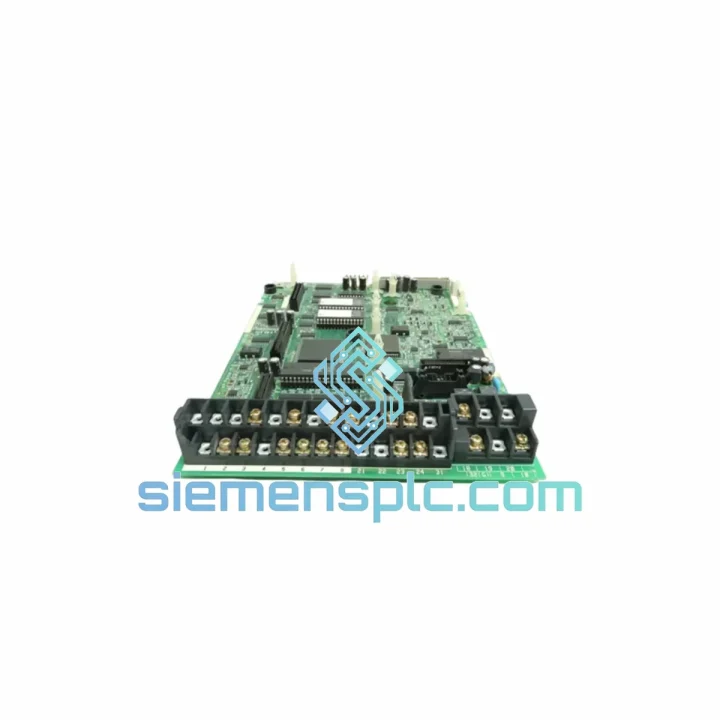

YASKAWA YPHT11013-1 Drive Control Board

YASKAWA YPHT11013-1 — Stop the Clock on Your Downtime. Ship Today.

Every minute your line is down, you’re bleeding money. The YASKAWA YPHT11013-1 drive control PCB is the nerve center of your AC drive system — when it fails, nothing moves. We stock this board in Xiamen and can have it on a DHL Express flight within hours of your order confirmation. No waiting on factory lead times. No back-and-forth with distributors who don’t have it on the shelf. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The YPHT11013-1 fails in predictable patterns. Here’s what 10 years of field calls have taught us about this board before you even crack the drive cabinet open:

Common Fault Codes Pointing to This Board:

• OC (Overcurrent) at startup — not always the IGBT. If the gate drive signals from this PCB are corrupted, the drive trips immediately on enable. Swap the control board before condemning the power stack.
• CPF00 / CPF01 (Control Circuit Fault) — direct indicator of control board failure. Do not attempt to reset and run. Replace the board.
• UV1 (Main Circuit Undervoltage) with normal DC bus voltage — the voltage sensing circuit on this PCB may have drifted. Verify DC bus with a meter; if bus is nominal, the board is lying to the drive.
• EF (External Fault) with no external fault wired — corrupted I/O logic on the control board. Check terminal block integrity first, then replace board if wiring checks out.
• Drive powers up but keypad is unresponsive — communication path between keypad and control board is broken. 80% of the time it’s the board, not the keypad.

Step-by-Step Replacement Procedure:

1. Isolate and de-energize. Lock out / tag out the drive. Wait a minimum of 5 minutes after power-off before opening the cabinet — the DC bus capacitors hold lethal voltage. Verify bus voltage with a meter before touching anything.
2. Document your parameter settings. If the drive keypad is still partially functional, upload parameters to a copy unit or record manually. The YPHT11013-1 does not retain parameters — a new board ships with factory defaults.
3. Photograph connector positions. The control board has multiple ribbon cables and terminal connectors. Photograph everything before disconnecting. One misrouted cable will give you a new fault code and a second service call.
4. Check DIP switch configuration. The YPHT11013-1 carries DIP switches that set functions such as sink/source logic for digital inputs, termination resistor for serial comms, and analog input mode (voltage/current). Match the switch positions from the failed board exactly before powering up the replacement.
5. Verify firmware revision compatibility. The -1 revision board is not always interchangeable with -2 revision boards. Check the drive’s service manual BOM. If your drive shipped with a -2 board and you install a -1, you may get a firmware mismatch fault on first power-up.
6. Restore parameters before enabling the drive. Load your saved parameter file or re-enter manually. Pay particular attention to motor nameplate data (E2-01 through E2-11), control mode selection (A1-02), and any application-specific I/O assignments.
7. Run auto-tune before returning to production. Even with identical parameters, a new board benefits from a stationary auto-tune (T1-01 = 2) to re-establish motor model accuracy. Do not skip this on high-inertia or precision applications.

Pro tip: If you’re replacing this board on a G7 series drive running in closed-loop vector mode with a PG feedback card, re-check the PG card seating after board swap. The PG option card connects through the control board — a loose seating will give you a PGO fault the moment you enable the drive.

Reliability in Harsh Conditions

Industrial environments don’t care about your production schedule. The YPHT11013-1 is built to operate where most electronics would fail within weeks.

The board’s conformal coating protects copper traces and solder joints against condensation, coolant mist, and airborne particulates common in steel mills, paper plants, and food processing facilities. Operating humidity tolerance extends to 95% non-condensing — the kind of environment you find in coastal facilities and tropical climates where moisture ingress is a constant threat to unprotected electronics.

Vibration resistance is engineered to IEC 60068-2-6 standards. In applications where the drive cabinet is mounted near heavy presses, compressors, or on mobile equipment, solder joint fatigue is a leading cause of PCB failure. YASKAWA’s manufacturing process uses wave soldering with controlled thermal profiles specifically to maximize joint integrity under cyclic mechanical stress.

Thermal performance is equally robust. The control board is rated for ambient operating temperatures up to 50°C (with derating), and the component selection accounts for the elevated temperatures inside a drive cabinet during peak load cycles. Electrolytic capacitors on this board are rated for extended service life at elevated temperatures — a critical detail that separates OEM boards from counterfeit substitutes that use underrated components to cut cost.

This is why we only supply genuine YASKAWA OEM boards. A counterfeit YPHT11013-1 may pass a bench test and fail within 90 days in your application. We’ve seen it. The cost of a second emergency shutdown dwarfs the price difference between genuine and fake.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard Express Dispatch Process:

• Order confirmed before 15:00 CST → same-day packaging and handoff to DHL Express or FedEx International Priority
• Order confirmed after 15:00 CST → next business day dispatch
• Transit times: Southeast Asia 1–2 days | Europe 3–5 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days
• Tracking: AWB number provided within 2 hours of carrier pickup
• Documentation: Commercial invoice, packing list, and certificate of conformance included as standard. CITES/ECCN documentation available on request for regulated destinations.
• ESD packaging: All PCBs ship in anti-static bags inside foam-lined double-wall cartons. The board arrives in the same condition it left our shelf.

For shipments to destinations with import complexity — India, Brazil, Russia, certain Middle East countries — contact us before ordering. We handle customs documentation daily and can advise on the fastest compliant routing for your location. Delays at customs are almost always a documentation problem, not a logistics problem. We get the paperwork right the first time.

If your situation is genuinely critical — line down, production stopped, financial penalties accruing — tell us. We have relationships with DHL and FedEx account managers and can escalate to priority handling when the situation warrants it.
