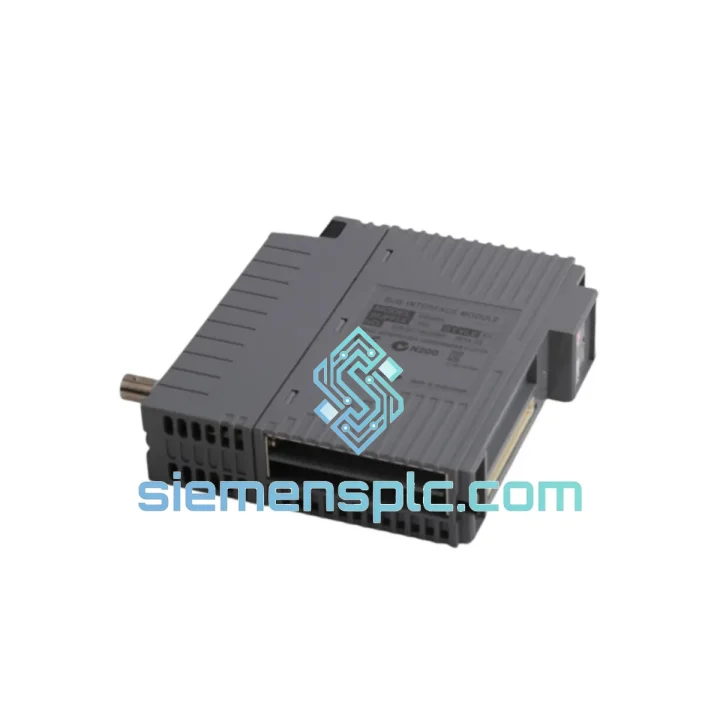

YOKOGAWA EB401-50 S1 DCS Module – CENTUM CS/VP

YOKOGAWA EB401-50 S1 – Interface Master Module for CENTUM CS/VP Distributed Control Systems

The YOKOGAWA EB401-50 S1 is a rack-mount Interface Master Module engineered for deployment within YOKOGAWA’s CENTUM CS and CENTUM VP Distributed Control System (DCS) platforms. Its primary function is to serve as the arbitration and routing node between the Field Control Station (FCS) processor and downstream I/O subsystems or field bus segments. In high-density process control environments — refineries, chemical complexes, power generation facilities — the integrity of this master interface layer directly determines scan cycle determinism, diagnostic transparency, and overall loop availability.

Unlike passive signal conditioners or terminal block assemblies, the EB401-50 S1 actively manages bus arbitration. It resolves contention across multiple I/O nodes, enforces priority scheduling for time-critical control loops, and maintains a continuous handshake with the FCS processor to confirm data validity before committing process variable (PV) updates to the control calculation engine. This active role makes it a load-bearing component in any CENTUM CS/VP architecture — not a peripheral accessory.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EB401-50 S1 operates at the master tier of the CENTUM CS/VP I/O hierarchy. Its internal architecture is structured around three functional blocks: the backplane transceiver, the arbitration controller, and the field-side interface driver.

Backplane Transceiver: The module interfaces with the FCS processor via YOKOGAWA’s proprietary synchronous backplane bus. Data transfer is clocked and framed — not asynchronous — which eliminates the variable latency inherent in Ethernet-based or UART-style interfaces. Each scan cycle, the FCS issues a structured command frame; the EB401-50 S1 decodes the frame, validates the target address, and dispatches the command to the appropriate downstream I/O node within a bounded time window. This bounded dispatch is what enables the CENTUM platform to guarantee scan cycle determinism at the millisecond level.

Arbitration Controller: In multi-module card cage configurations, multiple I/O modules may simultaneously assert data-ready signals. The EB401-50 S1’s arbitration controller implements a fixed-priority round-robin scheme: safety-critical analog input channels are serviced first, followed by discrete I/O, then diagnostic and status data. This priority hierarchy is hardwired in firmware and cannot be inadvertently altered by operator configuration — a deliberate design choice that prevents misconfiguration from degrading loop response in high-consequence control applications.

EMC Design: The module’s PCB layout follows YOKOGAWA’s standard EMC mitigation practices for industrial DCS hardware. Signal traces carrying high-frequency clock signals are routed with controlled impedance and guarded by ground planes on adjacent PCB layers. The card cage slot connector includes shield contacts that bond the module’s chassis ground to the card cage frame, providing a low-impedance path for common-mode noise currents induced by nearby variable-frequency drives (VFDs), high-current motor starters, or RF sources in the plant environment. This grounding architecture keeps conducted and radiated emissions within IEC 61000-4 series immunity thresholds.

Thermal Management: The EB401-50 S1 relies on convective airflow through the card cage for thermal regulation. Component placement on the PCB is optimized to direct heat-generating ICs — primarily the arbitration controller and backplane transceiver — toward the card’s leading edge, where airflow velocity is highest. This layout sustains junction temperatures within rated limits at the module’s maximum ambient operating temperature of +55°C without requiring forced cooling beyond the card cage’s standard fan tray.

System Integration Benefits

• Drop-in Backplane Compatibility: The EB401-50 S1 conforms to YOKOGAWA’s standard card cage mechanical and electrical interface specification. No re-pinning, adapter brackets, or I/O mapping reconfiguration is required when replacing an existing unit — the FCS recognizes the module by slot address and resumes normal scan cycle operation within one initialization cycle.
• Deterministic Scan Cycle Enforcement: By managing bus arbitration at the hardware level, the module prevents any single I/O node from monopolizing bus bandwidth. Control loops with tight derivative action — particularly flow and pressure loops with sub-100 ms scan requirements — maintain their configured scan period regardless of transient load spikes from other I/O channels.
• Integrated Diagnostic Reporting: The module continuously monitors its own backplane link quality, downstream I/O node response times, and internal power rail voltages. Fault conditions are encoded into structured diagnostic frames transmitted to the FCS historian, enabling maintenance teams to trend module health over time and schedule preventive replacement before a hard failure occurs.
• Legacy CENTUM CS Life Extension: Many CENTUM CS installations remain in service at facilities that have deferred full DCS migration due to capital constraints or process continuity requirements. The EB401-50 S1’s cross-compatibility with both CENTUM CS and CENTUM VP architectures allows these facilities to replace aging interface modules without committing to a platform upgrade, preserving the existing I/O wiring, loop tuning parameters, and operator graphics.
• Reduced Commissioning Downtime: Factory-loaded firmware and plug-and-play backplane recognition minimize the time between module insertion and return to automatic control. In hot-standby configurations where the redundant FCS takes over during module replacement, the switchover and re-synchronization sequence completes within the FCS’s configured bumpless transfer window.
• Fault Isolation Architecture: The module’s field-side interface driver includes electrical isolation between the backplane domain and the field bus segment. This isolation barrier prevents a field-side wiring fault — ground fault, short circuit, or induced transient — from propagating into the FCS backplane and corrupting data on unaffected I/O channels.
• Broad Industry Applicability: The EB401-50 S1 is qualified for use in oil and gas refining, petrochemical processing, power generation, pharmaceutical manufacturing, pulp and paper, and water treatment — any continuous-process application where YOKOGAWA CENTUM infrastructure is deployed and where unplanned downtime carries significant operational or safety consequences.
• Spare Parts Program Compatibility: The module’s long production history and stable form factor make it a practical candidate for plant-wide MRO spare parts programs. Procurement teams can maintain a single SKU across multiple card cage installations, reducing spare parts inventory complexity and simplifying the replenishment process.

Quality Assurance & Global Logistics

Every YOKOGAWA EB401-50 S1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection confirms label integrity, connector pin condition, and the absence of physical damage or evidence of prior rework. A functional power-on test verifies that the module initializes correctly and that its self-diagnostic routines complete without fault codes. Serial numbers are logged against shipment records to maintain full traceability.

Units are packed in anti-static ESD-safe bags, placed in foam-lined cartons with desiccant packs, and sealed for international transit. Shipments are dispatched via DHL Express, FedEx International Priority, or SF Express International, with full tracking provided from collection to delivery. Commercial invoice, packing list, and certificate of conformance are included with every shipment. For destinations requiring additional customs documentation — including HS code declarations and end-user certificates — these are prepared and included as standard.

Transit time from Xiamen to major industrial hubs in Southeast Asia, the Middle East, Europe, and North America typically ranges from 3 to 7 business days depending on the selected carrier and destination customs clearance speed. For urgent plant shutdowns or unplanned outages, expedited same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

All units carry a 12-month warranty covering defects in materials and workmanship from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement units are dispatched from stock where available, minimizing the warranty resolution cycle time for customers with active plant operations.
