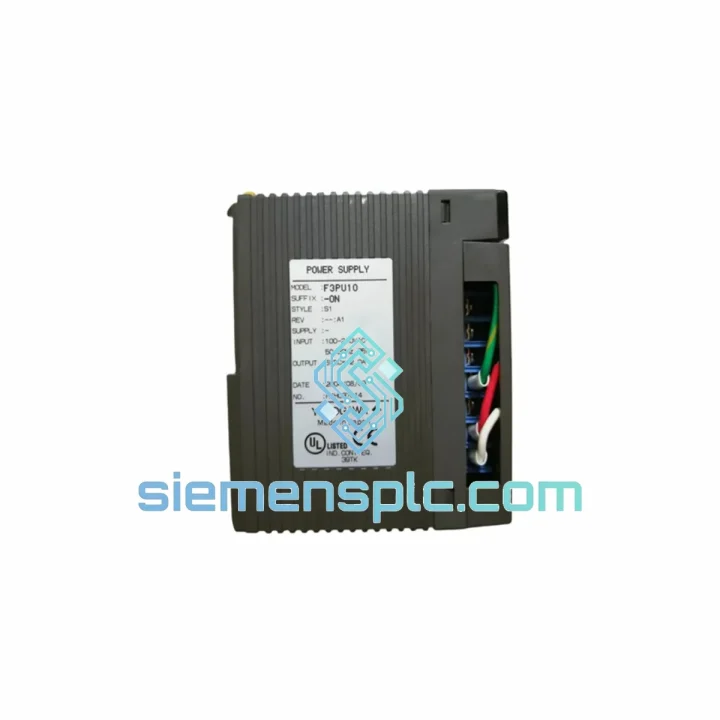

YOKOGAWA F3PU10-0N Power Supply Module

YOKOGAWA F3PU10-0N: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your FA-M3 rack just lost power. The line is cold. Every minute costs real money — production losses, penalty clauses, idle crews. The YOKOGAWA F3PU10-0N power supply module is the single point of failure standing between you and full restart. We stock it. We ship it. DHL Express from Xiamen, China — door-to-door in 2–5 business days to most industrial hubs worldwide. No broker delays, no customs surprises on our end. Just the part, packed right, moving fast.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of FA-M3 field work, here are the failure patterns and swap gotchas that actually matter on the floor:

Common Failure Signatures of a Dying F3PU10-0N:

• PWR LED off or flickering — not a CPU fault. Check the power module first before pulling the CPU.
• Intermittent rack resets under load — classic sign of a degraded capacitor bank inside the PSU. Swapping the CPU or I/O cards won’t fix this.
• ERR LED on CPU with no program fault — if the 5 V rail sags below spec, the CPU will throw a hardware error. Measure the backplane voltage before assuming a CPU failure.
• 24 V field power dropout — some FA-M3 I/O modules draw field power from the PSU’s 24 V rail. If field devices are dropping out but the CPU is running, the PSU’s secondary rail is suspect.
• Burning smell from the base unit — isolate immediately. The F3PU10-0N has internal fusing, but a shorted downstream module can stress the PSU beyond its protection threshold.

Step-by-Step Hot-Swap Replacement Procedure:

1. Verify safe shutdown: Confirm with the process engineer that the FA-M3 rack can be de-energized. In redundant PSU configurations, the second unit may sustain the rack — confirm before pulling.
2. Document current configuration: Note any DIP switch settings on the base unit and CPU module. The F3PU10-0N itself has no user-configurable switches, but adjacent modules may shift during removal.
3. De-energize AC input: Isolate the AC feed at the breaker. Confirm with a multimeter — do not rely on the panel indicator alone.
4. Remove the F3PU10-0N: Loosen the two captive screws on the module faceplate. Slide the module straight out of the leftmost slot. The backplane connector is a friction-fit — steady, even pull.
5. Inspect the backplane connector: Check for bent pins, carbon tracking, or moisture ingress before inserting the replacement. A damaged backplane connector will kill the new PSU within hours.
6. Seat the replacement: Align the module with the guide rails and push firmly until the backplane connector fully engages. Tighten the captive screws — finger-tight plus a quarter turn.
7. Re-energize and verify: Apply AC power. PWR LED should illuminate solid green within 2 seconds. Monitor the CPU for normal startup. Check I/O module status LEDs across the rack.
8. Load test: If possible, run the system under full I/O load for 15 minutes before handing back to operations. Marginal PSUs often fail under thermal load, not at cold start.

Configuration Notes:

• The F3PU10-0N has no DIP switches or address settings — it is a passive power converter. No firmware, no configuration tool required.
• After replacement, the CPU retains its program in battery-backed RAM. Confirm battery status on the CPU module before restart.
• If the FA-M3 system uses a redundant CPU pair (e.g., F3SP71 + F3SP71), verify that the standby CPU has not taken over and that the primary CPU resumes control correctly after PSU swap.
• For systems with a UPS or external 24 V backup, confirm that the backup supply did not mask the PSU fault — the root cause may be upstream AC supply quality, not the module itself.

Reliability in Harsh Conditions

The FA-M3 platform was designed for process industries where “harsh” is the baseline, not the exception. The F3PU10-0N reflects that design philosophy at the power delivery layer.

Vibration: The module’s internal components are conformal-coated and mechanically secured to withstand continuous vibration typical of compressor rooms, pump stations, and rotating machinery environments. The backplane connector uses a positive-retention locking mechanism that resists vibration-induced intermittent contact — the leading cause of unexplained rack faults in high-vibration installations.

Thermal Cycling: Industrial power supplies degrade fastest through repeated thermal cycling — cold starts in winter, peak loads in summer. The F3PU10-0N’s electrolytic capacitors are rated for extended temperature ranges, and the module’s thermal design allows passive convection cooling without forced airflow in standard panel configurations. In enclosures with poor ventilation, ensure ambient temperature at the module face does not exceed 55 °C — measure at the module, not at the panel door.

Humidity and Condensation: In coastal, tropical, or outdoor-rated enclosures, condensation is a real threat. The F3PU10-0N’s conformal coating provides a baseline of protection, but it is not a substitute for proper enclosure IP rating and anti-condensation heaters in high-humidity environments. Units stored in uncontrolled warehouses for extended periods should be inspected for corrosion on the backplane connector before installation.

EMI/RFI: The module includes an internal EMI filter on the AC input. In installations near large VFDs, welding equipment, or high-current switching loads, ensure the AC feed to the FA-M3 rack is on a dedicated circuit with proper grounding. Shared neutrals and ground loops are the most common source of unexplained PSU faults in electrically noisy environments.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected industrial cities on the coast. Here is exactly how your F3PU10-0N moves from our shelf to your site:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL Express or FedEx International Priority.
• Packaging: Anti-static bag, foam-lined carton, fragile labeling. The module arrives in the same condition it left our warehouse.
• Customs documentation: Commercial invoice, packing list, and HS code declaration prepared at dispatch. We have shipped to EU, Middle East, Southeast Asia, Australia, and the Americas — we know what customs needs.
• Transit times (typical): Southeast Asia 1–3 days | Middle East 3–5 days | Europe 3–5 days | Americas 4–6 days | Australia 3–5 days.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking via DHL or FedEx portal.
• Urgent freight: For critical shutdowns, contact us directly on WhatsApp before ordering — we can arrange same-day courier pickup and priority routing for time-critical shipments.

Every hour your line is down has a cost. We built our logistics process around that reality.
