YOKOGAWA KS1*B Recorder Signal Cable: Signal Integrity at the Core of Every Measurement Loop

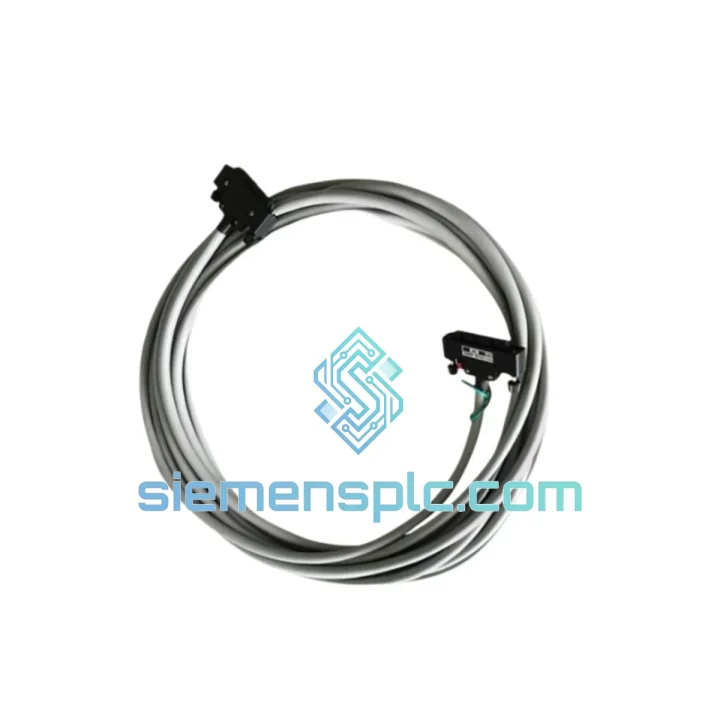

In process automation, the measurement loop is only as reliable as its weakest physical link. Between a field transmitter and a Yokogawa recorder, that link is the signal cable. A marginal conductor, an improperly shielded pair, or a connector with elevated contact resistance introduces noise, offset error, and — in worst-case scenarios — complete signal loss. The YOKOGAWA KS1*B Signal Cable is a factory-engineered accessory designed to eliminate these failure modes. It is not a generic cable adapted for recorder use; it is a purpose-built OEM component manufactured to Yokogawa’s internal electrical and mechanical tolerances, ensuring that the signal arriving at the recorder input terminal is a faithful representation of the process variable at the field device.

Yokogawa Electric Corporation, headquartered in Tokyo and operating globally across oil & gas, power generation, chemicals, pharmaceuticals, and water treatment, has built its instrumentation reputation on measurement accuracy and long-term reliability. The KS1*B reflects that engineering philosophy at the accessory level — a component that is often overlooked in system design but is operationally critical in continuous-process environments where signal fidelity directly affects control loop performance, alarm integrity, and regulatory compliance.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KS1*B is not a passive conductor assembly in the conventional sense. Its design addresses three distinct hardware-level challenges that arise in industrial recorder installations:

1. Electromagnetic Compatibility (EMC) and Shield Termination Architecture
In a typical process plant, signal cables run parallel to power cables, variable-frequency drives, and high-current switching equipment — all of which generate broadband electromagnetic interference. The KS1*B employs a shielding architecture that is terminated at a single defined point (typically the recorder chassis ground), preventing ground loop formation while maintaining effective EMI attenuation. This single-point grounding topology is consistent with IEC 61000-5-2 shielding practice and ensures that common-mode noise induced on the cable jacket does not appear as differential-mode error at the recorder input amplifier.

2. Connector Contact Resistance and Thermoelectric EMF Control
For low-level signal applications — particularly thermocouple inputs where the signal amplitude may be in the range of 5–50 mV — connector contact resistance and thermoelectric EMF at dissimilar metal junctions are measurable error sources. Yokogawa’s OEM connector design for the KS1*B specifies contact materials and plating that minimize both contact resistance (typically <10 mΩ) and thermoelectric EMF generation at the junction, preserving measurement accuracy at the microvolt level.

3. Mechanical Retention and Vibration Resistance
In environments subject to mechanical vibration — compressor rooms, turbine halls, pump stations — intermittent connector contact is a common root cause of spurious alarms and data gaps in recorder logs. The KS1*B connector geometry is designed with positive mechanical retention, ensuring that vibration-induced micro-disconnections do not occur under normal industrial operating conditions. This is particularly relevant for safety-instrumented loop applications where signal continuity is a functional safety requirement.

System Integration Benefits

Integrating the YOKOGAWA KS1*B into a recorder-based measurement system delivers the following verified operational advantages:

• Zero Adaptation Overhead: The KS1*B is dimensionally and electrically matched to Yokogawa recorder input terminals. No field modification, pin remapping, or adapter hardware is required, eliminating a common source of installation error.
• Deterministic Signal Latency: OEM cable construction ensures that signal propagation characteristics are consistent with Yokogawa’s recorder input circuit design, supporting the recorder’s rated scan cycle accuracy without introducing additional RC time constants.
• Diagnostic Transparency: Yokogawa recorders with built-in input diagnostics (open-circuit detection, burnout detection) function correctly only when the connected cable presents the expected impedance profile. The KS1*B maintains this profile, ensuring that recorder self-diagnostics operate as designed.
• Reduced Noise Floor: Proper shield termination and conductor geometry reduce the noise floor at the recorder input, improving the effective resolution of the measurement — particularly relevant for 4–20 mA loops operating near the low end of the signal range.
• Compliance with Yokogawa System Documentation: Using OEM accessories ensures that the installed system matches the as-designed configuration documented in Yokogawa engineering drawings, simplifying audit trails for ISO 9001, IEC 61511, and FDA 21 CFR Part 11 compliance.
• Reduced MTTR (Mean Time to Repair): In a fault condition, a technician replacing a known OEM cable can restore the loop to its original specification without re-characterizing the signal path. This reduces mean time to repair and minimizes production loss during unplanned maintenance events.
• Long-Term Spare Parts Availability: Stocking genuine Yokogawa accessories ensures that replacement parts are available for the operational life of the recorder installation, avoiding the risk of obsolescence-driven substitution with non-equivalent components.
• Interoperability with Yokogawa SCADA and DCS Integration: In systems where Yokogawa recorders feed data to a DCS or SCADA layer (e.g., via Modbus or HART), signal integrity at the recorder input directly affects the quality of data propagated upstream. The KS1*B ensures that the recorder receives a clean signal, supporting accurate data acquisition at the system level.

Quality Assurance & Global Logistics

Every YOKOGAWA KS1*B unit supplied through siemensplc.com is sourced from verified supply channels with full traceability to Yokogawa’s authorized distribution network. Our procurement process excludes grey-market and counterfeit sources; each unit is inspected upon receipt for physical integrity, correct OEM labeling, and packaging condition before being entered into our inventory system.

Prior to dispatch, each order undergoes a pre-shipment verification check: part number confirmation against purchase order, visual inspection, and repackaging in anti-static, moisture-resistant materials appropriate for international air freight. A 12-month warranty from the date of shipment covers manufacturing defects and is backed by our technical support team.

Logistics operations are managed from Xiamen, China — a major international trade hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated freight services. Standard international delivery times range from 3–7 business days for express shipments to major industrial centers in Europe, North America, Southeast Asia, and the Middle East. For time-critical plant shutdowns or emergency procurement, same-day dispatch is available for in-stock items confirmed before 14:00 CST. All shipments include tracking, commercial invoice, and packing list documentation suitable for customs clearance.
