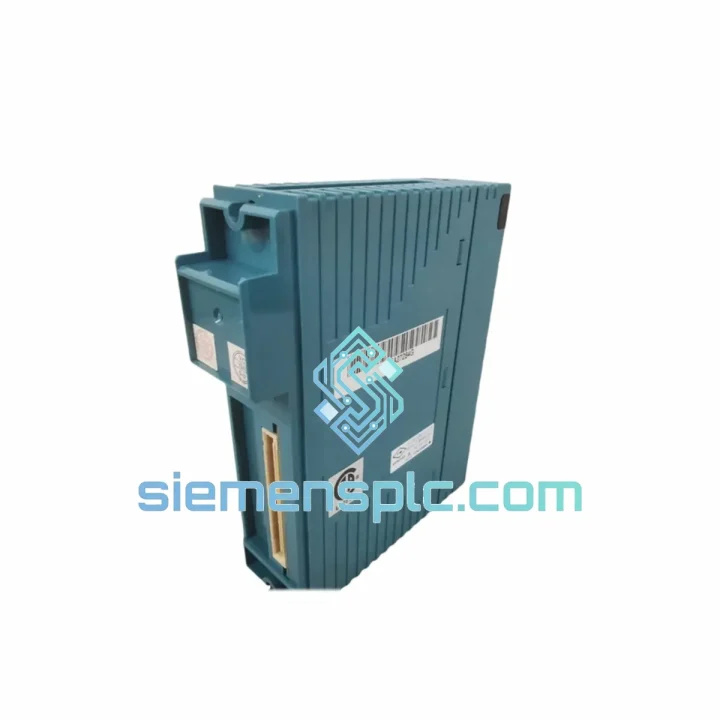

YOKOGAWA NFDR541-P00-S2 Relay Output Module

NFDR541-P00-S2 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your STARDOM FCN line just tripped. The HMI is screaming fault on the relay output card. Maintenance is standing by. Your production manager is already on the phone. You don’t have time for a 6-week OEM lead time or a distributor who needs to “check stock.” You need the YOKOGAWA NFDR541-P00-S2 in your hands — now.

We stock the NFDR541-P00-S2 in Xiamen and ship same-day via DHL Express or FedEx International Priority. From our warehouse to your plant floor, most destinations in Asia, Europe, and the Americas receive delivery within 3–5 business days. No minimum order. No bureaucratic RFQ cycle. One email and it moves.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on STARDOM FCN systems, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Fault Indicators for NFDR541-P00-S2:

• DO channel stuck ON/OFF: Relay coil failure or contact welding from inductive load switching without proper arc suppression. Check field wiring for snubber circuits before installing the replacement — a missing RC snubber will kill the new module’s relay contacts within weeks.
• Module LED flashing red / ERR lit: Typically a backplane communication fault. Before condemning the NFDR541-P00-S2, reseat the module firmly — FCN backplane connectors are susceptible to micro-fretting corrosion in high-vibration environments. Clean the gold fingers with IPA if the chassis has been in service more than 3 years.
• Partial channel failure (e.g., channels 9–16 dead): Internal relay driver IC failure, often caused by sustained overcurrent. Audit field loads against the 2 A per channel rating. Motor starters with high inrush are a common culprit — verify that interposing relays are in place for loads above 1.5 A.
• FCN controller reports I/O bus timeout on DO slot: Power budget issue. Calculate total FCN chassis power draw — adding a high-density relay module to a near-capacity chassis can cause intermittent bus resets. Check the FCN power supply module output under load.

Step-by-Step Hot-Swap Replacement Procedure:

1. Confirm hot-swap authorization: STARDOM FCN supports online I/O replacement, but verify with your site SOP and process safety plan before pulling a live module. For SIL-rated loops, a bypass must be in place.
2. Document current relay states: Screenshot or print the FCN I/O diagnostic screen. Note which channels are energized — you’ll need this to verify correct restoration after swap.
3. Inhibit outputs in the controller: Force all 16 DO channels to de-energized state via the FCN engineering tool before physical removal. This prevents unintended field device actuation during the swap.
4. Remove field wiring connector: The NFDR541-P00-S2 uses a plug-in terminal block. Disconnect the field wiring connector first — do not pull the module with live field wiring attached to the backplane connector.
5. Extract the module: Press the ejector levers simultaneously and slide the module straight out. Avoid rocking — the FCN backplane connector is a high-density 96-pin DIN type that can bend pins if extracted at an angle.
6. Inspect the slot: Check the backplane connector for bent pins, corrosion, or debris before inserting the replacement. A bent pin on the backplane is a chassis-level repair — far more expensive than the module.
7. Insert NFDR541-P00-S2 replacement: Align the module guide rails and slide in until both ejector levers click. The FCN controller should auto-detect the module within one scan cycle — no address switches or DIP settings are required on this module. The STARDOM FCN performs automatic slot addressing via the backplane.
8. Reconnect field wiring: Plug the terminal block back in. Verify terminal torque if any wires were disturbed (typically 0.5–0.6 N·m for M3 screws).
9. Release output inhibit and verify: Remove the forced inhibit in the FCN engineering tool. Confirm each channel state matches your pre-swap documentation. Perform a functional test of critical field devices before returning the loop to automatic control.
10. Firmware note: The NFDR541-P00-S2 carries embedded firmware that is managed by the FCN controller. No separate firmware download is required. If the FCN reports a firmware mismatch after insertion, update the FCN controller firmware to the version compatible with the S2 revision — refer to YOKOGAWA TI 34P02Q10-01E for revision compatibility tables.

Reliability in Harsh Conditions

The NFDR541-P00-S2 is not a commercial-grade relay card. It is built to YOKOGAWA’s industrial-grade manufacturing standard, validated against the environmental stresses that destroy lesser hardware:

Vibration: The module’s PCB assembly is conformal-coated and mechanically secured to withstand continuous vibration profiles consistent with IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random). In compressor stations and pump skids where structural vibration is constant, the NFDR541-P00-S2 maintains contact integrity without relay chatter — a failure mode common in cheaper relay output cards with inadequate mechanical relay mounting.

Thermal Cycling: Industrial plants cycle between cold morning startups and peak operating temperatures. The NFDR541-P00-S2’s 0 °C to +55 °C operating range covers the majority of indoor industrial environments, and its PCB materials are selected for low thermal expansion mismatch to prevent solder joint fatigue over thousands of thermal cycles. In high-ambient installations (e.g., tropical climates, non-air-conditioned MCC rooms), ensure the FCN cabinet maintains airflow within the rated envelope.

Humidity and Condensation: Coastal plants, offshore platforms, and tropical facilities push humidity to the limits of electronics. The NFDR541-P00-S2 is rated to 95% RH non-condensing. The conformal coating on the PCB provides a barrier against moisture ingress that causes the dendritic growth and leakage currents responsible for phantom relay actuation — one of the most difficult faults to diagnose in the field. If your installation is subject to condensation events (e.g., cold module inserted into a warm humid cabinet), allow the module to thermally equilibrate before powering up.

EMI/RFI: Relay output modules sit at the boundary between the control system and the field — exactly where EMI is worst. The NFDR541-P00-S2’s galvanic isolation architecture breaks the ground loop path between field wiring and the FCN backplane, preventing conducted EMI from corrupting controller operation. In plants with VFDs, large motor starters, or arc welding equipment nearby, this isolation is not optional — it is the difference between a stable control system and one that trips on every motor start.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible access to DHL Express and FedEx International Priority services for emergency industrial shipments.

How your emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The NFDR541-P00-S2 is packed, labeled, and handed to the courier the same afternoon.
• Packaging: Anti-static bag → foam-lined inner box → double-wall export carton. Meets ISTA 2A transport testing requirements. The module arrives in the same condition it left our shelf.
• Documentation: Commercial invoice, packing list, and country of origin certificate prepared same day. For customers requiring FORM E (ASEAN) or other preferential origin certificates, advise at time of order.
• Customs clearance: HS Code 8537.10 (industrial control panels/modules). We declare accurate values — no under-declaration that creates customs holds and delays your delivery.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time DHL/FedEx tracking link provided. For critical shipments, we monitor the tracking proactively and alert you to any customs holds before you need to ask.
• Typical transit times: Southeast Asia 1–2 days | East Asia 2–3 days | Middle East / Europe 3–5 days | Americas 4–6 days | Africa / South Asia 4–7 days.
• Emergency freight options: For absolute critical situations, we can arrange next-flight-out courier service. Contact us directly on WhatsApp for real-time freight options.

We have shipped YOKOGAWA STARDOM modules to refineries in Saudi Arabia, chemical plants in Germany, power stations in Vietnam, and paper mills in Brazil. The logistics process is proven. Your downtime clock stops the moment you confirm the order.
