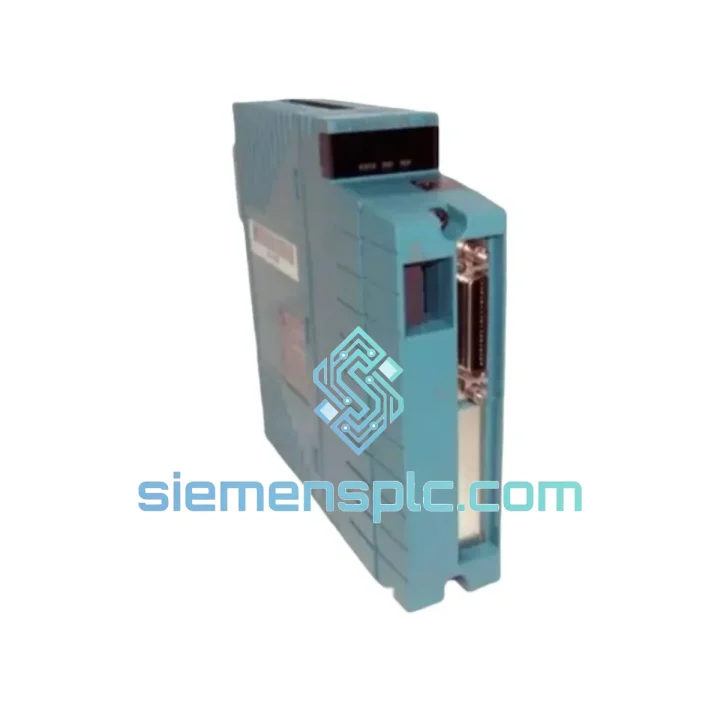

YOKOGAWA NFTB5S-00 S2 Terminal Block

YOKOGAWA NFTB5S-00 S2 — Stop the Bleed: Get Your STARDOM FCN/FCJ Back Online Before the Next Shift

It’s 02:17. Your DCS alarm console is lit up like a Christmas tree. One STARDOM FCN I/O rack has gone dark — field wiring continuity lost across an entire marshalling strip. The culprit: a failed pressure-clamp terminal block. Every minute offline is burning through your production budget. You don’t need a lecture on spring-cage theory. You need the YOKOGAWA NFTB5S-00 S2 on your bench by tomorrow morning, tested and ready to drop in.

That’s exactly what siemensplc.com delivers. We stock the NFTB5S-00 S2 in Xiamen and ship globally via DHL Express and FedEx Priority. Most orders clear customs and land at your facility within 3–5 business days — often faster for Southeast Asia, the Middle East, and Europe. No waiting on OEM lead times. No minimum order quantity. One piece ships the same day you confirm.

The NFTB5S-00 S2 is the designated field-wiring termination block for YOKOGAWA’s STARDOM FCN and FCJ autonomous controller I/O modules. Its 5 mm pitch spring-cage mechanism delivers consistent, vibration-proof contact force without periodic re-torquing — a critical advantage in rotating-equipment environments where screw terminals loosen over time. If your plant runs STARDOM and you don’t have at least two of these on the shelf, you’re one bad connection away from an unplanned outage.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Scenario 1 — Intermittent AI/DI Channel Loss: If a STARDOM FCN analog or digital input channel drops out intermittently under vibration, suspect the NFTB5S-00 S2 before pulling the I/O module. Spring-cage contacts can fatigue after 8–10 years in high-vibration environments (compressor skids, pump stations). Swap the terminal block first — it’s a 15-minute job versus a 2-hour module swap with reconfiguration.

Fault Scenario 2 — High-Resistance Connection / Signal Drift: Oxidized or contaminated spring contacts cause resistance creep, which shows up as unexplained 4–20 mA signal drift on analog inputs. If your HART diagnostics show clean loop current but the DCS reads off-scale, check the terminal block contact resistance with a milliohm meter. Anything above 5 mΩ per contact is a red flag — replace the block.

Replacement Procedure (Field-Verified Steps):

1. Place the affected FCN I/O module in Maintenance Mode via FAST/TOOLS or the FCN web interface to suppress alarms before disconnecting field wiring.
2. Label every wire with a cable marker before removal — the NFTB5S-00 S2 carries up to 16 field connections per block and mis-wiring on reinstatement is a common secondary fault.
3. Release spring-cage contacts using a 2.5 mm flat-blade screwdriver inserted into the actuation slot. Do not use a pointed tool — it deforms the cage and prevents proper re-clamping.
4. Slide the old terminal block off the I/O module connector rail. Inspect the module-side connector pins for corrosion or mechanical damage before fitting the new block.
5. Seat the new NFTB5S-00 S2 firmly until you hear/feel the latch click. Partial seating causes intermittent contact — the most frustrating fault to diagnose remotely.
6. Re-terminate field wires in order. Verify each spring-cage is fully closed by gently tugging the wire — it should not pull free under 20 N of force.
7. Return the module to Online Mode and verify all channel readings against field instruments before releasing the loop to automatic control.

Configuration Note — No Address Setting Required: The NFTB5S-00 S2 is a passive wiring termination component. Unlike active I/O modules, it carries no firmware, no DIP switch addressing, and no configuration parameters. Replacement is purely mechanical — no FAST/TOOLS reconfiguration is needed after a like-for-like swap. However, if you are replacing a damaged I/O module at the same time, ensure the new module’s slot address matches the original in the FCN configuration file before going online.

Reliability in Harsh Conditions

The NFTB5S-00 S2 was not designed for a climate-controlled server room. It was built for the marshalling cabinets of offshore platforms, desert gas compression stations, and tropical chemical plants where ambient temperatures swing from −10 °C to +60 °C, relative humidity hits 95% non-condensing, and cabinet panels vibrate continuously from nearby rotating machinery.

The spring-cage clamping mechanism maintains its rated contact force across this entire temperature range without operator intervention. Unlike screw-terminal blocks that require annual re-torquing schedules to prevent loose connections from thermal cycling, the NFTB5S-00 S2’s stainless-steel spring element compensates automatically for wire conductor expansion and contraction. In vibration testing per IEC 60068-2-6, spring-cage terminals of this class retain wire retention force at frequencies up to 150 Hz — the range that covers most pump and compressor-induced cabinet vibration.

The housing material resists UV degradation and common industrial solvents encountered during cabinet cleaning. Contact surfaces are tin-plated copper alloy, providing low initial contact resistance and long-term oxidation resistance in humid environments. For installations in coastal or offshore environments where salt-laden air accelerates corrosion, the spring-cage design’s self-wiping action during wire insertion helps break through thin oxide layers that would otherwise increase contact resistance over time.

When you are specifying spare parts for a 10-year maintenance contract on a STARDOM FCN installation, the NFTB5S-00 S2 belongs on your critical-spare list alongside the I/O modules themselves. A failed terminal block that grounds an entire I/O rack costs far more in downtime than the component itself.

Global Express Logistics

Our Xiamen warehouse operates Monday through Saturday with same-day dispatch cutoff at 16:00 CST for confirmed orders. Here is what the logistics chain looks like from the moment you confirm your purchase order:

Day 0 — Order Confirmation: Your PO is received, stock is physically pulled and inspected, and export documentation (commercial invoice, packing list, certificate of origin) is prepared. Anti-static packaging with moisture barrier is applied.

Day 1 — Customs Clearance & Handover: Shipment is handed to DHL Express or FedEx International Priority at Xiamen Gaoqi International Airport. Export customs declaration is filed under HS Code 8538.90 (parts for electrical switchgear). No dual-use restrictions apply to this component.

Days 2–5 — In-Transit: Typical transit times from Xiamen: Southeast Asia 2–3 days, Middle East 3–4 days, Europe 4–5 days, North America 4–5 days, Australia 3–4 days. A tracking number is sent to your email within 2 hours of handover.

Day 3–5 — Delivery: DHL and FedEx both offer door-to-door delivery with import customs clearance included in the express service. For destinations requiring formal import entry, we provide a detailed commercial invoice with accurate HS codes and declared values to prevent customs delays.

For genuine emergency situations — plant down, production stopped — contact us directly on WhatsApp at +86 18359268345. We can arrange priority picking, after-hours dispatch, and direct coordination with the courier for earliest possible delivery slot.
