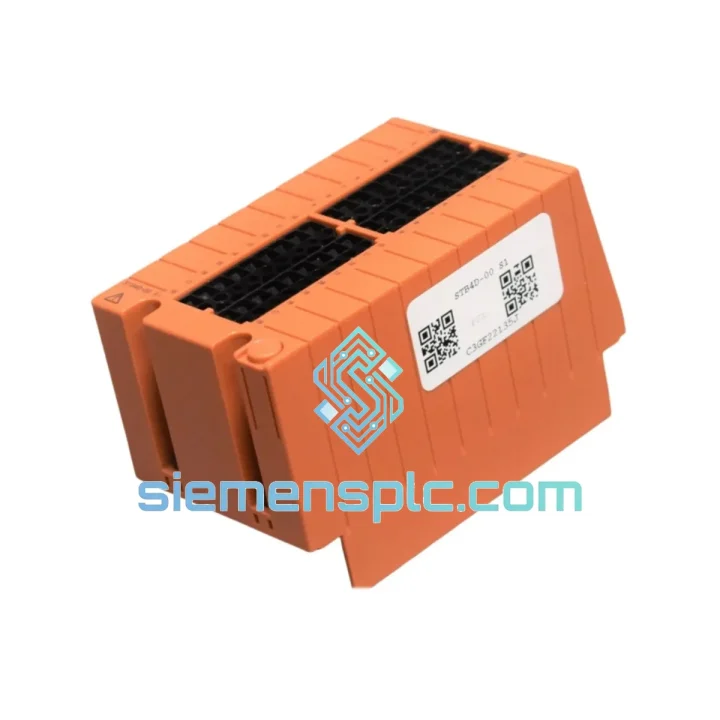

Yokogawa STB4D-00 S1 Spring-Clamp Terminal Block — Field Wiring Interface for STARDOM SCU I/O Marshalling

Within a distributed process control architecture, the terminal block is not a passive connector — it is the electromechanical boundary between field instrumentation and the controller’s I/O subsystem. Any degradation at this interface, whether from contact oxidation, vibration-induced micro-arcing, or thermal-cycle fatigue on screw-type connections, directly corrupts the signal chain. The Yokogawa STB4D-00 S1 addresses this structural vulnerability through a spring-pressure clamping mechanism that applies a defined, constant contact force independent of operator torque variability or long-term mechanical creep.

The STB4D-00 S1 is a purpose-built field-wiring accessory within Yokogawa’s STARDOM SCU (Station Control Unit) platform — an IEC 61131-3 compliant distributed control system deployed across oil & gas, water treatment, power generation, and chemical processing sectors. In the STARDOM architecture, the SCU functions as a standalone or networked field controller, and its I/O modules depend on the terminal block layer to receive clean, stable analog and discrete signals from transmitters, actuators, and switches. The STB4D-00 S1 occupies this critical marshalling position, providing the physical and electrical interface between multi-conductor field cables and the SCU’s I/O module backplane.

Spring-pressure clamping technology, as implemented in the STB4D-00 S1, operates on a fundamentally different contact physics model compared to screw-type terminals. A calibrated stainless-steel spring element maintains a defined clamping force — typically in the range of 40–80 N depending on wire cross-section — across the full operating temperature range. This eliminates the contact resistance drift that occurs in screw terminals when the conductor’s copper strands cold-flow under sustained compressive load. For analog input channels carrying 4–20 mA signals, even a 0.1 Ω increase in loop resistance can introduce measurable measurement error; the STB4D-00 S1’s spring mechanism prevents this degradation over the installation’s service life.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The STB4D-00 S1’s spring-clamp contact architecture provides several measurable hardware-level advantages over conventional screw-terminal designs used in legacy marshalling panels:

Contact Force Stability Under Thermal Cycling: Industrial control panels in outdoor enclosures or process buildings experience diurnal temperature swings of 30–50°C. Screw terminals rely on the friction between the screw thread and terminal body to maintain clamping force; thermal expansion differentials between the copper conductor, steel screw, and thermoplastic housing cause progressive torque relaxation. The STB4D-00 S1’s spring element compensates for this dimensional change dynamically, maintaining contact pressure within a defined band regardless of thermal excursion. This is particularly relevant for analog input loops where contact resistance stability directly affects measurement accuracy.

Vibration Immunity: In pump stations, compressor skids, and turbine control panels, mechanical vibration at frequencies of 10–150 Hz is continuous. Screw terminals in these environments require periodic re-torquing intervals as short as 6 months. The spring-clamp mechanism in the STB4D-00 S1 is inherently vibration-immune — the spring force is orthogonal to the vibration-induced loosening vector, and there is no threaded interface to back-drive. This eliminates a scheduled maintenance task and removes a failure mode from the reliability model.

EMC Considerations at the Terminal Interface: High-frequency electromagnetic interference couples into signal wiring through capacitive and inductive mechanisms. A high-resistance or intermittent terminal connection creates an impedance discontinuity that can act as a rectifying junction for RF interference, converting common-mode noise into differential-mode error on analog channels. The STB4D-00 S1’s consistent low-resistance connection maintains the signal loop’s impedance profile, reducing susceptibility to conducted EMI from variable-frequency drives, contactors, and switching power supplies operating in the same panel.

Tool-Free Actuation and Wiring Ergonomics: The spring-clamp mechanism is actuated by a standard flat-blade screwdriver or dedicated push-in tool inserted into the actuation port, deflecting the spring to open the conductor entry. This eliminates the torque-wrench dependency of screw terminals and reduces wiring time per point by approximately 40% in high-density marshalling applications. For a 200-point SCU marshalling panel, this represents a measurable reduction in commissioning labor hours.

System Integration Benefits

• Deterministic Signal Integrity: Constant spring-contact force maintains loop resistance within ±0.05 Ω over the product’s service life, preserving 4–20 mA and 1–5 V analog signal accuracy without periodic recalibration of the terminal interface.
• Zero Scheduled Maintenance on Terminal Layer: Eliminates the re-torquing maintenance cycle required by screw terminals, reducing planned downtime intervals and freeing maintenance resources for higher-value tasks.
• Native STARDOM SCU Compatibility: Validated by Yokogawa for direct integration with STARDOM SCU I/O module connectors — no adapter plates, no field modification, no compatibility risk during commissioning.
• High-Density Panel Layout Support: Compact terminal pitch allows marshalling of 200+ field points within standard 600 mm panel widths, supporting high-channel-count SCU configurations without requiring oversized enclosures.
• Reduced Commissioning Error Rate: Tool-free, single-action wire insertion with a visible conductor-seated indicator reduces wiring errors during panel build, lowering the probability of loop faults discovered during loop-check.
• Diagnostic Transparency: The open-frame spring-clamp design allows visual confirmation of conductor seating depth without disassembly, supporting rapid fault isolation during troubleshooting without disconnecting the loop.
• Mixed-Signal Panel Compatibility: Suitable for both analog (4–20 mA, thermocouple, RTD) and discrete (24 VDC, 120 VAC) field wiring within the same marshalling rail, reducing the number of terminal block part numbers required for a complete panel BOM.
• Long-Term Spare Parts Availability: As a Yokogawa-standard accessory within the STARDOM SCU ecosystem, the STB4D-00 S1 is supported across the full STARDOM platform lifecycle, ensuring spare parts availability for brownfield plant expansions and panel refurbishments.

Quality Assurance & Global Logistics

Every STB4D-00 S1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Physical inspection confirms housing integrity, spring-clamp actuation function, and contact surface condition. Part number markings and date codes are cross-referenced against Yokogawa’s published documentation to verify authenticity. Units sourced from surplus channels are additionally inspected for storage-induced contact oxidation and housing UV degradation before acceptance into inventory.

Packaging follows IEC 60068-2 transport conditioning guidelines: anti-static inner wrap, moisture-barrier outer bag with desiccant, and rigid outer carton rated for international air and sea freight handling. Each shipment includes a packing list, certificate of conformance, and — upon request — a certificate of origin for customs clearance in regulated import markets.

From Xiamen, we ship to industrial buyers across Southeast Asia, the Middle East, Europe, South America, and North America. Standard air freight transit times are 3–7 business days to most destinations. Sea freight consolidation is available for bulk orders. Export documentation — commercial invoice, packing list, HS code classification, and shipper’s export declaration — is prepared in compliance with Chinese customs regulations and destination-country import requirements. For orders requiring expedited delivery to support plant shutdowns or emergency maintenance, same-day dispatch is available for in-stock units confirmed before 14:00 CST.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and contact mechanism failure under normal operating conditions. Warranty claims are processed with a target response time of 2 business days.
