S7-300 CPU and Communication Spares: Evidence for Longer Service Life

Legacy SIMATIC S7-300 systems rarely fail in one neat category. A CPU fault may expose a missing communication processor, an unavailable PROFIBUS connector, an old memory card, or a project backup that has not been tested for years. Extending service life therefore depends on evidence, not only on finding a similar CPU.

SiemensPLC readers need a practical way to keep an installed S7-300 line supportable while migration is being planned, funded, or deferred. The most useful spare record connects the CPU, communication path, rack, memory, project backup, and acceptance procedure.

Build the S7-300 record around the rack

Capture CPU order number, firmware, rack position, power supply, communication processors, bus connectors, memory card, I/O family, and diagnostic behavior. The rack context helps separate an exact spare from a migration candidate.

The live SIMATIC S7-300 CPU reference and CP 343-1 communication processor reference are catalog examples that should be compared with the plant labels before an order is approved.

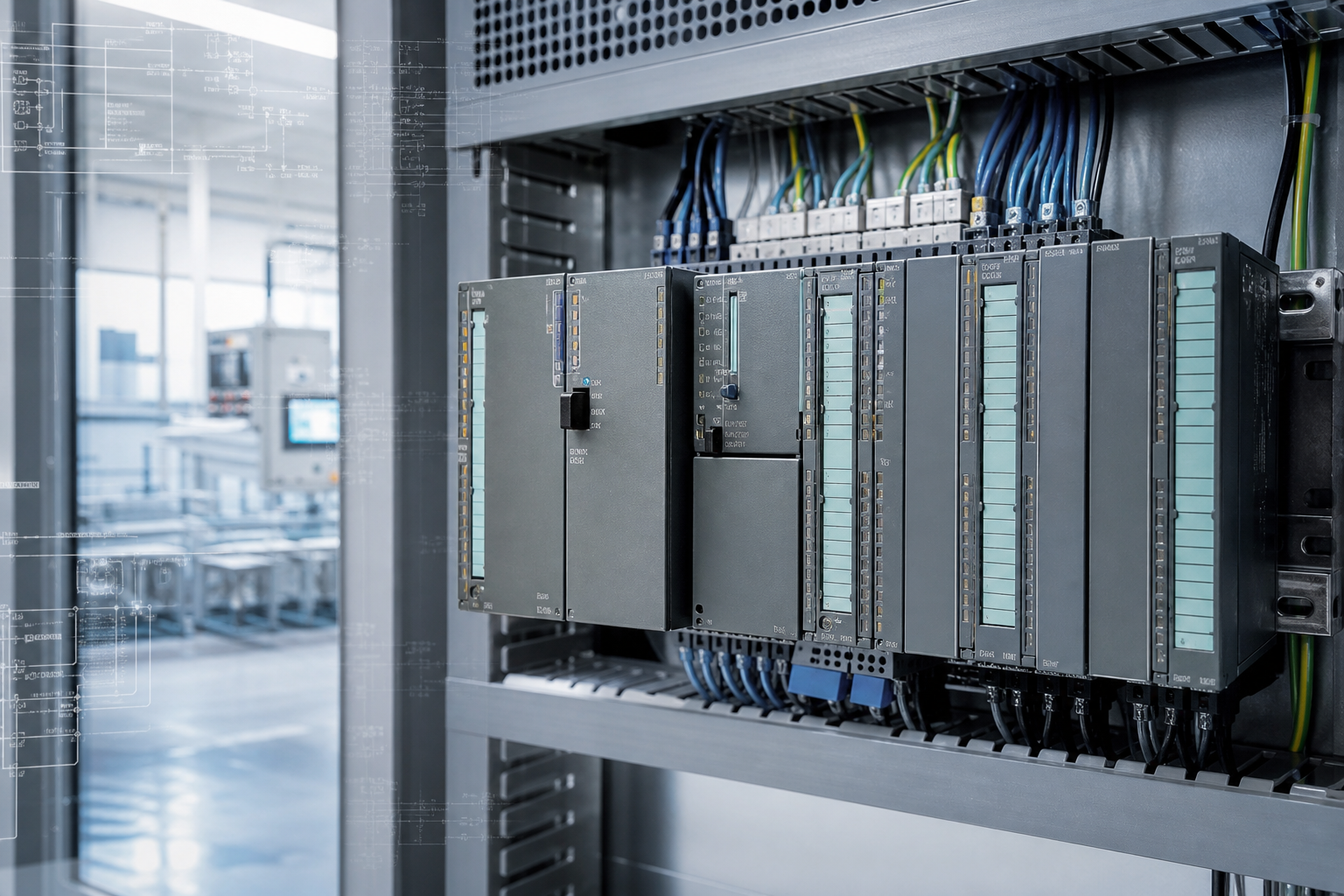

Photograph the CPU face and side label, rack layout, communication ports, connectors, status LEDs, power supply, and the cabinet identification. Save the project and hardware-configuration status separately from the product photo.

Treat the backup as part of the spare

A CPU without a current project, hardware configuration, network settings, and approved memory procedure may not restore the line. Record backup date, restore owner, software version, and whether the file has been tested.

For communication processors, document network role, connector type, addressing, protocol, and any external device mapping. A replacement that reaches RUN but leaves a remote station silent is not a complete recovery.

Separate exact replacement, tested exchange, possible substitute, and migration hardware. The purchasing path and engineering approval path should be visible in the same record.

Acceptance should prove the process

After replacement, verify rack recognition, CPU mode, diagnostics, program load, communication, representative I/O, alarms, operator visibility, and the approved restart sequence.

Mark the spare field-ready only after the relevant evidence is accepted. A powered CPU on a bench is useful information but not the same as a proven production spare.

Keep the label, backup reference, hardware configuration, communication notes, and final test record together. That file protects the plant when the installed system is older than the people who last commissioned it.

Build the RFQ around the installed function

A useful spare request begins with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop or blind the process. Then add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options may all be commercially useful, but they do not carry the same approval burden. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, or a production trial before it can be counted as recovery stock.

The product references in this article are live catalog examples, not permission to skip engineering checks. Compare the product page with the installed label and the plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control or protection function.

Keep the approved catalog and RFQ reference with the maintenance record, but do not let a catalog title replace the installed evidence. The useful record is the combination of model, function, interface, condition, test requirement, and decision owner. That combination remains valuable even when the next supplier uses a different description for the same hardware family.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is still physically present, that packaging and accessories are intact, that the backup or test procedure is available, and that the responsible engineer is still named. Small changes in wiring, software ownership, or cabinet layout can make an old spare conditional without anyone updating the shelf record.

When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it. This may include a drawing comparison, firmware review, bench test, dimensional check, secondary injection test, communication test, or production trial. A short approval checklist is easier to review than a vague statement that the substitute is equivalent.

The final decision should be visible to stores, procurement, maintenance, and operations. Use plain status labels such as exact replacement, approved substitute, repair exchange, bench-only, or engineering review required. Clear status prevents a useful but conditional item from being pulled as if it were already approved for a live plant function.

FAQ

What S7-300 details should be matched?

Match CPU order number, firmware, rack, power, memory, communication processors, connectors, I/O, and project requirements.

Is any S7-300 CPU a suitable replacement?

No. Hardware revision, firmware, memory, rack behavior, project, and communication requirements must be checked.

Why is the CP 343-1 record important?

The communication processor may carry the plant network path, so its protocol, addressing, firmware, and connector evidence affect recovery.

When is an S7-300 spare field-ready?

After the plant has accepted the hardware, backup, program, communication, I/O, alarm, and restart checks.
