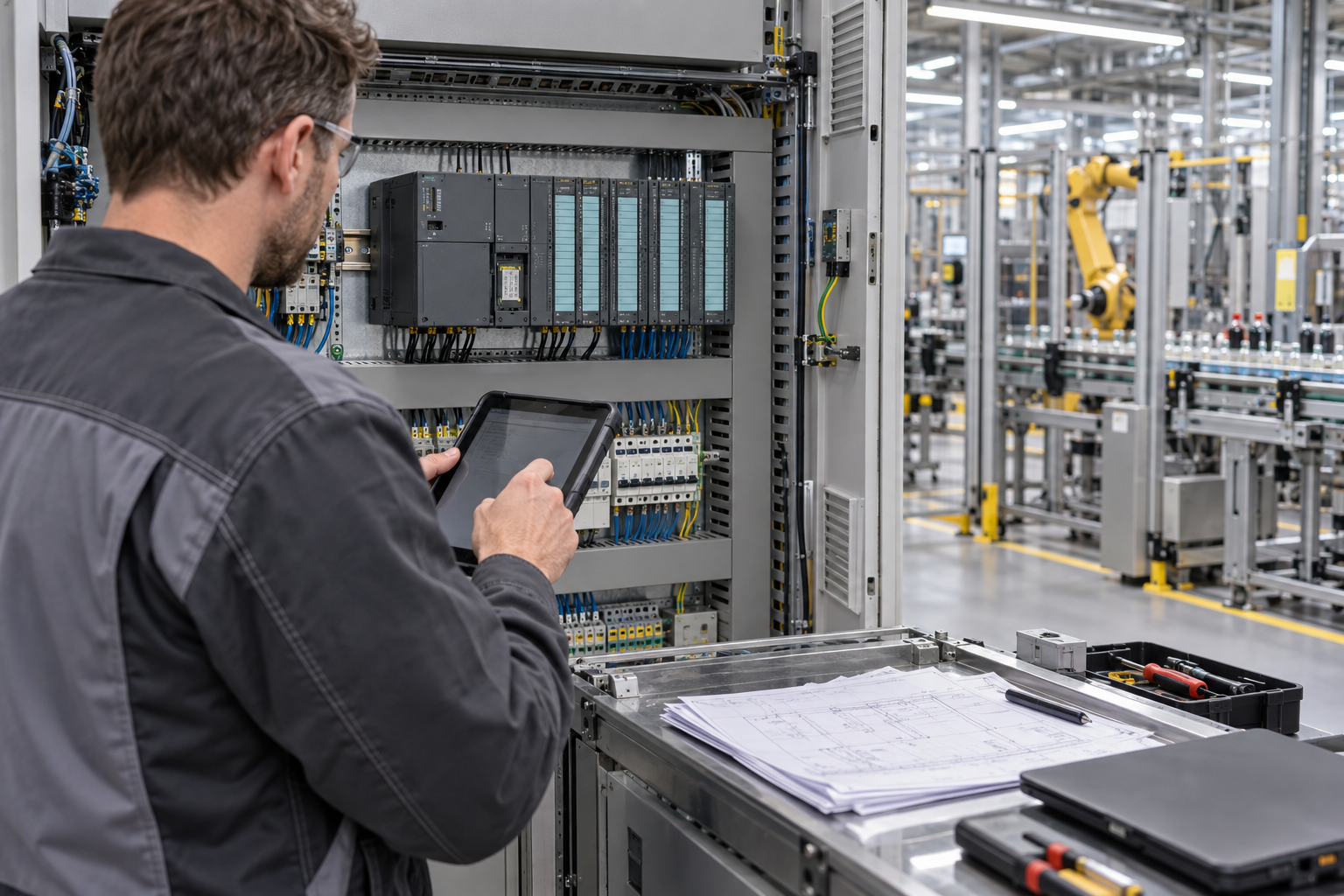

S7-300 Lifecycle Planning Checklist

A lifecycle project often starts with the assumption that a legacy PLC can be replaced by a newer CPU during one planned outage. The installed system usually contains more than a processor: memory media, signal modules, communication processors, distributed I/O, drives, operator panels, programming software, networks and undocumented interface behavior all affect the work. A migration inventory built from an old bill of materials can miss exactly the component that blocks restart. The first deliverable should therefore be an evidence-based map of what is actually installed, what still has a functioning spare path and what must be tested before cutover.

Survey the live rack and its dependencies

Capture each rack, power supply, CPU type and order code, hardware revision, memory card, signal module, communication processor, interface module, connector and occupied slot. Photograph labels and wiring before removing covers or disturbing equipment. Record rack configuration, spare slots, backplane or bus arrangement, station address, termination, network path and distributed I/O node identities. Extend the inventory outward to HMI panels, drives, safety interfaces, barcode readers, historians and third-party protocols. The Siemens 6ES7315-2EH14-0AB0 product listing is a published CPU reference, not a substitute for reading the installed code and checking its firmware, memory, communication and project constraints.

Recover the engineering baseline

Locate the current STEP 7 project, archived versions, hardware configuration, symbol tables, source blocks, password or access ownership, libraries, recipes, retentive data strategy and HMI project. Record software version, service packs, operating system and interface hardware used to connect. Compare the online system with the latest offline project and note mismatches, upload limitations and protected blocks. Preserve checksums or controlled exports according to site policy. A successful backup file is not necessarily a restorable backup; validate that engineering tools can open it and that essential dependencies are available without changing the running PLC.

The live site catalog includes Siemens 6ES7315-2EH14-0AB0 S7 CPU module as identification references for this equipment family. Verify the full installed configuration, ratings and revision before treating any catalog match as an approved replacement.

Map field behavior, not only module numbers

For every I/O channel, document signal type, range, scaling, wiring, field device, fail state, diagnostics and safety relevance. Identify high-speed counters, pulse outputs, analog values, interrupts, recipes, retentive memory and timing behavior that a newer platform may implement differently. Trace communication partners and protocol details, including baud rate, node address, telegram mapping, update interval, watchdog and restart behavior. Confirm what occurs when a device or network drops. A module number is only one part of the compatibility problem; terminal bases, connector position, field wiring and signal behavior may require redesign or staged conversion.

Prioritize by consequence and evidence gap

Rank assets by production consequence, failure history, repairability, recovery time, lead time, safety role and availability of verified spares. Separate items that can be held as maintenance spares from those that require redesign or software conversion. For each critical part, record exact identity, site quantity, installed quantity, spare condition, last test date and the evidence supporting interchangeability. Label uncertain matches as unresolved rather than allowing a supplier catalog description to become the engineering baseline. Define which lines can be piloted, which must retain rollback capability and what temporary support will exist during a phased transition.

Turn the survey into a migration gate

Before approving a shutdown, require a tested restore path, validated I/O mapping, communications tests, operator-screen checks, interlock and sequence tests, alarm verification, cutover roles, rollback criteria and management of change approvals. Run simulations or offline logic comparison where feasible, but retain live testing for behavior that cannot be represented in a bench environment. Confirm the proposed replacement CPU, memory and network interfaces match the project configuration and support policy. Freeze the accepted hardware list, firmware, software and spare strategy under revision control. A deliberate, documented inventory turns obsolescence from a surprise purchasing event into a controlled engineering program.

Plan coexistence rather than a single cutover date

Many plants must maintain production while migration work proceeds over multiple shutdowns. Identify which machine or area can serve as a pilot, how legacy and new controllers will exchange data, and who owns interface testing at each boundary. Check address plans, time synchronization, operator alarm routing, historian tags, remote access and spare coverage for both generations. Maintain a rollback window and preserve access to legacy engineering software until the old segment is formally retired. Update training and maintenance procedures so technicians can distinguish old and new hardware during an emergency. A staged plan is successful when every intermediate state has an owner, recoverable configuration and known spare path, not merely when the final architecture diagram looks complete.

Questions Maintenance Teams Ask

faq

Does a matching S7-300 CPU order number guarantee a drop-in replacement?

Can I migrate only the CPU and leave the I/O untouched?

Sometimes, but compatibility depends on rack, bus, signal modules, firmware, communications, software and timing. Verify the full installed configuration first.

What should be included in an S7-300 spare inventory?

Record complete order codes and revisions for CPU, memory, power, signal, communication and interface modules, plus firmware, project backup and installed locations.

How do I know a backup is usable?

Open it with the required engineering software, verify dependencies and compare it with the online baseline under approved controls. A file existing is not proof of restoration readiness.
