S7-400H Spares: Redundancy Module and Fiber Sync Checks Before Failover

An S7-400H system is bought for availability, but that availability depends on more than a spare CPU. Redundancy modules, fiber sync cables, firmware, memory, rack power, communication paths, and a controlled failover test decide whether the standby side is trustworthy.

SiemensPLC readers often support critical process and utility systems where S7-400H platforms remain in service while migration is being planned. A redundancy spare should protect today’s operation and strengthen tomorrow’s lifecycle case.

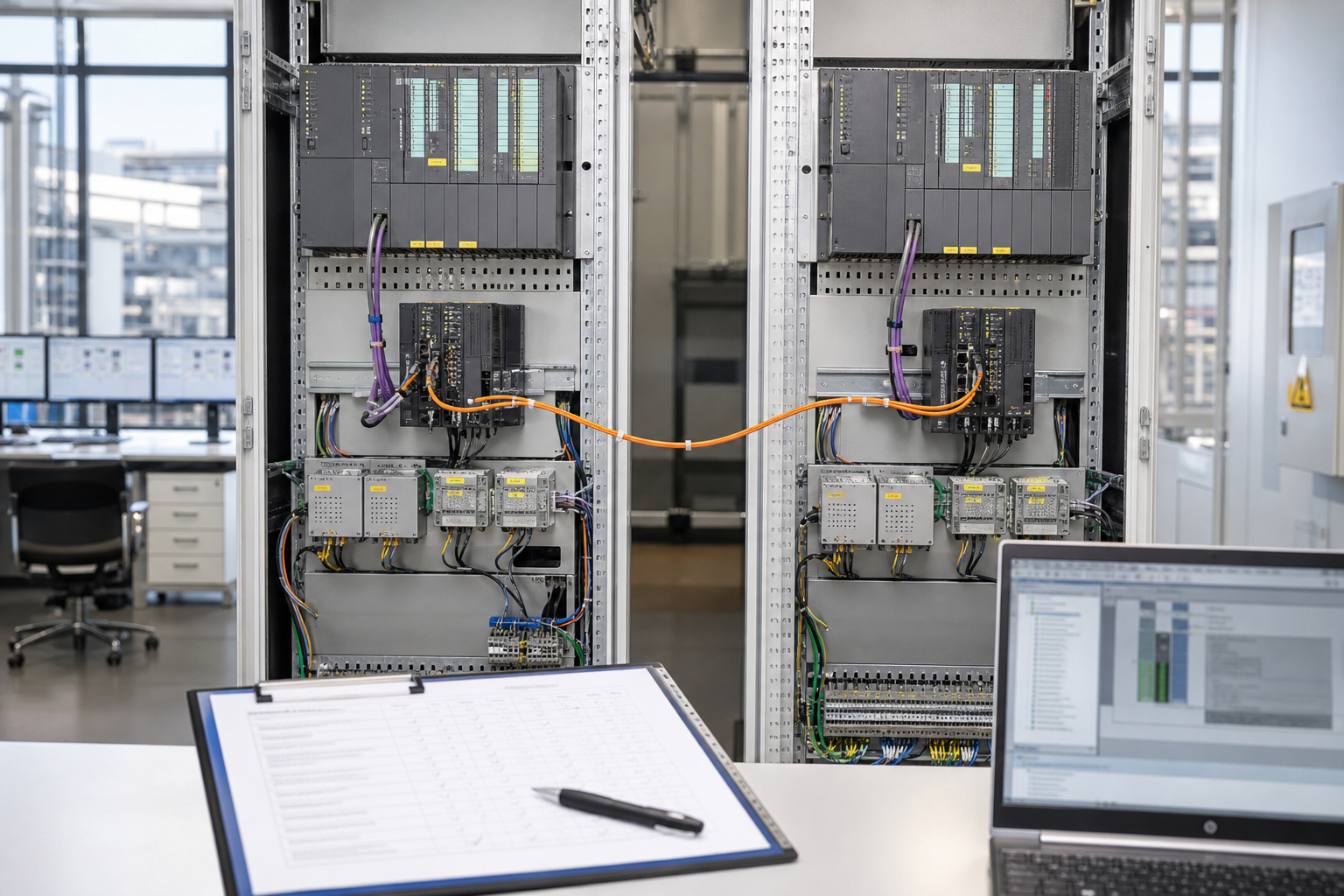

Define The Redundant Rack Pair

Record both rack identities, CPU order numbers, firmware, memory, power, communication processors, redundancy status, synchronization path, project backup, and the process consequence of failover loss.

The live Siemens 6ES7414-4HM14-0AB0 S7-400H CPU module is the product match when CPU redundancy is the main concern.

Photograph CPU labels, rack positions, LED state, memory cards, communication cables, and diagnostic buffers before replacement.

Fiber Sync Cables Are Critical Accessories

A correct CPU can still fail redundancy acceptance if the fiber sync cable, module seating, or synchronization path is weak.

The related Siemens 6ES7960-1AA04-5AA0 fiber optic sync cable belongs in the RFQ when failover reliability is at stake.

Ask suppliers for actual photos, condition, connector state, included accessories, tested status, and any firmware or compatibility notes.

Acceptance Should Include Failover Evidence

After replacement, verify both CPUs, synchronization state, diagnostic buffers, network communication, HMI/SCADA values, alarms, and approved failover testing.

If redundancy remains unhealthy, review fiber seating, rack power, firmware, memory, project hardware configuration, CP modules, and sync diagnostics.

Store rack photos, diagnostic captures, cable evidence, failover test notes, and engineering approval with the spare record.

Procurement Notes That Reduce Restart Risk

Send S7-400H CPU labels, rack photos, fiber sync evidence, firmware notes, backup status, condition requirement, and failover deadline.

An S7-400H RFQ should define whether the plant needs CPU hardware, sync cable, redundancy module, or a full rack-support package.

For substitutes, require review of firmware, memory, synchronization behavior, communication impact, and rollback path.

The useful spare request is a technical record, not just a purchasing message. It should prove the installed hardware identity, the function being restored, the accessories required for installation, the acceptable condition level, and the site test that will decide whether the item is fit for service.

Mature PLC, DCS, SIS, drive, and monitoring platforms often contain several nearly identical modules across one plant. Firmware, suffix, memory, terminal base, communication option, power rating, cable type, and rack position can all change the result. Treat the family name as the beginning of the investigation, not the end.

Actual-item photographs remain one of the strongest controls. Front labels, side labels, connector faces, terminal screws, handles, keying, memory devices, cable tags, and cabinet slot position often reveal details that catalog descriptions hide.

Condition language should be plain. Factory sealed, new surplus, refurbished, repaired exchange, tested used, and untested used parts are different risk categories. Ask what was tested, what accessories are included, and which checks remain the plant responsibility.

Before ordering, agree on who owns project loading, firmware review, parameter transfer, calibration, proof testing, communication checks, and final operating approval. The supplier can confirm hardware, but the plant still owns the installed function.

Receiving inspection should repeat the RFQ evidence. Compare the approved photos with the received item, check connector damage, confirm accessory scope, document packaging condition, and decide whether the item is ready for stores, bench testing, or immediate installation.

For urgent downtime, define the fallback before the purchase order is released. If the spare fails acceptance, the plant should know whether to reinstall the old unit, try a repaired exchange, isolate a noncritical function, or move directly into a migration path.

This discipline also helps long-term lifecycle planning. Scarce offers, weak test evidence, missing accessories, repeated substitutions, or long sourcing cycles are practical signals that support modernization planning without inventing unsupported claims.

Good RFQs do not slow the job down. They reduce vague follow-up questions and help suppliers respond with exact stock, tested condition, realistic dispatch timing, and clear limitations before the maintenance window is already open.

If the spare is bought for stores rather than immediate installation, still define inspection and future testing. A stored critical spare without evidence simply postpones the uncertainty to the next outage.

Keep the evidence with the spare record after recovery. The next engineer should be able to see why the item was accepted, what limitations remained, and how the plant proved the system was safe and ready to run.

For multi-site groups, use the same evidence structure across plants but do not assume the same answer. One site may accept a repaired exchange for stores, while another needs a like-for-like tested item because the function is tied to safety, generation, or continuous production.

Ask the receiving team to preserve labels and packaging until engineering completes the first inspection. If a connector is bent, a terminal is missing, or the delivered item does not match the approved photos, the issue should be raised before the part is placed into critical inventory.

The strongest teams also record what was not verified. If firmware, project loading, calibration, communication scheduling, or field proof testing remains open, write that clearly in the spare record so nobody mistakes hardware arrival for system readiness.

FAQ

What must match on an S7-400H spare?

Match CPU order number, firmware, rack role, memory, sync path, communication role, diagnostics, and test method.

Why include fiber sync cable evidence?

Because redundancy depends on synchronization hardware as much as the CPU module itself.

What should procurement send?

Send labels, rack photos, fiber cable evidence, firmware notes, backup status, and deadline.

What proves recovery?

Healthy synchronization, stable primary/standby state, good diagnostics, restored communication, and approved failover test.

Send SiemensPLC the S7-400H labels, rack photos, fiber sync evidence, firmware notes, and failover deadline. We can help prepare a redundancy-focused spare RFQ.
