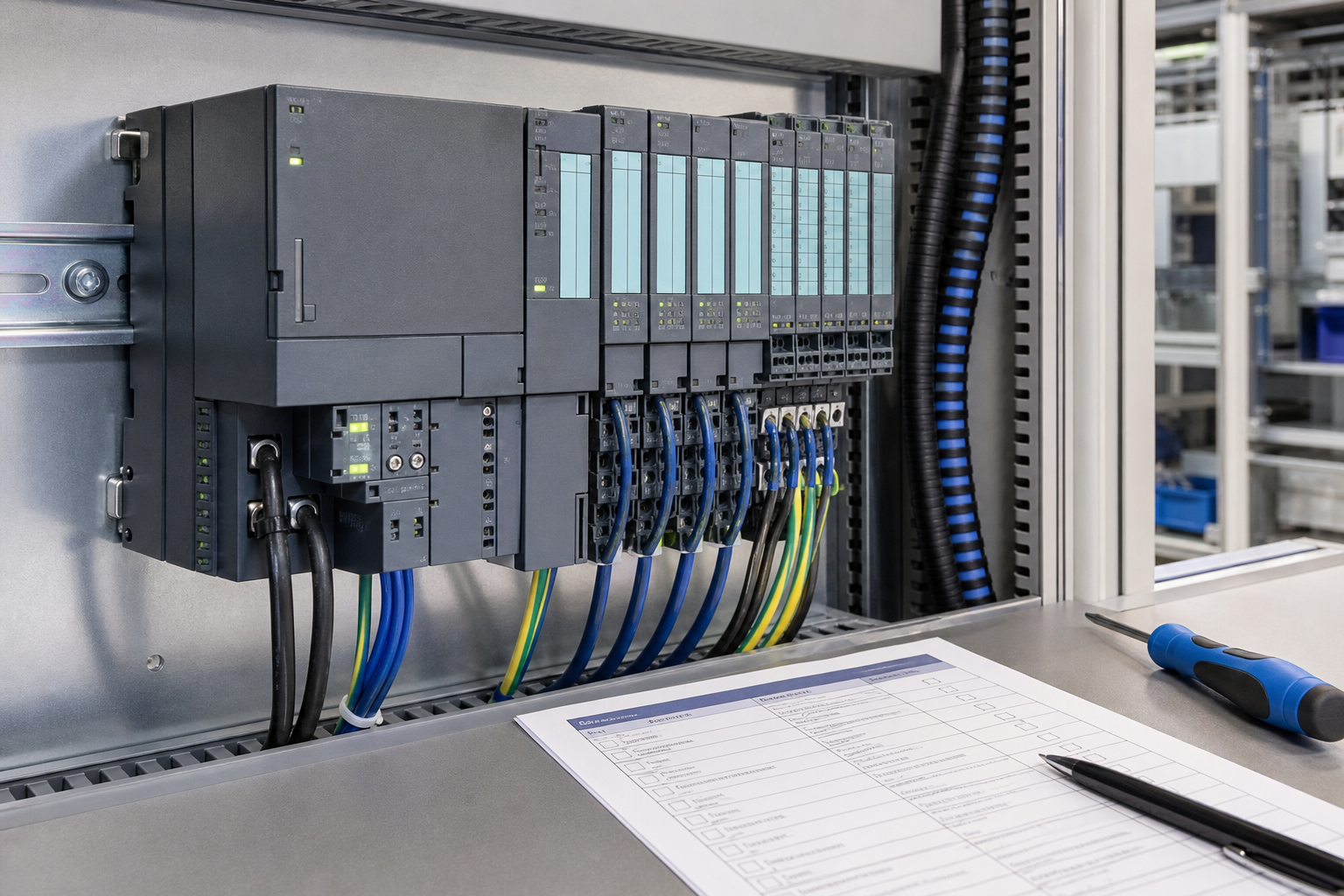

Siemens 6ES7138-4DF00-0AB0 Spares: ET200S Power Module Evidence Before a PLC Restart

A distributed I/O power module can make an entire ET200S station look dead even when the CPU and field wiring are healthy. The Siemens 6ES7138-4DF00-0AB0 must be matched to station layout, load, terminals, protection, wiring, diagnostics, and the PLC configuration before a restart is attempted.

SiemensPLC readers need a practical ET200S recovery record that focuses on the small power component often omitted from the critical-spares list. The correct module should be staged with its station and terminal evidence.

Map the ET200S station

Record station address, rack and slot, power module model, load, supply voltage, protection, terminal modules, I/O cards, network, diagnostics, wiring, and PLC project reference.

The live Siemens 6ES7138-4DF00-0AB0 reference is a product match for an RFQ. Compare the installed label, station layout, load, terminals, protection, and project record before approval.

Photograph power-module label, station rails, supply terminals, fuses, terminal modules, I/O cards, network connector, and cabinet context.

Do not treat power as a generic fuse problem

Confirm supply voltage, load current, protection, terminal compatibility, field wiring, station diagnostics, and the PLC project. A module can be electrically present while a wrong terminal or overloaded station still prevents a reliable restart.

The related ET200S terminal-module reference shows why the power module and terminal assembly must be checked as separate station dependencies.

Request exact, tested exchange, repair, substitute, and migration options separately, with actual-item photos, electrical test scope, accessories, warranty, and dispatch timing.

Acceptance must prove the remote station

After replacement, verify supply voltage, protection, station recognition, I/O diagnostics, network communication, field values, alarms, PLC sequence, and the approved restart test.

Mark the item exact, station test pending, bench-tested, substitute, or engineering review required.

Keep module and station labels, load calculation, wiring and protection evidence, diagnostics, PLC project reference, and final restart acceptance together.

Build the RFQ around the installed function

A useful spare request starts with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop, trip, blind, or slow the process. Add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options can all be commercially useful, but they carry different approval burdens. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, validation, or a production trial before it can be counted as recovery stock.

The live product references in this article are catalog matches, not permission to skip engineering checks. Compare every product page with the installed label and plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control, safety, motion, or protection function.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, packaging and accessories are intact, the backup or test procedure is available, and the responsible engineer is still named. When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it.

The most useful quotation response mirrors the plant record. It should state the exact model, actual condition, test scope, included hardware, lead time, warranty, and any unresolved compatibility question. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one heading.

Finally, define the acceptance owner before the part is ordered. Procurement can verify item identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, or reliability engineer can approve functional recovery.

A good record shows why the model was selected, which evidence was checked, what remained conditional, and how the installed function was accepted.

A good quotation should also state what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminals, incomplete accessories, and untested condition should remain open items rather than being hidden in a generic compatible statement.

Before the maintenance window, confirm the spare location, packaging, accessory scope, backup media, test equipment, and named decision owner today.

Record the final decision in the asset file with the installed model, product match, evidence reviewed, unresolved risks, test result, and approval date. This gives the next engineer a faster starting point and prevents procurement from repeating an uncertain model search today.

FAQ

What must match on a 6ES7138-4DF00-0AB0 spare?

Match ET200S station, supply role, voltage, load, protection, terminals, I/O layout, diagnostics, and PLC project.

Can another ET200S power module replace it?

Only after electrical rating, station position, terminals, load, wiring, and engineering approval are checked.

What should the RFQ include?

Send module and station labels, supply and fuse photos, load and project status, condition, test scope, and deadline.

What proves an ET200S restart?

Correct supply, protection, station recognition, I/O diagnostics, network, field values, alarms, and approved PLC testing.

Send SiemensPLC the ET200S power-module and station labels, supply and terminal photos, load information, project status, and deadline. We can help prepare a precise Siemens spare RFQ.
