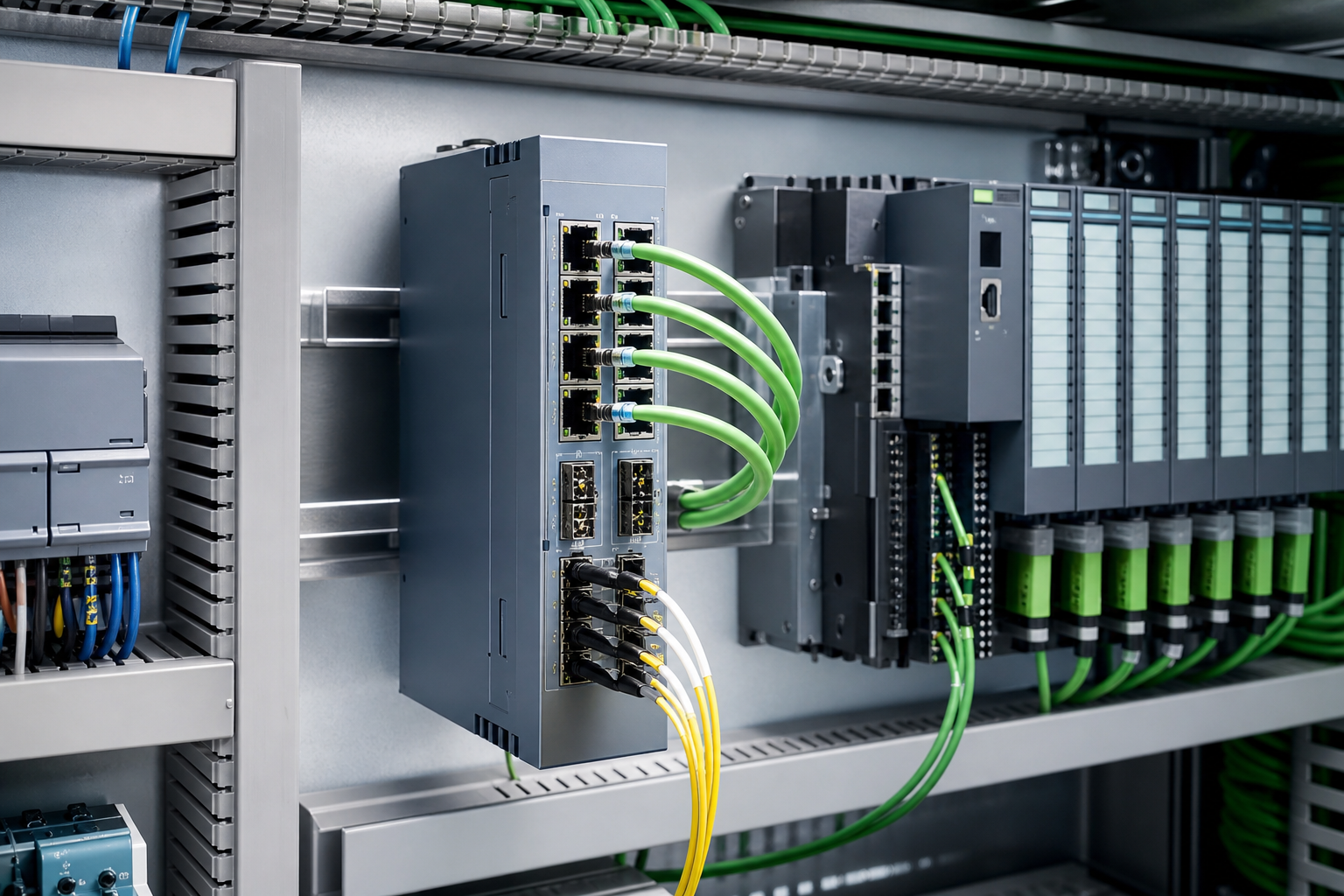

Siemens 6GK5108-0BA00-2AA3: Industrial Switch Spare Evidence Before Failure

An industrial Ethernet switch can fail without stopping every controller immediately. The first symptoms may be stale HMI data, a missing remote I/O segment, intermittent diagnostics, or a maintenance laptop that can no longer reach the right cabinet. The replacement decision depends on ports, power, topology, firmware, configuration, and the process role behind the network.

SiemensPLC readers need a network spare method that helps older OT systems remain recoverable while the plant evaluates modernization. The switch should be treated as part of a documented control path, not as a generic office-network appliance.

Record the switch topology

Capture model and suffix, port count and media, power, cabinet location, VLAN or segmentation role, ring or star topology, connected PLCs and I/O, firmware, configuration backup, and diagnostic behavior.

The live 6GK5108-0BA00-2AA3 reference is a product match for an RFQ. Compare it with the installed label, port media, power, topology, and configuration record.

Photograph switch label, ports, fiber or copper connectors, power terminals, cabinet position, adjacent devices, link LEDs, and network context without exposing credentials.

Separate the wired switch from wireless dependencies

A switch replacement may restore cabinet connectivity while a wireless access point, fiber path, managed configuration, or network segmentation rule remains unavailable. Record each dependency and its acceptance owner.

The related Siemens wireless access point reference shows why wireless coverage and wired switching should be treated as separate recovery paths.

For used or refurbished offers, request actual-item photos, firmware and configuration scope, port condition, test evidence, accessories, warranty, and dispatch timing.

Acceptance must prove the control path

After replacement, verify power, link status, port negotiation, managed configuration, VLAN or segmentation behavior, ring or redundancy, PLC and I/O reachability, diagnostics, alarms, and the approved process test.

Mark the item exact, configuration pending, bench-tested, substitute, or engineering review required.

Keep switch and cabinet labels, topology map, configuration backup, port evidence, diagnostics, and final acceptance record together.

Build the RFQ around the installed function

A useful spare request starts with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop, trip, blind, or slow the process. Add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options can all be commercially useful, but they carry different approval burdens. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, a validation, or a production trial before it can be counted as recovery stock.

The live product references in this article are catalog matches, not permission to skip engineering checks. Compare every product page with the installed label and plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control, safety, motion, or protection function.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, packaging and accessories are intact, the backup or test procedure is available, and the responsible engineer is still named. When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it.

The most useful quotation response mirrors the plant record. It should state the exact model, actual condition, test scope, included hardware, lead time, warranty, and any unresolved compatibility question. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one heading. Those options have different outage and approval consequences.

Maintenance teams should record the failure symptom and the point at which the system stopped being trusted. A communication loss, abnormal diagnostic, drifted measurement, failed safety channel, unstable speed, or network fault may identify a wider dependency than the failed-looking board. That context helps the supplier search the right family and helps engineering decide what must be tested after arrival.

Finally, define the acceptance owner before the part is ordered. Procurement can verify item identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, or reliability engineer can approve functional recovery. A named owner prevents a technically plausible spare from remaining on the shelf without a usable restoration path.

This discipline also improves the next audit: the plant can show why the model was selected, which evidence was checked, what remained conditional, and how the installed function was accepted.

FAQ

What must match on a 6GK5108 spare?

Match ports, media, power, cabinet role, topology, firmware, managed configuration, diagnostics, and connected control devices.

Can an office Ethernet switch replace it?

Not automatically. Industrial environment, power, ports, topology, configuration, and control requirements must be reviewed.

What should the RFQ include?

Send switch and cabinet labels, port and topology photos, configuration status, condition, test scope, and deadline.

What proves network recovery?

Power, links, port negotiation, managed settings, topology or redundancy, PLC and I/O reachability, diagnostics, and approved process test.
