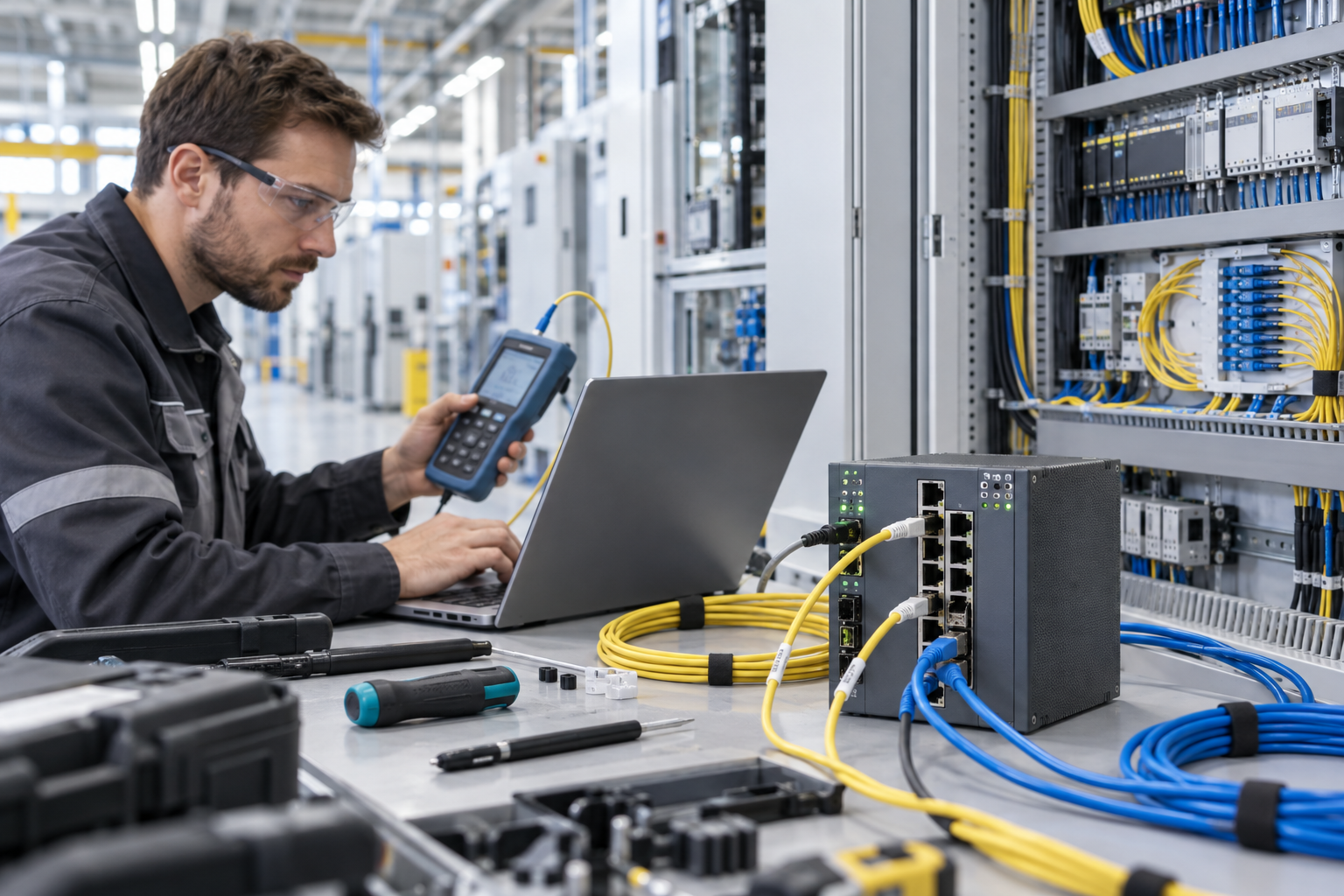

Siemens Industrial Ethernet Switch Replacement

An industrial switch replacement is often planned as a simple port-for-port exchange. That misses the behavior that makes a plant network dependable: topology, redundancy, VLAN membership, port speed and duplex, multicast handling, time services, diagnostics, firmware and the physical identity of each link. A replacement that powers up and passes a ping can still leave a ring open, an HMI isolated or a controller communicating through an unintended path.

Before selecting a Siemens 6GK switch, identify the exact role in the network and capture the running configuration. The site’s product catalog includes managed and industrial Ethernet switch models, but product-family similarity does not guarantee equivalent port count, media, power input, redundancy support or management behavior. Preserve the design intent, not merely the connector layout.

Build a port map from the live installation

Record switch model, order number, firmware, power supply, mounting, grounding and every occupied port. Label the connected device, cable type, far-end location, VLAN, speed, duplex, redundancy role and expected link state. Photograph LEDs while the process is operating normally. Identify uplinks, engineering access, controller ports, HMI connections, safety devices and any unmanaged downstream segment.

Check the network drawing against the cabinet and trace uncertain links with an approved method. A handwritten label may refer to an old asset name, and a spare port may carry a temporary connection added during an outage. Avoid disconnecting links to “see what happens” on a running control network; use configuration data, physical tracing and planned maintenance windows.

Export configuration and understand dependencies

Back up the current configuration and record how it is restored, including credentials and access method under site security policy. Capture VLANs, port descriptions, spanning-tree or ring settings, multicast controls, QoS, time synchronization, management address, SNMP or logging destinations, firmware and certificate dependencies. Store the backup with the switch asset and a date, not only on the engineer’s laptop.

Review which functions are essential for the control application. PROFINET device names and topology, redundant paths, HMI routes, engineering access and time-critical traffic may depend on explicit switch behavior. Confirm whether the existing design requires a manufacturer-specific ring protocol or managed redundancy feature. Do not assume that generic Ethernet link-up means the industrial protocol will recover correctly.

Check media, power and physical environment

Confirm copper versus fiber, connector type, wavelength, single-mode or multimode, distance, transceiver identity and fiber polarity. Inspect bend radius, contamination, patch-panel mapping and strain relief. For copper, confirm cable category, shielding, grounding and routing near motor power. Use an optical power meter or cable certifier where the approved method calls for it; visual inspection alone cannot confirm link margin.

Verify supply voltage, polarity, redundancy, fuse protection, cabinet temperature, airflow, vibration, ingress and grounding. A failed switch may have been damaged by a common power or environmental issue. The Siemens 6GK5108-0BA00-2AA3 Industrial Ethernet switch and Siemens 6GK5224-0BA00-2AA3 managed switch are separate catalog examples; verify their exact interface and application requirements before substitution.

Plan a controlled cutover and rollback

Prepare the replacement offline where possible: set management identity, restore approved configuration, update firmware only if the change plan requires it, and confirm port and media mapping. Record the original switch configuration and label each cable at both ends. Define who authorizes the cutover, expected interruption, rollback trigger, and method to return to the previous unit.

During the window, change one boundary at a time. Check link state, error counters, redundancy status, controller reachability, HMI data quality, time synchronization and alarms. Verify representative traffic in both directions and ensure engineering access remains controlled. Keep the old unit and its configuration available until operations accepts the restored network.

Prove application recovery, not only connectivity

After link recovery, check controller diagnostics, PROFINET device status, topology alarms, HMI updates, historian or supervisory feeds and application-specific communication. Confirm that multicast traffic is contained as intended and that no unexpected path creates a duplicate or loop. Compare error counters and latency to the pre-change baseline during representative process conditions.

Close the change with an updated network drawing, port map, configuration file, firmware record, switch serial and rollback status. Note any deviations and assign owners. This documentation is also the future spare specification: it turns “need an 8-port switch” into a requirements-backed request with media, power, management and protocol details.

Where the network supports ring or redundant-path recovery, test that behavior at the planned boundary and verify convergence against the project acceptance criteria. Check alarms for link flaps, duplicate addresses, topology changes and unexpected broadcast growth. Keep the baseline capture and post-change capture together so a later engineer can tell whether a slow degradation began before or after the hardware change.

Questions Maintenance Teams Ask

Can any industrial switch with the same number of ports replace the original?

No. Media, power, managed functions, redundancy, VLANs, environmental ratings and protocol behavior may differ even when the port count matches.

Is a successful ping enough to accept a switch replacement?

No. Verify topology, controller and HMI data, redundancy, alarms, time services, error counters and representative application traffic.

Should firmware be upgraded during a switch replacement?

Only when justified and approved in the change plan. Preserve the known-good configuration and confirm compatibility before changing firmware.

What should be in the spare-switch record?

Store the exact model and firmware, configuration, port map, media and transceiver details, power arrangement, network role and tested rollback procedure.
