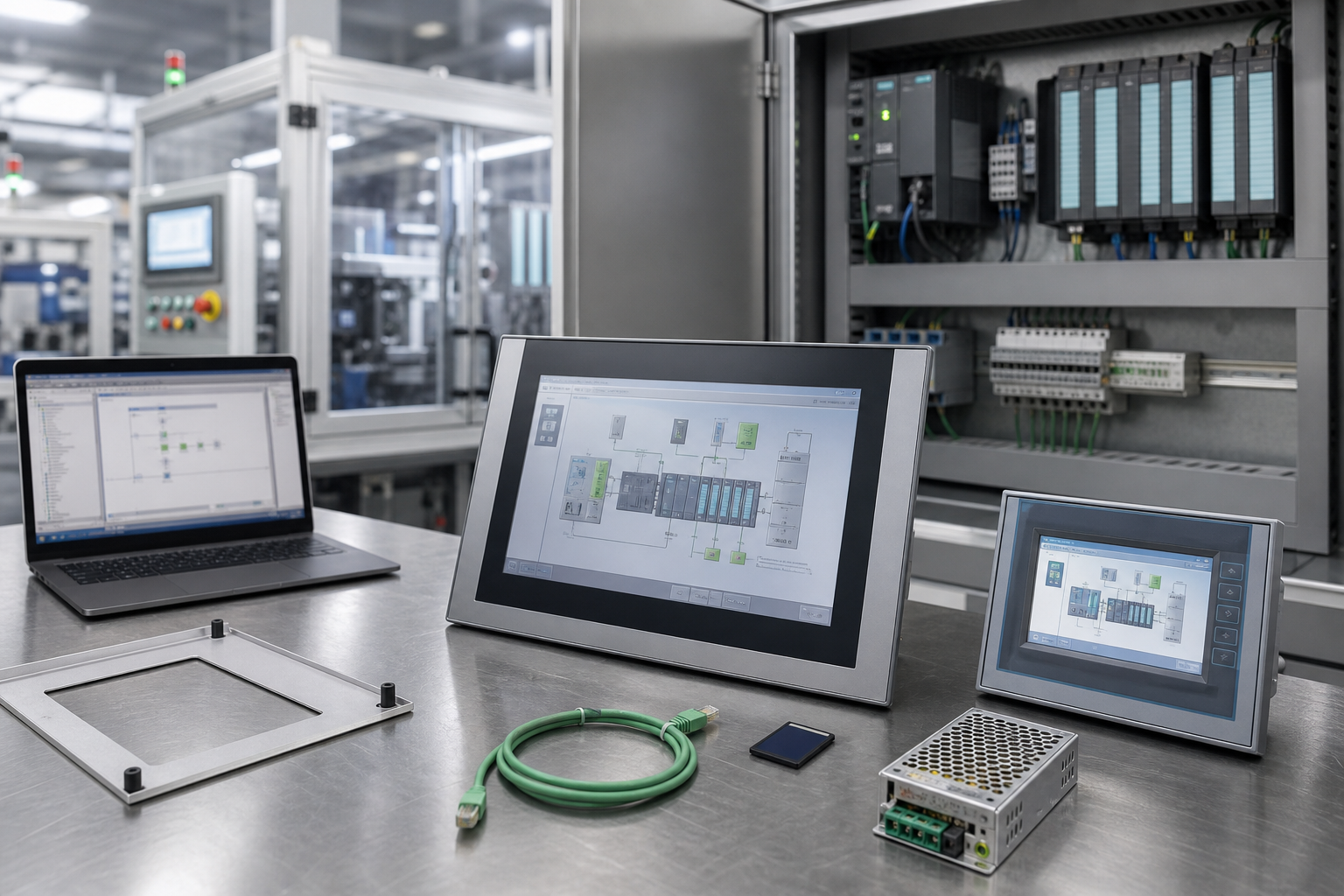

SIMATIC HMI Spares: Panel, Project, and Cutout Evidence Before Operator Screen Failure

An operator panel failure can turn a healthy machine into a blind machine. The PLC may still run, drives may remain ready, and remote I/O may be fine, but operators lose alarms, recipes, reset screens, mode selection, and the confidence to restart. A SIMATIC HMI spare has to match the panel and the project, not only the display size.

SiemensPLC readers already know that Siemens lifecycle notices matter. Today the practical issue is narrower: how to make sure an installed SIMATIC HMI can be replaced before the screen fails and before the original project file becomes difficult to restore.

Identify The Panel And The Project Together

Record exact panel order number, screen size, cutout, depth, mounting clips, power, firmware, communication ports, memory card, project version, PLC connection, recipes, alarms, user levels, language files, and machine function.

The live Siemens 6AV6642-0BA01-1AX1 HMI touch panel reference is a product match for a SIMATIC panel RFQ. Compare model, cutout, firmware, power, and project compatibility before approval.

Photograph the front panel, rear label, cutout, terminals, Ethernet or serial ports, memory card, cabinet depth, active screens, alarm pages, and the engineering workstation backup.

A Similar Panel Can Become A Retrofit

A panel that looks close may require a different cutout, mounting hardware, power supply, communication cable, engineering software, project conversion, or operator retraining. That is no longer a direct spare; it is a retrofit.

The related Siemens A5E00161042 SIMATIC TP HMI reference shows why older panel families should be separated by project, cabinet fit, and operator workflow.

Ask suppliers to quote exact panel, tested exchange, refurbished unit, and retrofit option separately. Include firmware and project support assumptions instead of hiding them in a generic replacement line.

Acceptance Belongs On The Machine

After replacement, verify boot, touch response, project restore, PLC communication, alarm display, recipes, trends, user login, language, time sync, screen navigation, and machine permissives.

If an HMI is replaced during a short stop, test the operator workflow that actually matters: fault reset, manual mode, recipe selection, alarm acknowledgement, startup sequence, and safe stop visibility.

Store the approved backup, firmware note, cutout measurement, photos, communication map, and operator acceptance record with the spare.

What Buyers Should Ask Before The Screen Dies

Send front and rear labels, cutout dimensions, panel photos, firmware, project backup status, communication port evidence, required condition, test scope, and restart deadline.

Ask whether the supplier can provide actual-item photos and confirm included mounting hardware. A missing clip or wrong power terminal can delay a simple panel swap.

For plants considering new panels, keep direct replacement and modernization separate. A migration can be smart, but it needs project conversion, testing, operator acceptance, and a rollback plan.

Keep direct replacement, repair exchange, refurbished stock, substitute, and migration candidate as separate commercial lines. They carry different approval work, and mixing them under one compatible description hides the real maintenance risk.

The most useful RFQ evidence is practical: actual label photos, cabinet context, connector views, wiring markers, firmware or configuration status, required condition, test expectation, accessory scope, delivery deadline, and the name of the person who can approve a technical exception.

Receiving inspection should repeat the same identity checks used during selection. Photograph the actual received unit, compare terminals and connectors, review test evidence, record packaging condition, and mark any unresolved compatibility question before the item goes into stores.

A spare is ready only when the plant can install it, restore the needed data, test the function, and roll back if the replacement exposes a second problem. Procurement can buy the item; engineering evidence makes it recoverable.

The fastest teams do this before the failure. They keep a light asset sheet for each critical cabinet, update it during routine inspections, and attach photographs from the actual installation. When a failure happens, the buyer can send a serious RFQ in minutes instead of asking maintenance to reopen a hot panel.

Revision control also deserves attention. Two modules with the same family name may differ by firmware, option board, communication behavior, power requirement, connector style, environmental rating, or configuration tool. The quote should surface those differences rather than turning them into surprises during installation.

For multi-site companies, the same model may not mean the same risk. One plant may use the item in a noncritical monitoring role, while another uses it for trip logic, permissive control, machine protection, or an environmental permit signal. Rank spare urgency by installed consequence, not by purchase price alone.

Finally, avoid treating obsolete automation as a single emergency category. Some parts are good direct-spare candidates; others should be repaired, refurbished, tested as exchange units, or migrated at the next planned shutdown. A clear record lets the plant choose deliberately instead of reacting to the first available listing.

Good handover notes matter as much as the purchase order. If the night shift, reliability team, controls engineer, and buyer describe the same spare in different language, the plant can lose hours reconciling facts that should have been captured once.

FAQ

What must match on a SIMATIC HMI spare?

Match order number, screen size, cutout, power, firmware, ports, project compatibility, mounting, and operator workflow.

Can a newer HMI replace an older TP panel?

Only after project conversion, cutout, power, communication, firmware, alarms, recipes, and operator acceptance are reviewed.

What should the RFQ include?

Send labels, cutout measurements, front and rear photos, project status, firmware, condition requirement, test scope, and deadline.

What proves HMI recovery?

Successful project restore, stable PLC communication, correct alarms and recipes, touch response, user access, and operator sign-off.

Send SiemensPLC the SIMATIC HMI labels, cutout photos, firmware and project status, communication details, condition requirement, and restart deadline. We can help prepare a direct-spare or retrofit RFQ.
