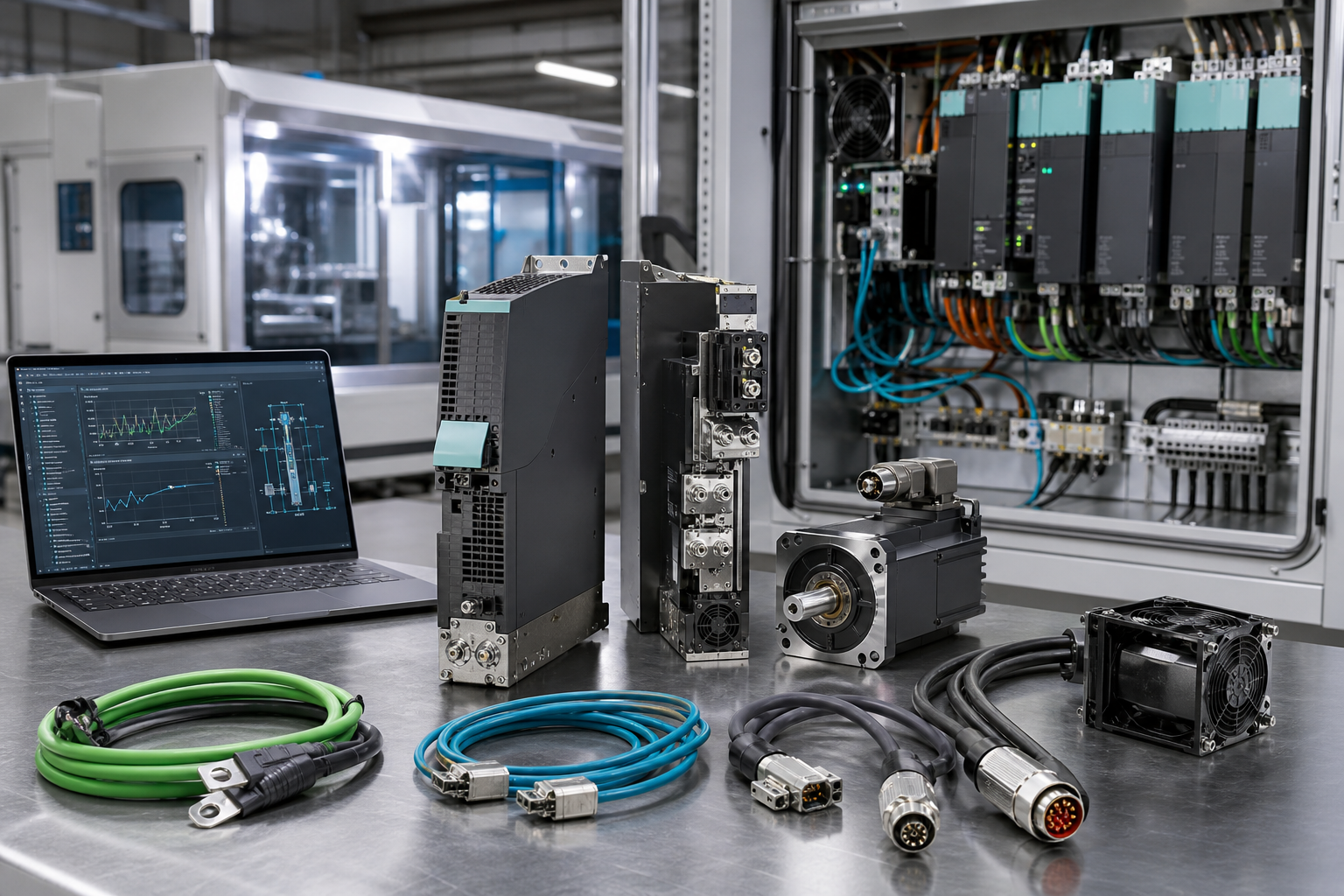

SINAMICS S120 Spares: Motor Module Evidence Before a Drive Cabinet Shutdown

A SINAMICS S120 motor module failure can stop a machine even when the PLC, HMI, and upstream power look normal. The replacement must match more than a cabinet position. Order number, power rating, DC link, cooling, DRIVE-CLiQ path, firmware, parameters, encoder feedback, and commissioning evidence all matter.

SiemensPLC readers need a drive-spare plan that does not confuse lifecycle awareness with emergency swapping. A motor module is close to motion, mechanics, and safety; a wrong assumption can damage hardware or leave the axis uncommissioned.

Record The Drive Axis Context

Capture exact order number, power rating, frame style, DC link, line module relationship, motor, encoder, braking, cooling, firmware, DRIVE-CLiQ topology, parameter backup, fault history, and machine axis function.

The live Siemens 6SL3224-0BE15-5UA0 SINAMICS S120 motor module reference is a product match for the axis hardware. Compare rating, topology, cooling, and parameter support before approval.

Photograph module labels, cabinet slot, DC link, power cables, motor and encoder cables, DRIVE-CLiQ ports, fan path, fault display, and commissioning software status.

Nearby S120 Modules Are Not Interchangeable By Sight

Two S120 modules can look similar while power rating, firmware, current capacity, cooling, connector scope, or parameter behavior differs. Treat each module as part of an axis system.

The related Siemens 6SL3200-0SP01-0AA0 SINAMICS S120 drive reference helps compare S120 spare scope, but exact installed evidence still decides acceptance.

Ask suppliers for exact, tested exchange, refurbished, and substitute options separately. Include actual condition, fault history if available, accessories, warranty, dispatch timing, and commissioning assumptions.

Acceptance Must Include The Axis

After replacement, verify module recognition, firmware, DC-link status, DRIVE-CLiQ devices, parameter restore, motor data, encoder feedback, cooling, alarms, enable sequence, and a controlled axis test.

If the axis does not enable, review safety interlocks, parameter set, feedback cable, motor data, line module status, DC link, brake wiring, and mechanical lockout before rejecting the spare.

Store the spare record with parameter backups, drive topology, photos, commissioning notes, fault logs, and final motion approval.

Make The Drive RFQ Specific

Send order number, cabinet photos, rating, DC-link and cable evidence, motor and encoder information, firmware, parameter status, condition requirement, and shutdown deadline.

Ask whether the item has been tested only for power-up or under a functional drive test. The difference matters when the downtime window is short.

For substitutions, require a commissioning plan and rollback path. Motion hardware should not be released on the strength of similar appearance alone.

The useful discipline is to keep identity, function, and approval separate. Identity says what the part is. Function says what the plant expects it to restore. Approval says who can accept the risk when one detail differs.

For older control systems, the cheapest mistake is usually made before the order: a photo is missing, a firmware note is assumed, a cable is treated as generic, or a tested exchange is compared with an untested used item. Those small gaps become expensive only when the cabinet is open.

Ask for actual-item photographs when the schedule is tight. Front labels, side labels, terminals, connectors, latch points, power markings, and accessory scope often reveal more than a polished catalog description.

The purchasing record should travel with the spare after it arrives. If the item goes into stores without the evidence that justified the purchase, the next maintenance team has to repeat the same work under worse conditions.

Do not let the word compatible replace engineering judgment. Compatible can mean electrically similar, physically similar, repairable, configurable, or only suitable after a migration review. Spell out which meaning applies.

A good spare plan also names the fallback. If the replacement fails bench checks or field acceptance, the plant should know whether it will reinstall the old item, use a repaired exchange, isolate a noncritical function, or escalate to a migration decision.

The article topic should also connect to real search intent. Maintenance engineers are usually not searching for theory; they are searching because a rack, network segment, safety channel, drive axis, or loop is already fragile. Write the RFQ around that pressure.

Condition language needs discipline. New surplus, factory sealed, refurbished, repaired exchange, tested used, and untested used items do not carry the same risk. A buyer should ask which condition is being offered before comparing lead time or price.

Accessory scope is another common trap. Terminal blocks, memory cards, SFP modules, connectors, mounting clips, cables, batteries, license media, and configuration files may be outside the base item. Name them early so the spare can be installed, not merely received.

For critical equipment, the acceptance method should be written before the purchase order is approved. A loop test, axis jog, proof test, node diagnostic check, or network failover test tells the supplier and the plant what ready actually means.

Document the unresolved points openly. If firmware is unknown, configuration is unavailable, or a substitute requires engineering review, the RFQ can still move forward, but the risk should remain visible instead of disappearing into the quote notes.

This approach does not slow procurement down; it gives procurement something precise to send. A well-documented request usually gets a more useful response because the supplier can confirm exact stock, repair path, or substitute limits without guessing.

FAQ

What must match on a SINAMICS S120 motor module?

Match order number, rating, DC link, cooling, DRIVE-CLiQ topology, firmware, parameters, motor data, and axis function.

Can a similar S120 module be used?

Only after rating, firmware, connector scope, parameter behavior, cooling, and commissioning approval are checked.

What should the RFQ include?

Send labels, cabinet photos, motor and encoder details, parameter status, condition requirement, test scope, and shutdown deadline.

What proves recovery?

Module recognition, restored parameters, healthy DC link, valid feedback, correct alarms, enable sequence, and approved controlled axis test.
