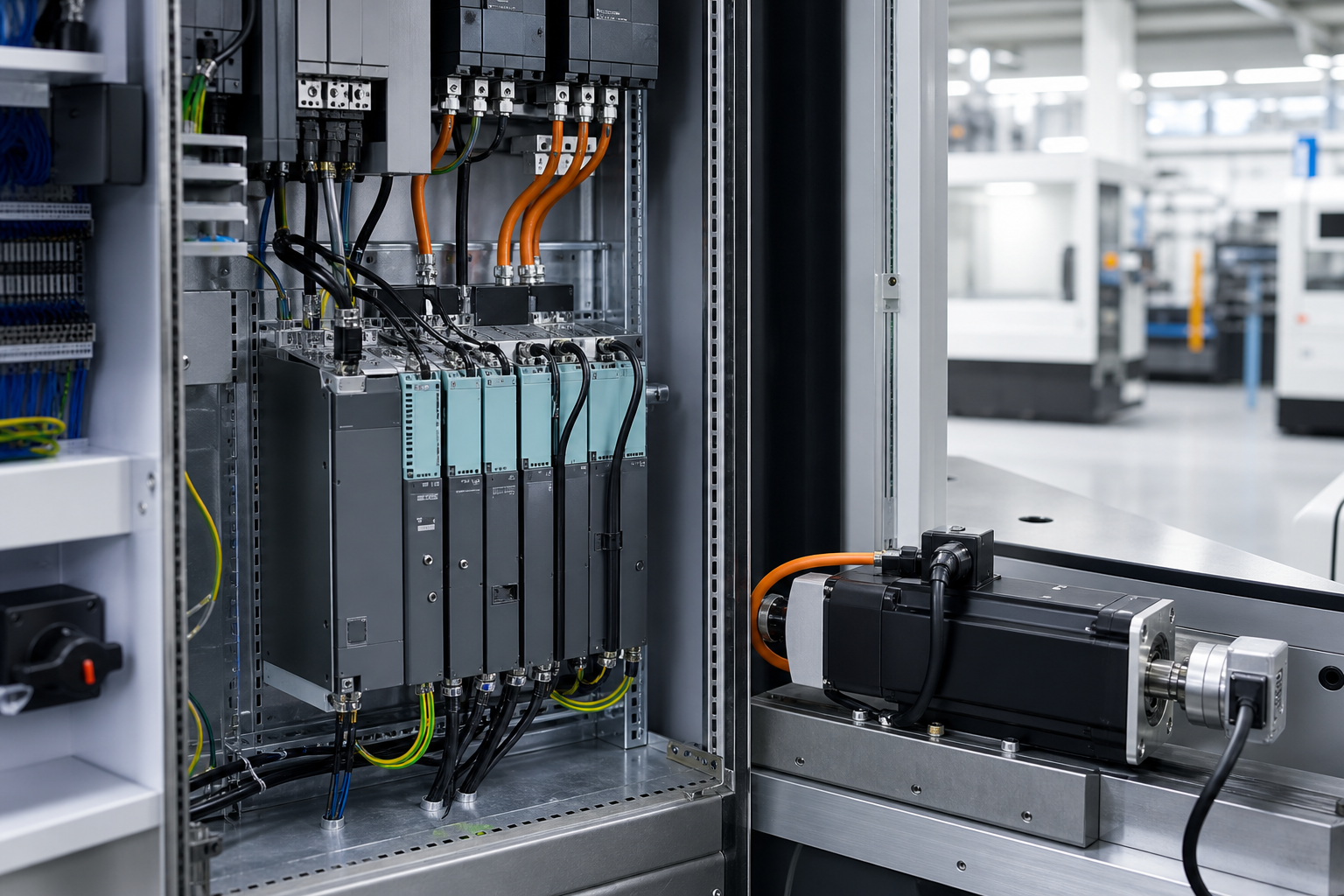

SINAMICS S120 Servo Modules: Evidence to Stage Before Axis Failure

A SINAMICS S120 axis can fail at the servo module, motor, encoder, DC-link path, control unit, or cable. A spare plan that lists only the drive module may leave the machine unable to move after replacement. The correct record connects the module to the motor, feedback, safety, parameters, and axis role.

SiemensPLC readers need to keep older motion systems supportable while a full modernization decision is still being evaluated. Evidence-based staging reduces the chance that a high-value production axis becomes a same-day model search.

Map the S120 axis relationship

Record servo module, control unit, motor, encoder, brake, DC link, motor cable, feedback cable, firmware, safety functions, and machine-axis role. Photograph drive and motor labels together.

The live SINAMICS S120 6SL3120-2TE13-0AA4 reference is a product match for an RFQ. The related 1FK7 motor reference shows why the motor and drive pairing must be preserved.

Include connector, DC-link, braking, cooling, cabinet mounting, and machine-side axis evidence. Keep sensitive network details out of public RFQs.

Preserve parameters and safety dependencies

Confirm parameter backup, motor identification, encoder data, tuning, firmware, homing, limits, safe motion, and commissioning owner. A module without the correct parameter path may not recover the axis.

Compare voltage, current, overload, motor, feedback, brake, DC-link, cooling, communication, and connector requirements before accepting a substitute.

Ask for exact, repair, substitute, and migration candidates separately, with actual-item photos, condition, test evidence, and warranty.

Acceptance should prove the axis

After replacement, verify power, motor identification, encoder, direction, homing, limits, brake, alarms, communication, tuning, safe motion, and the production move.

Mark the module exact, conditional, bench-tested, or engineering review required. Ready status on the drive is not the same as an accepted machine axis.

Keep drive and motor labels, parameter reference, cable pairing, settings, and final test record together.

Build the RFQ around the installed function

A useful spare request begins with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop or blind the process. Then add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options may all be commercially useful, but they do not carry the same approval burden. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, or a production trial before it can be counted as recovery stock.

The product references in this article are live catalog examples, not permission to skip engineering checks. Compare the product page with the installed label and the plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control or protection function.

Keep the approved catalog and RFQ reference with the maintenance record, but do not let a catalog title replace the installed evidence. The useful record is the combination of model, function, interface, condition, test requirement, and decision owner.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is still physically present, that packaging and accessories are intact, that the backup or test procedure is available, and that the responsible engineer is still named.

When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it. This may include a drawing comparison, firmware review, bench test, dimensional check, protection test, communication test, or production trial.

The final decision should be visible to stores, procurement, maintenance, and operations. Use plain status labels such as exact replacement, approved substitute, repair exchange, bench-only, or engineering review required.

FAQ

What must match on an S120 servo module?

Match module, motor, voltage, current, encoder, brake, DC link, firmware, safety, cables, and axis role.

Can a similar S120 module replace it?

Only after motor, feedback, power, cooling, parameters, safety, connectors, and commissioning are reviewed.

Why include the motor in the RFQ?

The drive and motor form a tuned axis; the motor and feedback affect compatibility and recovery.

What proves the axis is recovered?

Motor identification, feedback, direction, homing, limits, brake, alarms, communication, tuning, and production movement.

Send SiemensPLC your S120 and motor labels, cable and encoder photos, parameter status, axis role, and deadline. We can help prepare a motion-recovery spare request.

Before approval, record what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminal scope, incomplete accessories, and untested condition should remain open items. This keeps the quote honest and gives engineering a short review list before the maintenance window.

A useful record also states what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminal scope, incomplete accessories, and untested condition should be written as open items so the quote remains honest and the plant has a short list of questions to close before the equipment is needed.
