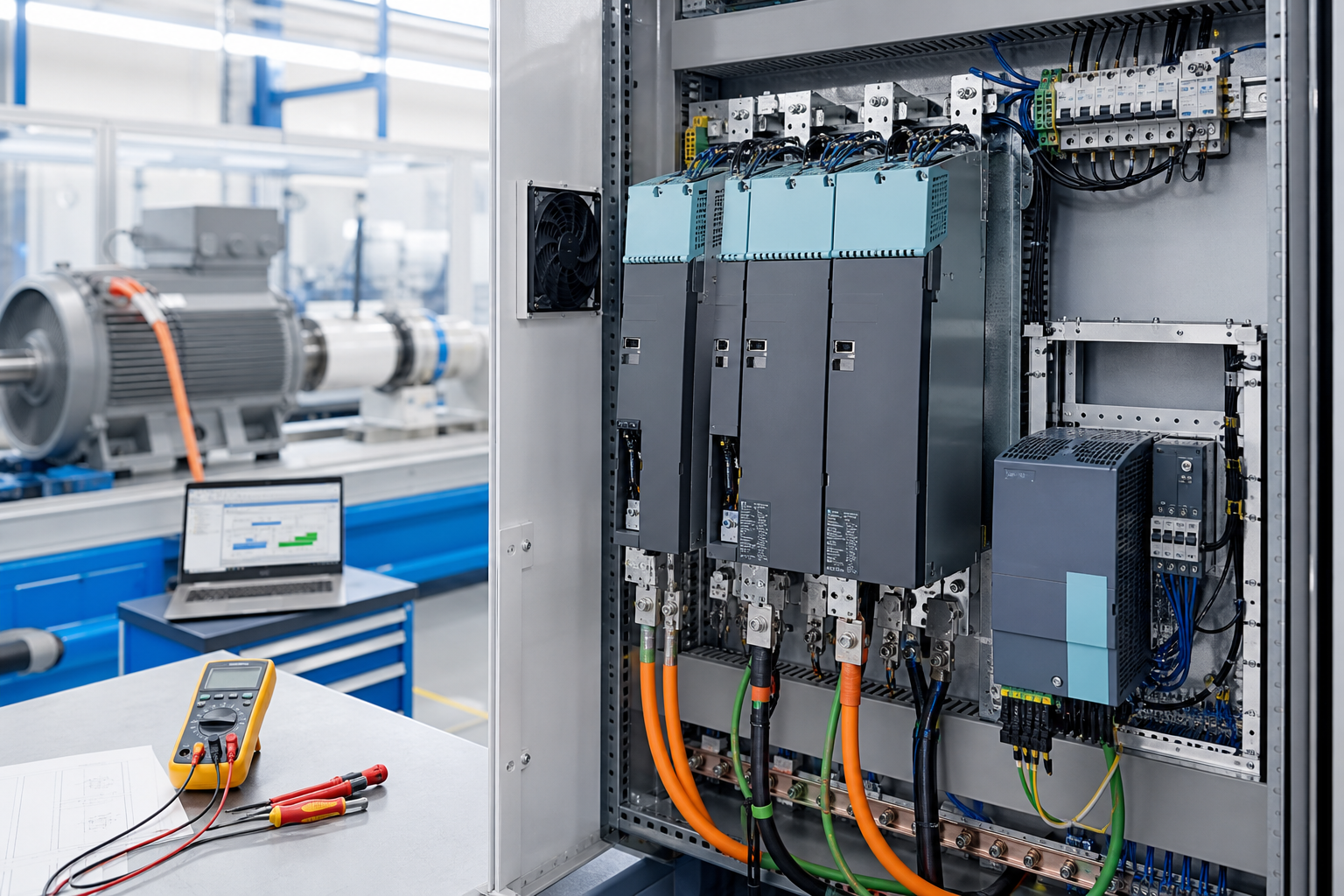

SINAMICS and SITOP Spares: Power Evidence Before Motion Restart

A motion restart can fail because the drive module is wrong, but it can also fail because the DC bus, 24 V supply, control enable, motor cable, fan, or parameter set was not checked. SINAMICS and SITOP spare planning should treat power evidence as part of the motion system.

SiemensPLC readers maintain mixed SIMATIC and SINAMICS cabinets where drives, PLCs, and power supplies are tightly connected. A strong RFQ should help maintenance recover the axis without overlooking the power path.

Start With The Drive Function

Record drive family, module order number, axis name, motor data, DC bus role, encoder path, power terminals, alarm history, parameter backup, and the machine consequence of the failed axis.

The live Siemens 6SL3200-0SP01-0AA0 SINAMICS S120 drive module is the product match when drive-cabinet recovery is the main issue.

Photograph labels, terminal lugs, DC bus links, motor cables, feedback cables, fan path, LED status, and drive diagnostics before removal.

SITOP Power Should Be Checked Early

A drive can show confusing faults when the 24 V control supply is weak, intermittent, overloaded, or wired through a failing terminal path.

The related Siemens 6EP1336-3BA10 industrial power supply helps frame the power-side evidence that belongs in the same spare discussion.

Ask suppliers for condition, actual photos, tested status, terminal condition, accessory scope, and any substitute implications for mounting or wiring.

Acceptance Should Include Controlled Motion

After replacement, verify supply voltage, drive recognition, parameter load, safety enable, motor direction, feedback, cooling, alarms, and a controlled jog or production-speed test.

If the axis still faults, review SITOP output, DC bus, braking resistor, motor cable, encoder cable, parameter set, safety circuit, and mechanical load before rejecting the spare.

Store photos, parameter-backup notes, voltage checks, alarm records, motion-test results, and controls approval with the spare record.

What A Useful RFQ Should Prove

Send drive and power-supply labels, terminal photos, axis name, parameter-backup status, alarm history, condition requirement, and restart deadline.

A Siemens drive RFQ should state whether the problem is drive power, control power, motor feedback, safety enable, or a broader cabinet recovery.

For substitutes, require review of DC bus, terminal layout, mounting, parameter impact, and motion acceptance testing.

The useful RFQ is not a shopping list. It is a small technical file that proves identity, installed function, accessory scope, condition expectation, and the field test that will decide whether the part is acceptable.

For legacy automation, family names are often too broad. Firmware, suffix, memory, terminal base, communication option, power rating, field wiring, and even the cable included in the original installation can change the risk profile of the spare.

Actual photos reduce that uncertainty. Front labels, side labels, connector faces, terminal screws, keying, handles, memory devices, and cabinet slot position often reveal details that a short product description misses.

Condition language should be plain. New surplus, factory sealed, refurbished, repaired exchange, tested used, and untested used items should not be compared as if they offered the same restart confidence.

Before ordering, define who owns configuration, firmware loading, field calibration, proof testing, and final production approval. A supplier may confirm hardware, but the plant must still decide the acceptance boundary.

Receiving inspection should repeat the RFQ evidence. Compare the approved photos with the received item, check connector damage, confirm accessory scope, and record whether the part is ready for stores, bench test, or immediate installation.

This documentation also helps migration planning. Scarce parts, weak test evidence, missing accessories, or repeated substitution requests are useful signals when engineering needs to justify a planned upgrade without exaggerating the facts.

Good purchasing habits do not slow the job down. They prevent vague follow-up questions, reduce wrong-part risk, and give maintenance a clearer path if the first replacement does not pass site acceptance.

When several similar systems exist in one plant, include the unit, machine, cabinet, rack, or loop tag in the request. A spare that works on one line may not be acceptable on another even if the model family looks familiar.

The final decision should weigh availability, condition, test evidence, accessory completeness, shipping route, and fallback path together. A fast shipment is only valuable when the part can survive the real maintenance test.

Keep the evidence with the spare after the work is complete. The next engineer should be able to see why the item was accepted, which limitations remain, and how the plant proved recovery.

For critical equipment, define a minimum evidence package before the buyer sends the inquiry: installed photos, nameplate photos, cabinet or rack position, accessory list, fault description, required condition, acceptable alternatives, and the planned acceptance test. This gives suppliers less room to guess and gives engineers a cleaner way to reject weak offers.

Do not ignore small accessories. A missing cable, terminal base, memory card, mounting bracket, key switch, connector hood, or power plug can turn a good module into an unusable delivery. List these items explicitly when the shutdown window is tight.

If the spare is bought for stores rather than immediate installation, still define how it will be inspected. A stored critical spare should have photos, condition notes, packaging notes, and a future test plan, otherwise the plant is only postponing the uncertainty.

FAQ

What must match on a SINAMICS spare?

Match order number, drive role, power rating, DC bus context, motor and encoder path, parameters, and test method.

Why include SITOP power supply evidence?

Because weak or missing control power can create drive symptoms that look like a module fault.

What should procurement send?

Send labels, terminal photos, axis details, parameter status, alarm history, condition requirement, and deadline.

What proves recovery?

Stable supply voltage, recognized drive, loaded parameters, clear alarms, correct jog, and approved motion test.
