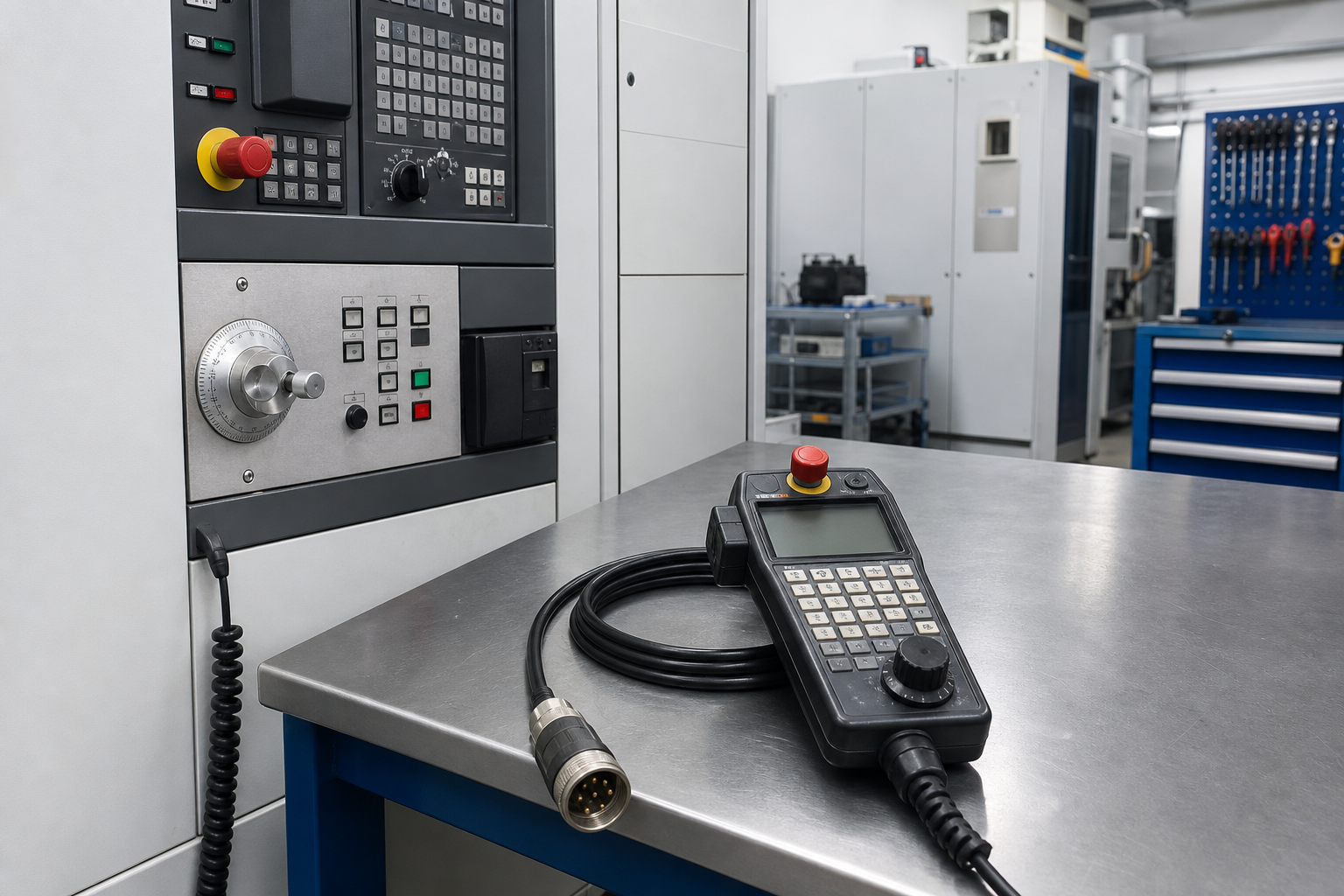

SINUMERIK 6FX2007 Handheld Spares: CNC Recovery Evidence

A CNC handheld unit can become the bottleneck for a machine even when the controller, drive, and spindle are healthy. The operator interface may carry enabling switches, emergency-stop functions, handwheel controls, keys, display feedback, and a dedicated connector or cable. A replacement must match the machine interface, not only the product family.

SiemensPLC readers need a practical way to maintain legacy SINUMERIK operator hardware while production continues. The right spare record connects the handheld unit to the CNC control, cable, connector, keys, emergency circuits, and acceptance procedure.

Identify the handheld interface

Record the complete 6FX2007 part number, display and key layout, handwheel, enabling switch, emergency stop, connector, cable length, mounting or storage hook, and machine control family.

The live SINUMERIK 6FX2007-1AD13 handheld reference is a catalog match to start the RFQ. The related SINUMERIK HMI display control reference shows why handheld and fixed operator interfaces should not be mixed.

Photograph the handheld front, rear label, connector, cable, emergency-stop and enabling controls, keys, machine-side socket, and storage or mounting context.

Treat cable and safety controls as part of the spare

A handheld unit may be mechanically correct but unusable with the wrong cable, connector, enabling circuit, or emergency-stop arrangement. Record whether the quote is for the complete unit, cable, repair, or display assembly.

Confirm CNC software, machine configuration, key assignment, and any operator authorization requirements. Hardware replacement may still need a controlled machine test.

For surplus or refurbished offers, request actual-item photos, key and switch test evidence, connector condition, cable continuity, display state, packaging, and warranty.

Acceptance should prove machine control

After replacement, verify connection, display, keys, handwheel, enabling switch, emergency stop, machine selection, operator functions, and the approved test cycle.

Mark the item exact, conditional, bench-only, repair option, or engineering review required. A lit display alone is not acceptance.

Keep the handheld label, cable pairing, machine socket, configuration reference, and final test evidence together so the next CNC outage starts with useful evidence.

Build the RFQ around the installed function

A useful spare request begins with the installed function, not only a familiar brand name. State what the device does, where it sits, what it connects to, and what failure would stop or blind the process. Then add the exact label, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Separate an exact replacement from a possible substitute, repair exchange, bench item, and migration candidate. These options may all be commercially useful, but they do not carry the same approval burden. An exact spare may support a short outage window. A substitute may need wiring changes, parameter review, software work, or a production trial before it can be counted as recovery stock.

The product references in this article are live catalog examples, not permission to skip engineering checks. Compare the product page with the installed label and the plant record. If a suffix, connector, voltage, protocol, firmware family, or mechanical interface differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. A clean-looking item is not automatically a field-ready spare, and an item that powers up is not automatically accepted by the control or protection function.

Keep the approved catalog and RFQ reference with the maintenance record, but do not let a catalog title replace the installed evidence. The useful record is the combination of model, function, interface, condition, test requirement, and decision owner.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is still physically present, that packaging and accessories are intact, that the backup or test procedure is available, and that the responsible engineer is still named.

When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it. This may include a drawing comparison, firmware review, bench test, dimensional check, protection test, communication test, or production trial.

The final decision should be visible to stores, procurement, maintenance, and operations. Use plain status labels such as exact replacement, approved substitute, repair exchange, bench-only, or engineering review required.

FAQ

What must match on a SINUMERIK handheld spare?

Match exact part number, key layout, handwheel, enabling switch, emergency stop, connector, cable, and CNC control interface.

Can a fixed HMI replace a handheld unit?

Not automatically. The operator functions, safety controls, wiring, machine software, and approval requirements differ.

What should a surplus handheld quote include?

Request actual-item photos, keys and switch test, connector and cable condition, display state, accessories, and warranty.

What proves the unit is ready?

Connection, display, keys, handwheel, enabling switch, emergency stop, machine functions, and approved test cycle.

Send SiemensPLC the handheld label, connector and cable photos, machine control family, and deadline. We can help prepare a CNC operator-interface spare request with the right evidence.

A useful record also states what the supplier cannot determine from a catalog page. Unknown firmware, missing drawings, unclear terminal scope, incomplete accessories, and untested condition should be written as open items so the quote remains honest and the plant has a short list of questions to close before the equipment is needed.

Use the same evidence at receiving that was used during selection. Compare the actual label and interface with the approved request, then save received-item photos with the work order. This helps maintenance, procurement, and stores learn from every replacement instead of starting the next RFQ from a blank screen.
