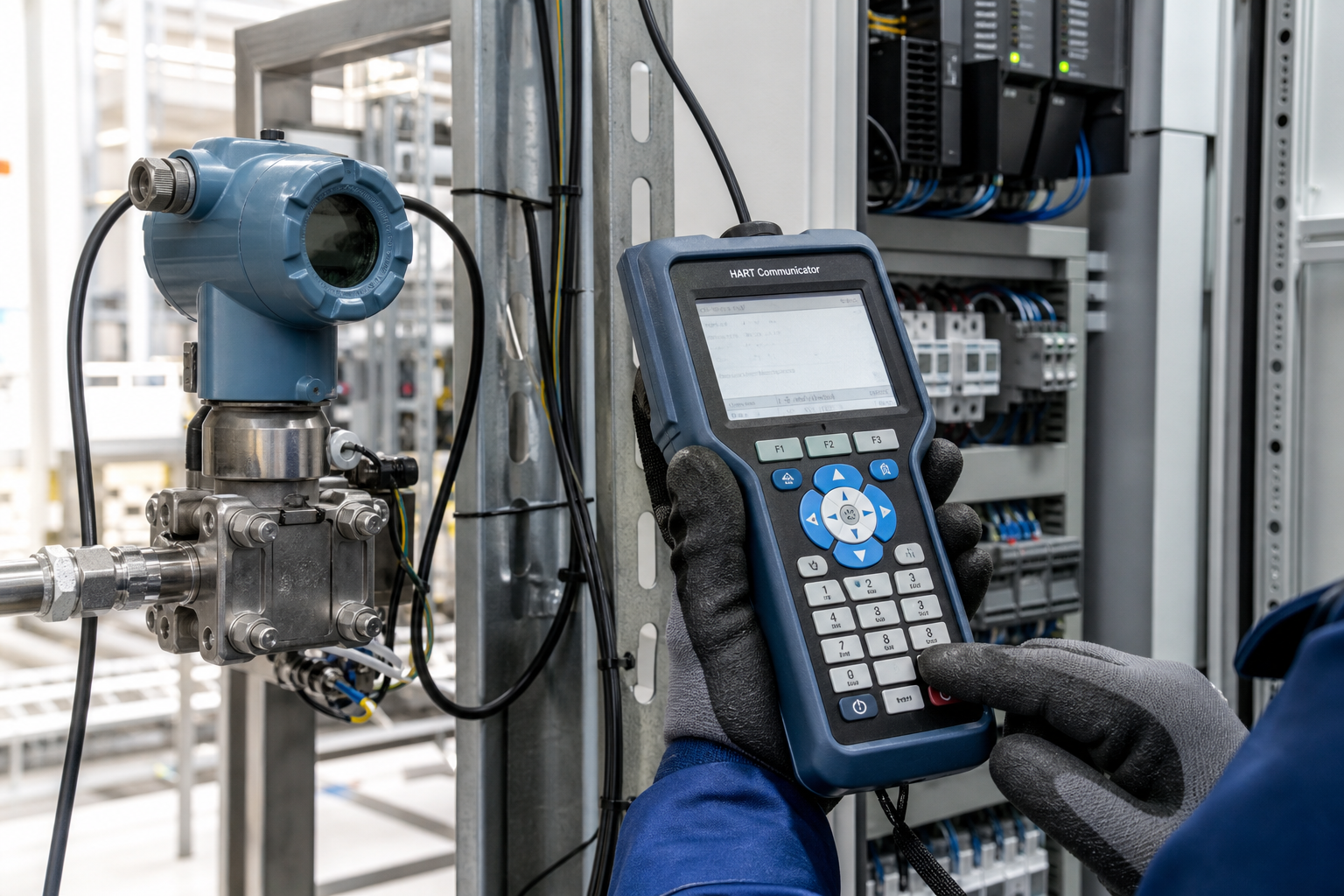

Yokogawa YHC4150X-01 Spares: HART Communicator Evidence Before Field Calibration

A handheld communicator can become a critical spare when a plant needs to diagnose, configure, or calibrate field instruments during a shutdown. The Yokogawa YHC4150X-01 must be matched to supported device protocols, firmware, batteries, test leads, loop power conditions, and the site calibration process.

SiemensPLC readers need a field-instrument recovery record that distinguishes a communicator from the instrument or DCS hardware it services. The spare should be ready before the technician reaches the field device.

Record the field-service requirement

Capture communicator model, supported protocols, firmware, battery, leads, connectors, loop power, device families, calibration procedure, software, and instrument role.

The live Yokogawa YHC4150X-01 reference is a product match for an RFQ. Compare the installed service kit, device support, firmware, battery, leads, and calibration record before approval.

Photograph communicator label, display, battery, leads, terminals, charging equipment, protective case, and field-service kit context.

Do not confuse communication with calibration

A communicator can establish a connection while the instrument range, trim, loop power, wiring, process isolation, or calibration standard remains wrong. Record the complete field task before ordering a device.

The related ABB DCS backplane reference illustrates why a field service tool and control-system hardware must remain separate dependencies.

Request exact, tested exchange, repair, substitute, and engineering-review options separately, with battery condition, display test, firmware, accessories, warranty, and dispatch timing.

Acceptance must prove field readiness

Before the shutdown, verify power-on, battery runtime, display, keypad, leads, protocol connection, device read/write behavior, loop current, documentation, and approved calibration test.

Mark the communicator exact, battery replacement pending, bench-tested, substitute, or engineering review required.

Keep labels, firmware and device-support evidence, battery test, lead continuity, calibration procedure, and final service acceptance together.

Turn the identification into a usable spare record

The most useful record begins with the installed function. State what the item does, where it is mounted, what it connects to, and what production, safety, motion, measurement, or monitoring function depends on it. Add the exact nameplate, revision, connector view, power information, accessory scope, condition requirement, destination, and required date. This gives procurement and engineering the same starting point.

Keep an exact replacement, a repair exchange, a refurbished bench item, a possible substitute, and a migration candidate as separate commercial options. They do not carry the same approval burden. A direct spare may support a short outage window; a substitute may require wiring changes, firmware review, parameter work, software restoration, validation, or a controlled production trial.

The live product references in this article are catalog matches, not a reason to skip engineering checks. Compare every product page with the installed label and plant record. If a suffix, connector, voltage, protocol, firmware family, mechanical interface, or environmental rating differs, keep the item conditional until the responsible engineer closes that gap.

Receiving inspection should repeat the evidence used for the RFQ. Photograph the received label, packaging, connectors, terminals, mounting features, and included accessories. Record what was checked and what remains unknown. An item that looks clean is not automatically field-ready, and an item that powers up is not automatically accepted by the installed function.

Review the spare before the maintenance window, not only after a failure. Confirm that the item is physically present, the accessory scope is complete, the backup or test procedure is available, and the decision owner is still named. When a substitute is considered, write down the exact gap it is intended to close and the evidence needed to approve it.

A good quotation response mirrors the plant record. It states the exact model, actual condition, test scope, included hardware, warranty, dispatch timing, and unresolved compatibility questions. Avoid a quote that quietly combines an exact part, an exchange repair, and a possible substitute under one generic compatible heading.

Finally, assign acceptance ownership before the part is ordered. Procurement can verify identity and commercial terms; stores can verify packaging and label; maintenance can verify installation; and the responsible controls, safety, motion, reliability, or instrumentation engineer can approve functional recovery.

The point of a spare plan is not to predict every failure. It is to reduce uncertainty when the failure occurs by preserving the model evidence, configuration path, test method, and decision owner in one place.

Before the maintenance window, verify the spare location, packaging, accessory scope, backup media, test equipment, and named decision owner. If the part is stored at another site, confirm the transport time and the person authorized to release it. If the item is refurbished, keep the bench-test report and actual-item photographs with the quotation rather than relying on a generic condition statement.

When the replacement arrives, repeat the same identity checks used during sourcing. Record the label, revision, connectors, mounting details, firmware or configuration evidence, and any open compatibility question. This makes the receiving decision traceable and gives the maintenance team a clear starting point for installation, testing, and final acceptance.

FAQ

What must match on a YHC4150X-01 spare?

Match communicator model, protocols, firmware, battery, leads, connectors, device families, software, and service process.

Can any HART communicator replace it?

Only after device support, firmware, loop conditions, leads, write functions, and site approval are checked.

What should the RFQ include?

Send communicator and kit labels, battery and lead photos, device families, condition, test scope, and calibration deadline.

What proves field readiness?

Power-on, battery runtime, display, leads, protocol connection, read/write behavior, loop current, and approved calibration testing.

Send SiemensPLC the communicator and service-kit labels, battery and lead photos, device families, calibration need, and deadline. We can help prepare a practical instrumentation-spare RFQ.
