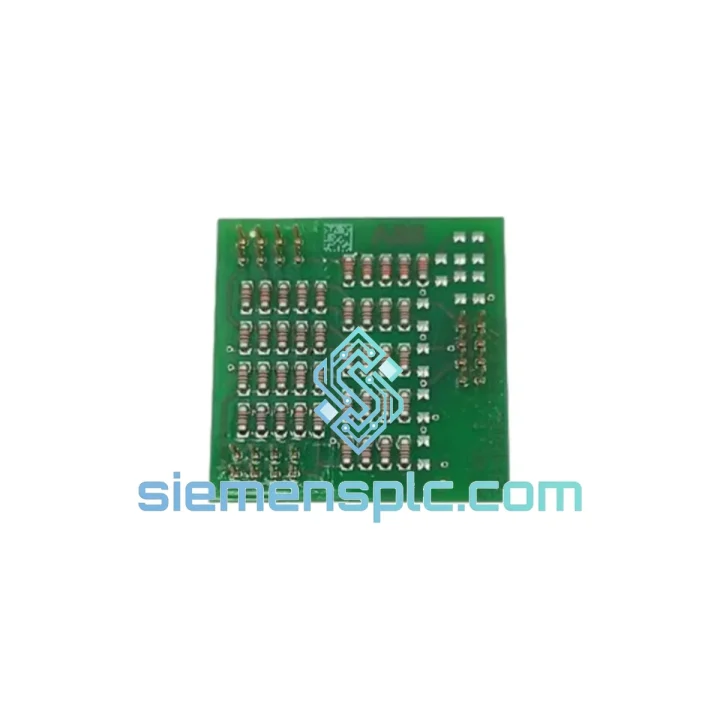

ABB 3BHB002953R0108 XVC723 AE108 Communication Module – DCS Series

ABB 3BHB002953R0108 XVC723 AE108 — Deterministic Inter-Controller Communication in High-Availability DCS Architectures

The ABB 3BHB002953R0108, carrying the hardware designation XVC723 AE108, is a dedicated communication interface module engineered for deployment within ABB’s distributed control system (DCS) platforms, including the AC800M controller family and the Symphony Plus process automation environment. Its primary function is to manage structured, time-deterministic data exchange between controller nodes, I/O clusters, and supervisory layers across industrial fieldbus and proprietary backplane networks.

Unlike general-purpose communication cards, the XVC723 AE108 is architected around a fixed-latency arbitration model. The module’s internal firmware enforces a bounded cycle time for message queuing and acknowledgment, which is a non-negotiable requirement in process industries where control loop integrity depends on sub-millisecond synchronization between distributed nodes. This design philosophy is consistent with ABB’s broader approach to deterministic real-time control in power generation, oil and gas, and chemical processing environments.

The module occupies a dedicated slot within the XVC700-series communication backplane and interfaces directly with the controller’s internal bus via a high-speed parallel data path. This architecture eliminates the latency penalties associated with software-mediated protocol stacks, allowing the module to sustain continuous data throughput without CPU intervention on the host controller. The result is a measurable reduction in jitter across the communication channel — a critical parameter in cascade control loops and coordinated multi-axis motion sequences.

From a physical construction standpoint, the 3BHB002953R0108 is housed in a conformal-coated PCB assembly rated for extended temperature operation. The board layout follows IEC 61000-series EMC guidelines, with differential signal routing, ground plane segmentation between analog and digital domains, and transient voltage suppression (TVS) diodes on all external-facing signal lines. These design choices reflect the operational realities of industrial environments where conducted and radiated interference from variable-frequency drives, high-current switching gear, and RF sources are routine.

The AE108 hardware revision incorporates an updated FPGA logic block that handles protocol framing and error detection at the hardware level, offloading these tasks from the host processor. CRC validation is performed on every received frame before data is written to the shared memory buffer, ensuring that corrupted packets are discarded before they can propagate into the control application layer. This hardware-level integrity check is particularly significant in safety-instrumented system (SIS) adjacent architectures where data fidelity is a compliance requirement under IEC 61511.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

FPGA-Based Protocol Offload: The AE108 revision replaces earlier ASIC-based framing logic with a reprogrammable FPGA block. This allows ABB to push firmware updates that modify protocol behavior without hardware replacement — a significant advantage in long-lifecycle DCS installations where system-wide firmware alignment is managed across multi-year maintenance windows. The FPGA handles frame assembly, sequence numbering, and acknowledgment tracking entirely in hardware, with the host CPU receiving only validated, fully assembled data objects.

Ground Plane Segmentation and EMC Architecture: The PCB employs a split ground plane strategy that physically isolates the digital processing domain from the backplane interface circuitry. This prevents high-frequency switching noise generated by the FPGA clock domain from coupling into the analog signal paths on the backplane connector. Differential pair routing is used for all high-speed data lines, with controlled impedance traces (typically 100 Ω differential) to minimize reflections at the connector interface.

Transient Protection on External Interfaces: All signal lines that interface with the backplane or external connectors are protected by TVS diode arrays rated to clamp transients in accordance with IEC 61000-4-5 Level 3 (2 kV line-to-line). This is particularly relevant in installations where the communication backplane spans multiple cabinet sections connected by cable runs, which act as antennas for conducted transients from nearby switching equipment.

Watchdog and Heartbeat Supervision: The module implements an independent hardware watchdog timer that monitors the communication cycle. If the host controller fails to service the communication channel within the configured timeout window, the module asserts a fault signal on the backplane, triggering a controlled shutdown sequence rather than allowing the system to operate on stale data. This fail-safe behavior is a fundamental requirement for process safety applications.

Shared Memory Buffer Architecture: Data exchange between the module’s FPGA and the host controller is mediated through a dual-port SRAM buffer. This architecture allows the FPGA to write incoming data and the host CPU to read it without bus contention, eliminating the need for interrupt-driven data transfers that would introduce variable latency into the control cycle.

System Integration Benefits

• Deterministic Cycle Time: Hardware-enforced message arbitration ensures that communication latency remains bounded regardless of network load, preserving control loop timing integrity in cascade and feedforward configurations.
• Zero-Overhead CPU Communication: The FPGA-based offload architecture means the host controller’s CPU is not consumed by protocol processing, preserving full computational capacity for control algorithm execution.
• Hardware-Level Fault Isolation: The watchdog and heartbeat supervision logic ensures that communication failures are detected and reported within one scan cycle, enabling the DCS to execute pre-configured fault responses before process variables drift outside safe operating limits.
• Transparent Diagnostics: The module exposes a structured diagnostic register set accessible via the backplane, allowing the host controller to read frame error counters, retry counts, and link status without interrupting normal communication operations.
• Hot-Swap Compatibility: The XVC723 module is designed for insertion and removal under power in systems configured for redundant communication paths, minimizing planned downtime during maintenance cycles.
• Firmware Updateability: The FPGA logic block supports in-field firmware updates via the backplane interface, allowing protocol enhancements and bug fixes to be applied without module replacement or system shutdown.
• Long-Term Availability: As a catalogued ABB spare part, the 3BHB002953R0108 is supported within ABB’s extended lifecycle program, providing a documented supply path for installations with 20+ year operational horizons.
• Cross-Platform Compatibility: The module is compatible with multiple ABB DCS platforms including AC800M, Symphony Plus, and Advant OCS derivatives, reducing the number of distinct spare part SKUs required in multi-platform installations.
• Reduced Commissioning Risk: Drop-in replacement compatibility with existing XVC723-series slots means that module substitution during maintenance does not require reconfiguration of the host controller’s communication parameters.
• EMC Robustness in Dense Electrical Environments: The IEC 61000-series compliant design allows the module to operate reliably in switchgear rooms and motor control centers where radiated and conducted interference levels exceed typical office or light industrial environments.

Quality Assurance & Global Logistics

Every ABB 3BHB002953R0108 XVC723 AE108 unit supplied through siemensplc.com undergoes a structured incoming inspection protocol before it is allocated to customer orders. Physical inspection covers label authenticity, housing integrity, connector pin condition, and PCB conformal coating continuity. Serial numbers are cross-referenced against ABB’s batch documentation where available. Units sourced from surplus channels are subject to additional functional verification at the board level prior to dispatch.

Shipments originate from our warehouse in Xiamen, China, a major logistics hub with direct access to international air freight services via Xiamen Gaoqi International Airport and sea freight via Xiamen Port. Standard export documentation — including commercial invoice, packing list, and certificate of origin — is prepared for every shipment. DDP, DAP, and EXW Incoterms are supported. For time-critical procurement, same-day dispatch on confirmed orders received before 14:00 CST is available for in-stock units.

All modules are shipped in anti-static packaging with foam cushioning appropriate for sensitive electronic assemblies. Export compliance screening is performed on every order in accordance with applicable trade regulations. A 12-month warranty against manufacturing defects is provided from the date of shipment, with direct technical support available via email and WhatsApp throughout the warranty period.
