ABB 3BHB012961R0001 / 5SHX 2645L0002 — IGCT Gate Drive Circuit Board for ACS6000 Medium-Voltage Converter Systems

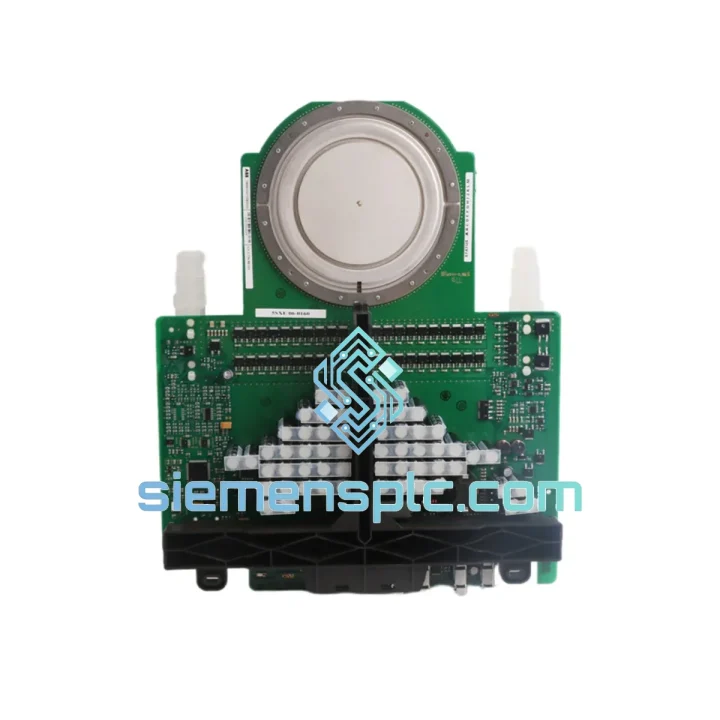

The ABB 3BHB012961R0001 (sub-assembly reference: 5SHX 2645L0002) is the dedicated gate drive circuit board for ABB’s Integrated Gate-Commutated Thyristor (IGCT) power semiconductor modules deployed in the ACS6000 medium-voltage drive platform and related high-power converter families including the PEC750 and industrial traction inverter series. Within the converter’s power stage, this board occupies the critical interface layer between the fiber-optic control bus and the IGCT anode-gate junction — a position where signal integrity, isolation robustness, and protection response time directly determine whether the power device survives a fault transient or fails catastrophically.

IGCTs differ fundamentally from IGBTs in their gate drive requirements. A standard IGBT gate drive sources milliamperes; an IGCT turn-off event requires the gate unit to extract the full anode current — potentially several kiloamperes — through the gate circuit within microseconds to achieve unity-gain turn-off. The 3BHB012961R0001 is engineered specifically for this duty cycle: its output stage is a high-current pulse circuit capable of delivering the reverse gate current magnitude and slew rate demanded by the 5SHX 2645L0002 IGCT device, while maintaining gate loop inductance low enough to prevent parasitic oscillation during commutation.

In the ACS6000 converter cell architecture, each IGCT device is paired with its own gate unit board. The control layer issues turn-on and turn-off commands via fiber-optic link, eliminating ground-loop coupling between the low-voltage control domain and the multi-kilovolt power domain. The 3BHB012961R0001 decodes these optical signals, generates the appropriate gate pulse waveform, and simultaneously monitors the IGCT’s anode voltage and on-state current signature. Any deviation from expected commutation behavior — including di/dt overshoot, desaturation, or gate fault — triggers an immediate fault signal back to the control layer, enabling protective shutdown within sub-millisecond timescales before thermal runaway can propagate.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Gate Loop Inductance Minimization: The PCB layout of the 3BHB012961R0001 follows a low-inductance design discipline mandatory for IGCT gate drive boards. The high-current output traces are routed as tightly coupled differential pairs with minimized loop area, reducing parasitic inductance to single-digit nanohenry levels. At the current slew rates involved in IGCT commutation, even 10 nH of stray inductance generates voltage spikes that can exceed gate junction ratings. The board’s layout geometry directly determines whether the IGCT achieves clean unity-gain turn-off or suffers gate oscillation that degrades device lifetime.

Fiber-Optic Isolation Architecture: Command reception via fiber-optic link provides complete galvanic isolation between the drive’s DSP control board (operating at logic-level voltages) and the gate unit board, which is referenced to the IGCT’s cathode potential — potentially floating at several kilovolts above earth during normal converter operation. This isolation architecture eliminates common-mode current paths that would otherwise couple switching transients from the power stage back into the control electronics, a failure mode that causes spurious gate commands and control board damage in poorly isolated designs.

Desaturation Detection Circuit: The board implements an active desaturation monitoring circuit that continuously measures the IGCT’s on-state anode-cathode voltage during conduction. Under normal conditions, a conducting IGCT presents a low on-state voltage (typically 1.5–3 V depending on current). If the device begins to lose gate control — due to overcurrent, thermal stress, or gate drive failure — the on-state voltage rises sharply. The desaturation circuit detects this rise within microseconds and asserts a fault signal, initiating controlled shutdown before the device enters linear operation and dissipates destructive power. This protection mechanism is the primary defense against IGCT latch-up in the ACS6000 power stage.

EMC Design Considerations: The gate unit board operates in an electromagnetically hostile environment: the ACS6000 converter cabinet generates high dV/dt transients (several kV/μs) on the DC bus during each switching event. The 3BHB012961R0001 incorporates localized decoupling capacitors on the control supply rails, ground plane segmentation to prevent high-frequency return currents from coupling into signal traces, and shielded connector interfaces where the board interfaces with the IGCT module. These measures maintain signal integrity on the fault detection and fiber-optic receive circuits even during worst-case switching transients.

Thermal Coordination with IGCT Module: The gate unit board is mechanically and thermally integrated with the 5SHX 2645L0002 IGCT module. The board’s power dissipation — primarily from the gate drive output stage during high-frequency switching — is managed through the module’s thermal interface. Operating the board within the ACS6000’s specified cabinet cooling conditions (forced air or water cooling per installation variant) is essential to maintain gate drive output stage junction temperatures within rated limits and preserve long-term reliability of the gate pulse waveform characteristics.

System Integration Benefits

• Deterministic Commutation Timing: The fiber-optic command interface and low-latency gate pulse generation ensure that IGCT switching events occur within the timing windows defined by the ACS6000 modulator, maintaining PWM pattern integrity and preventing shoot-through conditions in the converter bridge.
• Sub-Millisecond Fault Isolation: On-board desaturation and over-current detection generates fault signals faster than the control layer’s software protection loop, providing a hardware-level safety net that protects the IGCT device and DC bus capacitors from energy-limited fault events.
• Elimination of Snubber Circuits: The ACS6000’s IGCT-based topology, enabled by the gate unit’s unity-gain turn-off capability, operates without conventional RC or RCD snubber networks required by GTO-based converters. This reduces component count, cabinet volume, and snubber-related power losses in the range of 0.5–1% of rated converter power.
• Diagnostic Transparency: Gate fault status signals are routed back to the ACS6000 control board and logged in the drive’s fault history with timestamp resolution, enabling maintenance engineers to distinguish between gate drive failures, IGCT device degradation, and external overcurrent events during root-cause analysis.
• Direct OEM Replacement Compatibility: As an ABB-manufactured board matched to the 5SHX 2645L0002 IGCT, the 3BHB012961R0001 requires no recalibration, firmware update, or parameter adjustment when installed as a like-for-like replacement in an existing ACS6000 converter cell.
• Reduced MTTR for Converter Maintenance: Board-level replacement of the gate unit — rather than full IGCT module replacement — allows maintenance teams to restore converter availability in cases where the gate drive circuit has failed but the IGCT power device remains functional, reducing spare parts cost and mean time to repair.
• Compatibility Across ACS6000 Power Ratings: The 5SHX IGCT family spans a range of voltage and current ratings used across the ACS6000 product line from several hundred kilowatts to multi-megawatt configurations. The gate unit board design accommodates this range, simplifying spare parts inventory management for facilities operating multiple ACS6000 units at different power levels.
• Long-Term Installed Base Support: The dual part number traceability (3BHB012961R0001 / 5SHX 2645L0002) allows procurement teams to cross-reference this board across ABB’s global spare parts management system, supporting lifecycle extension programs for ACS6000 installations with 10–20 year operational horizons.
