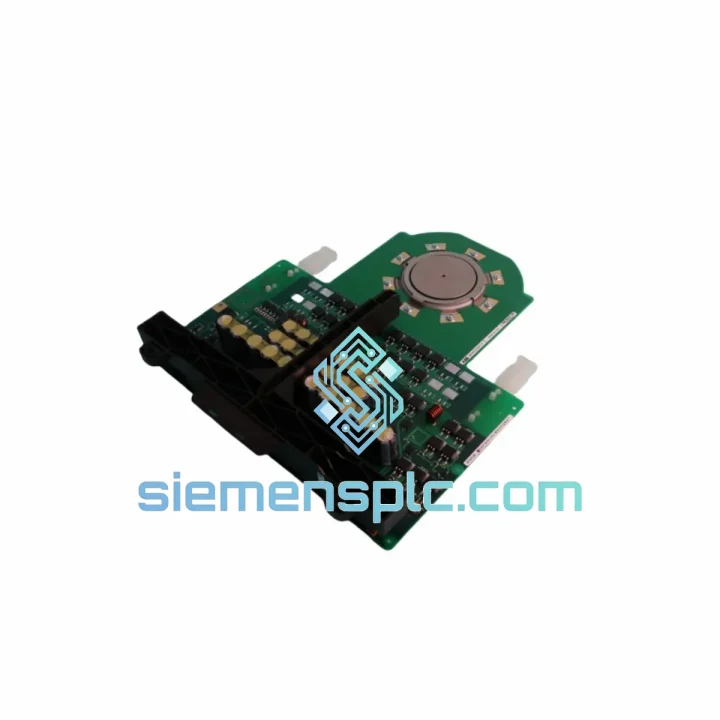

ABB 3BHB013085R0001 5SHY3545L0009 IGCT Module

ABB 3BHB013085R0001 / 5SHY3545L0009 — Stop the Bleed: Every Hour of MV Drive Downtime Costs You Real Money

Your ACS6000 or PCS6000 tripped on an IGCT fault. The line is cold. Maintenance is standing by. You’ve already confirmed the gate unit or thyristor disc is the culprit — now the only variable that matters is how fast you can get a verified replacement on-site. The ABB 3BHB013085R0001 gate unit and 5SHY3545L0009 IGCT disc are not shelf items at your local distributor. They are precision, matched-pair power electronics that most suppliers cannot even quote, let alone ship. We stock them. We ship from Xiamen. We move fast.

This listing covers the complete functional pair: the 3BHB013085R0001 gate driver assembly and the 5SHY3545L0009 IGCT thyristor disc. In ABB’s medium-voltage drive architecture, these two components are inseparable — the gate unit delivers the high-current, fiber-optically isolated trigger pulse that the IGCT disc requires for microsecond-precision commutation. Substituting either component with an unmatched unit is not a workaround; it is a guaranteed path to a second failure and a voided warranty. We supply the matched pair, tested, documented, and ready to install.

The 5SHY3545L0009 sits at the core of ABB’s most demanding power conversion platforms — steel mill rolling drives, offshore wind full-power converters, mining hoist systems, and HVDC Light installations. These are not environments that tolerate improvisation. When this disc fails, the fault signature is typically hard and fast: overcurrent trip, IGCT gate fault alarm (e.g., ACS6000 fault code F-0113 or F-0114), or a blown snubber capacitor in the same stack position. The replacement procedure is straightforward for a trained MV drive technician, but the component sourcing is where most plants lose days or weeks. That gap is exactly what we close.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Identification Before You Pull the Module

Before ordering, confirm the fault is isolated to the IGCT pair and not upstream in the gate driver fiber-optic chain or the DC bus capacitor bank. On ACS6000 platforms, fault codes F-0113 (IGCT gate fault) and F-0114 (IGCT overcurrent) are the primary indicators of a failed 5SHY3545L0009 disc or a degraded 3BHB013085R0001 gate unit. Cross-check with the drive’s event log — a single isolated trip with no recurrence on reset suggests a transient; repeated trips on the same phase position confirm a hardware fault in that stack cell.

Pre-Replacement Checklist

• De-energize the MV drive fully and verify DC bus voltage is below 50 V using a calibrated meter before opening the power cabinet. Residual charge in the DC link capacitors is lethal.
• Photograph the existing gate unit fiber-optic cable routing before disconnection. The 3BHB013085R0001 has multiple fiber ports; incorrect reconnection will cause immediate re-fault on power-up.
• Inspect the snubber capacitor (typically 5SHX0860F0002 or equivalent) in the same stack position. A failed IGCT disc frequently takes the snubber with it. Replace both if the snubber shows any bulging, discoloration, or capacitance drift beyond ±10% of rated value.
• Check the water-cooling circuit for flow rate and conductivity before reinstalling. Deionized water conductivity must remain below 0.5 µS/cm. Contaminated coolant accelerates re-failure of the new disc.
• The 5SHY3545L0009 disc is a pressure-contact device — torque the clamping assembly to the ABB-specified value (refer to the drive’s maintenance manual for your specific stack revision). Under-torquing causes thermal resistance increase and premature failure; over-torquing cracks the ceramic housing.
• After mechanical installation, perform a gate unit self-test via the drive’s commissioning software (DriveWindow or equivalent) before applying MV power. The 3BHB013085R0001 has built-in gate integrity diagnostics accessible at low voltage.
• No firmware update is required for a like-for-like 3BHB013085R0001 replacement, provided the revision code on the new unit matches the original. Verify the R-suffix on the part label before installation.

Common Post-Replacement Fault: Immediate Re-Trip on Power-Up

If the drive trips again immediately after replacement, the most common causes are: (1) fiber-optic cable connected to wrong port on the new gate unit — swap TX/RX and retest; (2) snubber capacitor not replaced — the degraded snubber allows dv/dt spikes that exceed the new disc’s rating; (3) coolant flow not restored — the drive’s thermal model will trip on predicted overtemperature within seconds of power-up if flow is not confirmed.

Reliability in Harsh Conditions

The 5SHY3545L0009 was not designed for a climate-controlled server room. ABB’s 5SHY IGCT series was developed specifically for the punishment of continuous industrial duty — the kind of environment where ambient temperature swings 40°C between day and night shifts, where vibration from adjacent heavy machinery is constant, and where the power quality feeding the drive is anything but clean.

The IGCT disc construction uses a hermetically sealed silicon wafer in a ceramic-metal housing that provides inherent resistance to humidity ingress — a critical advantage in coastal industrial facilities, offshore platforms, and tropical climates where conventional IGBT modules with plastic encapsulation degrade within months. The pressure-contact assembly eliminates solder joints entirely, removing the primary failure mechanism that plagues wire-bonded power modules under thermal cycling.

The 3BHB013085R0001 gate unit is conformal-coated and designed to operate continuously at ambient temperatures up to 55°C within the drive cabinet. Its fiber-optic interface provides complete galvanic isolation between the high-voltage power circuit and the control electronics, meaning a power-side fault cannot propagate back into the control system — a protection mechanism that matters enormously in facilities where a single fault event can cascade into a full plant shutdown.

Vibration resistance is validated to IEC 60068-2-6 test profiles relevant to industrial drive installations. Units sourced from us are inspected for mechanical integrity — any gate unit showing evidence of PCB flexure, connector fretting, or fiber-optic port damage is rejected before shipment. We do not ship units that pass a visual check but fail a functional test. Both conditions must be satisfied.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. For urgent MV drive downtime situations, we operate on the following logistics framework:

• Order Confirmation to Dispatch: In-stock units are packed and handed to the carrier within 24 hours of payment confirmation. For time-critical situations, same-day dispatch is available for orders confirmed before 14:00 CST.
• DHL Express Worldwide: Transit time to Europe 2–3 business days; Southeast Asia 1–2 business days; North America 3–4 business days; Middle East 2–3 business days. Door-to-door with full tracking.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has superior coverage or preferred customs clearance relationships.
• Export Documentation: Commercial invoice, packing list, and certificate of origin prepared in-house. For destinations requiring specific customs documentation (e.g., CE declaration, RoHS statement), advise at time of order and we will prepare accordingly.
• ESD-Safe Packaging: All IGCT components are packed in anti-static bags, foam-lined rigid cartons, and clearly labeled as fragile electronic components per IATA regulations. The 5SHY3545L0009 disc is additionally secured against pressure-contact surface damage during transit.
• Tracking & Notification: Tracking number provided within 2 hours of dispatch. For critical shipments, we monitor transit status and proactively notify you of any carrier delays.

We have shipped IGCT modules and MV drive components to steel mills in Turkey, mining operations in Chile, offshore platforms in Norway, and power utilities across Southeast Asia. The logistics process is not new to us — it is a core part of what we do.
