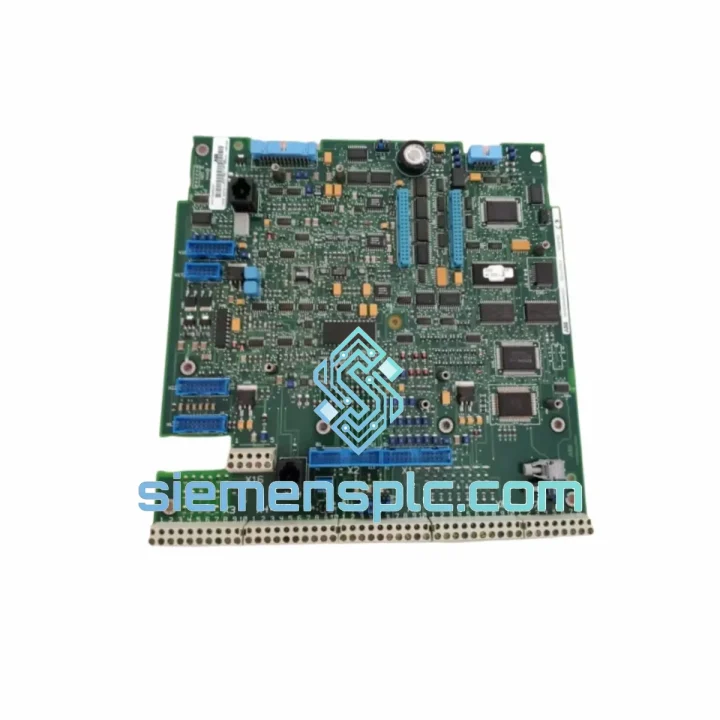

ABB 3BHE004059R0001 SDCS-CON-2 DC Drive Control Board

ABB 3BHE004059R0001 SDCS-CON-2: Ship Today, Restart Tomorrow — Every Idle Hour Costs You

Your DC drive is down. The line is cold. Maintenance is standing by and management wants answers. The ABB SDCS-CON-2 — part number 3BHE004059R0001 — is the central control intelligence of the entire SDCS DC drive platform. When it fails, nothing moves. No bypass, no workaround, no temporary fix. You need the exact board, verified, tested, and on a plane today.

We stock the 3BHE004059R0001 in Xiamen. DHL and FedEx express lanes are open. If your inquiry lands before 3 PM CST, same-day dispatch is on the table. We have done this for steel mills in Turkey, paper plants in Brazil, and mining operations in South Africa. The process is the same every time: confirm the part, confirm the revision, ship it fast.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on SDCS-based drives, the failure patterns on the SDCS-CON-2 are predictable. Here is what you are most likely dealing with and what to check before you pull the board:

Common Fault Codes & Root Causes

• F501 / F502 — Speed feedback loss: Before condemning the CON-2, verify the pulse encoder interface board (SDCS-PIN-11 or SDCS-PIN-205) and encoder cable continuity. A failed encoder will throw these faults and mimic a dead control board.
• F506 — Overcurrent trip at startup: Often caused by a corrupted parameter set after a power surge. Attempt a parameter reset via CDP panel before replacing the board. If the fault persists after reset, the CON-2 firing pulse logic is likely damaged.
• F516 — Field current loss: Check the SDCS-FEX-2 field excitation board first. The CON-2 monitors field current but does not generate it — a failed FEX-2 will produce this fault on an otherwise healthy CON-2.
• Blank CDP panel / no communication: This is the clearest indicator of a dead CON-2. If the power supply board (SDCS-POW-1 or SDCS-POW-4) is confirmed healthy and the CDP panel shows nothing, the CON-2 microprocessor has failed.
• Intermittent trips under load: Thermal fatigue on the CON-2 is common in drives running at high ambient temperatures without adequate cabinet ventilation. Inspect the board for discolored components or cracked solder joints around the DSP area before assuming a clean swap will solve the problem.

Replacement Procedure — Critical Configuration Points

• Firmware revision matching: The SDCS-CON-2 carries firmware stored on an onboard EPROM or flash module. Before ordering, identify your current firmware version from the CDP panel (parameter 7.01 or equivalent). A hardware-identical board with a mismatched firmware version will not communicate correctly with the CDP panel and may produce erratic behavior. Specify your firmware version when placing your order — we will match it.
• Parameter backup before removal: If the drive is still partially functional, use the CDP panel to upload the full parameter set to the panel memory before pulling the board. This saves hours of recommissioning time. If the board is completely dead, locate the last commissioning record or contact the original drive integrator for the parameter file.
• DIP switch configuration: The SDCS-CON-2 carries hardware DIP switches that configure the board for specific drive ratings and feedback types. Document the existing switch positions with a photograph before removal. The replacement board ships in a default configuration — you must replicate the original switch settings exactly.
• Connector seating: The CON-2 connects to the SDCS backplane via a multi-pin edge connector. Inspect the backplane connector for bent pins or corrosion before inserting the replacement. A poor connection here will cause intermittent faults that are extremely difficult to diagnose.
• First power-up sequence: After installation, power up the drive with the motor disconnected if possible. Verify that the CDP panel communicates, that the firmware version displayed matches expectations, and that no immediate faults are present before connecting the motor load.

Reliability in Harsh Conditions

The SDCS-CON-2 was not designed for a climate-controlled server room. ABB engineered this board for the realities of heavy industry: steel mill floors where ambient temperatures exceed 45°C, paper mills where humidity is a constant, mining environments where vibration is relentless, and offshore platforms where salt air attacks every exposed surface.

The board’s conformal coating on critical circuit areas provides a baseline of protection against moisture and particulate contamination. The component selection — industrial-grade capacitors, robust DSP packaging, and conservative thermal derating — reflects ABB’s understanding that this board will spend its service life in conditions that would destroy consumer-grade electronics within weeks.

That said, the SDCS-CON-2 has known environmental vulnerabilities that field experience has confirmed. Electrolytic capacitors on the power regulation section are the first components to degrade in sustained high-temperature environments — drives running in poorly ventilated cabinets above 40°C ambient will see CON-2 failures at roughly half the expected service interval. Vibration-induced solder joint fatigue is the second most common environmental failure mode, particularly on drives mounted directly to machinery frames without isolation mounts.

When you install a replacement CON-2, address the root environmental cause at the same time. A new board dropped into the same thermal or vibration conditions that killed the original will follow the same failure timeline. Fit a cabinet cooling unit if ambient temperatures are marginal. Check that the drive cabinet is mounted on anti-vibration pads if the installation is on or adjacent to heavy rotating machinery.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx express lanes to every major industrial region globally. Here is how the process works from the moment you confirm your order:

• Same-day dispatch: Orders confirmed before 3 PM CST ship the same business day. The board is pulled from stock, inspected, photographed, wrapped in anti-static packaging, cushioned in foam, and sealed in a double-wall export carton.
• Export documentation: We handle all commercial invoice, packing list, and customs declaration paperwork. HS code classification for industrial control boards is handled correctly — no delays at customs due to documentation errors.
• Transit times: DHL Express and FedEx International Priority typically deliver to Europe in 3–5 business days, North America in 4–6 business days, Southeast Asia in 2–3 business days, and the Middle East in 3–5 business days. We will quote the specific transit time for your destination at order confirmation.
• Tracking: A tracking number is sent to you within 2 hours of dispatch. You can monitor the shipment in real time through the carrier’s portal.
• Customs clearance support: If your customs authority requires additional documentation — certificates of origin, material safety data, or technical specifications — we provide these on request. We have shipped to over 60 countries and have handled the documentation requirements for all of them.

Every hour your line is down has a cost. We have structured our entire logistics operation around the single goal of getting the right part to you in the shortest possible time. That is not a marketing statement — it is the operational reality that our repeat customers in the steel, paper, and mining industries depend on.
