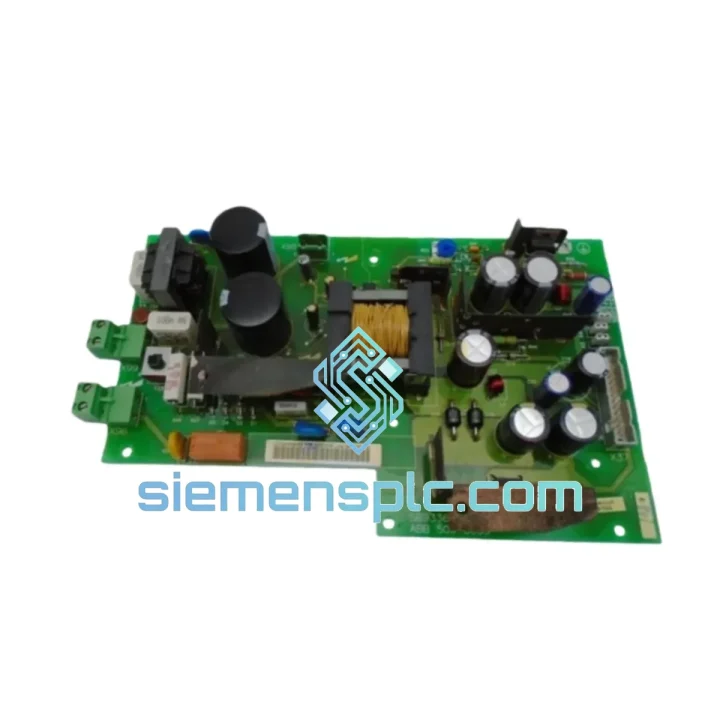

ABB SDCS-POW-1 DC Drive Power Supply Module

ABB SDCS-POW-1 – Stop the Clock on Your DC Drive Downtime

Every minute your DCS 400 drive sits dead, the production line bleeds money. The SDCS-POW-1 is the internal power supply board that keeps the entire ABB DCS 400 control architecture alive — when it fails, nothing else works. No field bus. No speed reference. No torque control. Just a locked-out drive and a growing shutdown report.

We stock the ABB SDCS-POW-1 in Xiamen and ship same-day on confirmed orders. No waiting on ABB’s standard lead time. No chasing distributors across three time zones. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SDCS-POW-1 fails in predictable ways. Here is what you will see on the drive panel and what it actually means on the bench:

Fault F-16 / F-17 (Internal Supply Undervoltage): The SDCS-CON-2 or CON-3 control board loses its logic rail. The drive trips immediately at power-on, sometimes before the keypad even initializes. Measure the +5 V and ±15 V test points on the POW-1 board itself — if any rail is more than 5% out of spec, the board is the culprit, not the control board.

Intermittent Fault / Random Trips: Electrolytic capacitors on the POW-1 age out in high-ambient environments. You may see the drive run fine for 20 minutes then trip on a spurious fault. Capacitor ESR rises with temperature — the fault appears only when the drive is warm. Do not waste time re-tuning speed loops. Replace the POW-1.

Replacement Procedure (field-verified steps):

• Isolate and lock out the DCS 400 drive. Verify DC bus is fully discharged — minimum 5 minutes after main contactor opens. Use a calibrated meter, not the drive display.
• Remove the drive front cover. The SDCS-POW-1 is located in the lower-left card slot of the control section, directly below the SDCS-CON board.
• Disconnect the multi-pin edge connector. Note the keying tab orientation — the replacement installs in one direction only, but confirm before seating.
• There are no DIP switches or address settings on the SDCS-POW-1 itself. It is a passive supply board — no firmware, no configuration. Seat the new board, reconnect the connector, and restore power.
• On first power-up, verify all supply rails at the test points before enabling the drive. The CON board will self-initialize once rails are stable.
• If the drive was previously running a custom parameter set, no re-parameterization is required — parameters are stored on the CON board’s EEPROM, not on the POW-1.
• Run a no-load test at minimum speed reference before reconnecting the motor. Confirm no faults for at least 10 minutes of continuous operation.

Firmware Note: The SDCS-POW-1 carries no firmware. However, if you are also replacing the SDCS-CON-2 or CON-3 board simultaneously, verify the firmware version on the new CON board matches your application’s parameter set. Mismatched firmware can cause unexpected behavior on legacy DCS 400 installations.

Reliability in Harsh Conditions

The DCS 400 platform was designed for heavy industrial environments — paper mills, steel processing lines, crane systems — and the SDCS-POW-1 was built to the same standard. The board uses industrial-grade components rated for continuous operation in ambient temperatures up to 55 °C. Conformal coating on the PCB provides resistance to condensation and airborne contaminants common in foundry and chemical plant environments.

Vibration resistance meets IEC 60068-2-6 test profiles applicable to drive-mounted electronics. In crane and hoist applications where mechanical shock is a daily reality, the board’s through-hole construction on critical power components provides significantly better long-term reliability than surface-mount-only designs. The edge connector is gold-plated to resist oxidation in humid coastal or marine-adjacent installations.

Units supplied from our Xiamen stock are stored in climate-controlled conditions with humidity maintained below 60% RH. Each board is individually sealed in anti-static ESD packaging and inspected before dispatch. We do not ship boards that show any sign of prior installation, pin damage, or PCB discoloration.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, we offer same-day dispatch on orders confirmed before 15:00 CST.

Typical transit times from Xiamen: Southeast Asia 1–2 business days, Europe 3–5 business days, North America 3–5 business days, Middle East and Africa 4–7 business days. All shipments include a commercial invoice, packing list, and certificate of origin. HS code documentation is provided for customs clearance. We handle export licensing requirements for controlled industrial components.

For plant shutdowns where every hour counts, contact us directly on WhatsApp for real-time stock confirmation and booking. We will provide a tracking number within 2 hours of dispatch.
