ABB 3BHE007211R0101 XVC768AE101 DDCS Controller

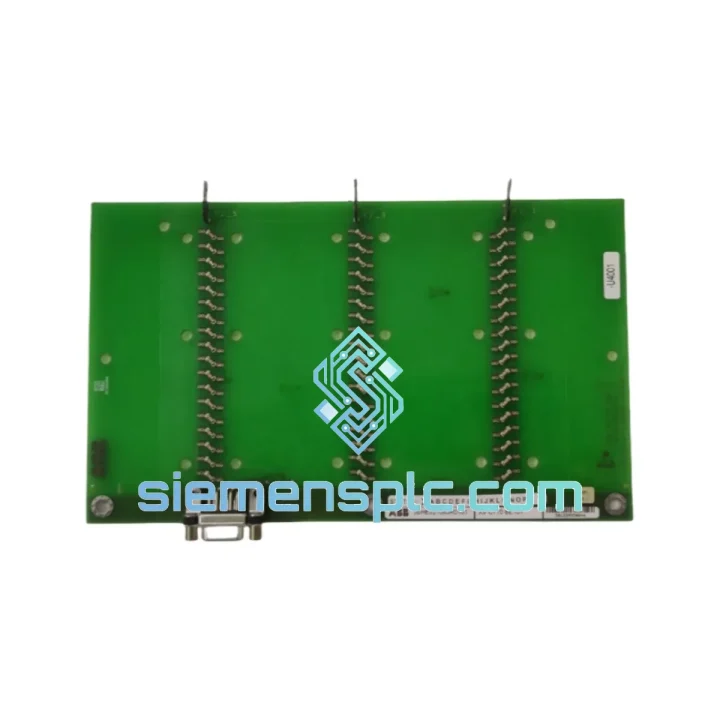

ABB 3BHE007211R0101 XVC768AE101 — DDCS Fiber Vision Controller: Stop the Clock on Your ACS800 Downtime

Your ACS800 drive cabinet just went dark. The DDCS fiber ring is silent, the SF fault is latched, and every minute the line sits idle is money bleeding out of your operation. You don’t need a lead-time estimate — you need the ABB 3BHE007211R0101 / XVC768AE101 on a plane today. We have it. It’s on the shelf in Xiamen, ESD-bagged, inspected, and ready to dispatch. Confirm before 14:00 CST and it ships the same day. No broker chain. No “checking with supplier.” No excuses.

This is the exact card that sits at the heart of the ACS800 and AC800M drive communication architecture — the DDCS fiber vision controller that bridges the high-voltage power section to the control intelligence above it. When it fails, nothing else on that ring works. When you replace it correctly, the line comes back. We’ve shipped this module to paper mills in Finland, cement plants in the UAE, and steel rolling lines in India. The process is the same every time: confirm, pack, dispatch, track.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After years of field work on ACS800 installations, the XVC768AE101 fails in three recognizable patterns. Identifying the right one before you pull the card saves you from chasing ghosts — and from ordering a replacement you don’t actually need yet.

Fault Pattern A — Recurring SF Fault, Clears on Power Cycle, Returns Within Minutes
The DDCS optical transceiver is degrading. Before condemning the card, clean both TX and RX fiber ports on the XVC768AE101 and the corresponding master controller port using an IEC 61300-3-35 compliant cleaning kit. Inspect end-faces under magnification if available — a contaminated or cracked end-face produces an identical symptom to a dead transceiver. If cleaning holds the fault off for more than 24 hours but it returns, the transceiver is marginal. Order the replacement now and plan the swap at the next maintenance window rather than waiting for a hard failure that takes you down mid-shift.

Fault Pattern B — Entire DDCS Ring Drops Simultaneously
A failing XVC768AE101 on a single drive can collapse communication to every node on the ring segment. The master controller sees all drives go silent at once — this is routinely misdiagnosed as a master controller fault or a fiber cable break. Isolate each drive from the ring one at a time by temporarily bypassing it with a loopback fiber. The drive whose removal restores ring communication is the one with the failing card. This isolation procedure takes 15 minutes and eliminates hours of misdirected troubleshooting.

Fault Pattern C — Option Module Incompatibility Fault After Replacement
If the replacement card was sourced from a different ACS800 hardware revision, the drive’s main control board may reject it with an incompatibility fault. Check the two-character hardware revision suffix on the card edge label against the revision table in ABB ACS800 Hardware Manual 3AFE64527592. A mismatched revision requires a revision-matched unit. Contact us with your drive’s serial number before ordering — we will confirm compatibility and ship the correct revision.

Replacement Procedure — Step by Step

1. Back up parameters first. Use DriveWindow or DriveStudio to export the complete parameter set before touching hardware. The replacement XVC768AE101 ships blank. Without a backup, you are rebuilding the drive configuration from memory.
2. Isolate supply and verify DC bus discharge. Confirm DC bus voltage is below 50 V with a calibrated meter before opening the cabinet. The ACS800 DC bus holds charge for up to 5 minutes after isolation — do not rush this step.
3. Photograph fiber routing before disconnection. The XVC768AE101 has multiple DDCS channels. A single swapped TX/RX pair after reinstallation produces a communication fault that is difficult to trace without a reference photograph. Take it before you disconnect anything.
4. Verify DDCS node address on the replacement card. Check the node address DIP switch or software parameter against the original setting. A duplicate node address on the ring causes all nodes to drop — the same symptom as Fault Pattern B. Confirm the address before powering up.
5. Seat the card with firm, even pressure. The backplane connector requires deliberate engagement. A partially seated connector produces intermittent DDCS faults under vibration — the hardest fault pattern to diagnose in the field. Confirm both locking tabs click into place.
6. Restore parameters and verify Group 98. Upload the saved parameter file. Confirm parameter group 98 (Option Modules) shows the XVC768AE101 recognized in the correct slot. The drive will not enable the vision feedback loop until this registration is confirmed.
7. No-load test before reconnecting the process. Run the drive through its full speed reference range at no load. Confirm all feedback signals are present and within tolerance before reconnecting the mechanical load.

Reliability in Harsh Conditions

The XVC768AE101 was not designed for a server room. It was designed for the inside of an industrial drive cabinet — a place where the DC bus generates voltage transients exceeding 1,200 V during regenerative braking, where ambient temperatures inside the enclosure routinely reach 50 °C, and where low-frequency vibration from the driven machinery is a constant background condition.

The DDCS fiber optic interface provides complete galvanic isolation between the vision controller and the drive’s high-voltage power section. There is no conductive path for transient energy to follow into the card’s logic circuitry. Copper-interface cards in the same environment accumulate transient damage over months and fail without warning. The XVC768AE101’s fiber interface is immune to this failure mode by design.

The PCB substrate is rated for continuous operation at 55 °C ambient — sufficient for the internal temperature of most industrial drive enclosures without supplemental cooling. Conformal coating on the PCB surface prevents condensation-induced leakage currents on high-impedance signal traces. This is a critical protection in coastal and tropical installations where daily temperature cycling drives repeated condensation events inside inadequately sealed cabinets. Solder joint fatigue from continuous low-frequency vibration — the failure mode that kills cards in rolling mills, compressor stations, and marine propulsion systems — is not a concern for this card under normal operating conditions.

Every unit we dispatch has been stored under climate-controlled conditions with continuous ESD protection and desiccant packaging. Thermal cycling and humidity exposure in uncontrolled storage degrade electrolytic capacitors and optical transceivers before the card ever reaches the field. We do not warehouse stock in uncontrolled environments. If a unit does not meet our inspection criteria, it does not ship.

Global Express Logistics

Our warehouse is in Xiamen — a primary Chinese export gateway with direct DHL and FedEx hub access. The XVC768AE101 is physically here, not at a supplier waiting to be sourced. When you confirm an order, the pick-and-pack workflow starts immediately.

Dispatch Cutoff: Orders confirmed before 14:00 CST ship the same business day. Orders confirmed after 14:00 CST ship the following morning. We do not batch orders or hold shipments for consolidation.

Estimated Transit Times from Xiamen (DHL Express):

• Europe (Germany, Netherlands, Poland, UK): 3–5 business days
• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South Asia (India, Pakistan, Bangladesh): 3–5 business days

FedEx International Priority is available where FedEx holds a transit advantage to your specific destination. We select the carrier with the fastest confirmed delivery time at the moment of dispatch — not the cheapest option.

Shipment Documentation: Every shipment includes a commercial invoice with HS code 8537.10 classification, a detailed packing list, and our inspection report. Customers requiring additional import clearance support can request a product description letter on company letterhead for their customs broker.

Tracking: A tracking number is sent by email within 2 hours of dispatch. For emergency orders, we send a direct WhatsApp notification with the tracking link — no need to monitor your inbox. If your line is down right now, skip the contact form and message us directly on WhatsApp. We monitor for emergency procurement requests outside standard business hours.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
