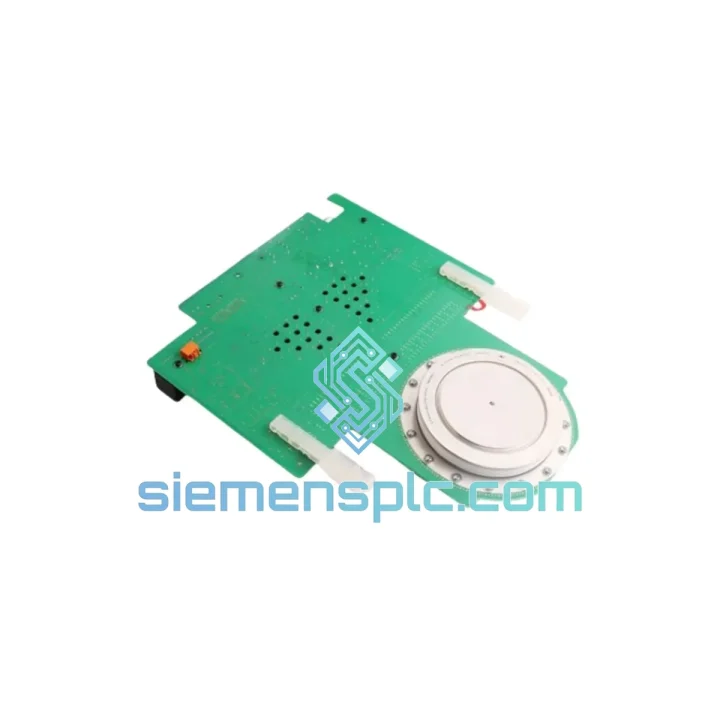

ABB 3BHE019958R0101 Excitation Control Board

ABB 3BHE019958R0101 UAD206 A101 — Stop the Clock on Your Downtime

Every minute a generator or synchronous drive sits idle costs real money. When the UAD206 A101 excitation control board fails, you’re not just looking at a hardware swap — you’re racing against production losses, contractual penalties, and the pressure of an entire plant waiting on one board. We stock the ABB 3BHE019958R0101 precisely for this moment. Verified units, packed and ready to move from Xiamen within hours of order confirmation. No waiting on factory lead times. No chasing distributors across time zones.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of UNITROL excitation failures in the field, the UAD206 A101 board tends to surface three recurring failure signatures. Knowing them before you pull the cabinet door saves you from chasing phantom faults.

Fault 1 — AVR Loop Instability / Voltage Hunting: If the generator terminal voltage oscillates ±3–8% with no load change, the UAD206 A101’s analog signal conditioning stage is the first suspect. Check the PT secondary input terminals for loose connections before condemning the board. If connections are solid and the oscillation persists across multiple AVR gain settings, the board’s op-amp stage has drifted — replace the module.

Fault 2 — Loss of Excitation (LOE) Trip with No Upstream Cause: A clean LOE trip that clears on reset but recurs within minutes typically points to the board’s internal power rail dropping below threshold. Measure the +5V and ±15V rails on the board’s test points. Deviation beyond ±5% confirms the onboard DC/DC converter is failing. Do not attempt to re-energize the machine repeatedly — each restart stresses the thyristor bridge.

Fault 3 — Communication Timeout Alarms (UNITROL Supervisory): Serial communication dropouts between the UAD206 A101 and the UNITROL supervisory controller are often misdiagnosed as cable faults. If cable continuity checks out, the board’s UART transceiver IC is the culprit. This is a board-level failure — field repair is not practical.

Replacement Procedure — Key Steps:

• De-energize the excitation cabinet and verify zero voltage on the thyristor bridge DC bus before opening the module rack.
• Record the existing DIP switch configuration on the UAD206 A101 before removal. Photograph both sides of the board. The switch settings encode AVR gain, droop compensation percentage, and communication baud rate — losing this data means a full recommissioning from scratch.
• The replacement board ships with factory-default DIP switch positions. Replicate the photographed configuration exactly before insertion.
• If your UNITROL system runs firmware below version 3.x, verify firmware compatibility with the replacement board’s hardware revision code (printed on the board label, format: HW REV X.X). Mismatched hardware/firmware revisions can cause silent AVR parameter corruption.
• After insertion, perform a no-load voltage build-up test at reduced field current before connecting to the grid. Confirm terminal voltage stability for a minimum of 5 minutes before synchronizing.
• Clear all latched fault codes from the UNITROL supervisory HMI after replacement. Residual fault history can mask new alarms during the post-replacement monitoring window.

Reliability in Harsh Conditions

Power generation environments are unforgiving. Excitation cabinets in hydro plants deal with persistent moisture ingress. Gas turbine auxiliaries run at sustained elevated ambient temperatures. Coastal and offshore installations expose electronics to salt-laden air that accelerates PCB corrosion. The ABB 3BHE019958R0101 was engineered with these realities in mind.

The board’s PCB substrate uses a high-Tg laminate that maintains dimensional stability under thermal cycling — critical in applications where the excitation system starts and stops multiple times per day. Conformal coating on the signal processing section provides a barrier against humidity and particulate contamination, reducing the risk of creepage failures on high-impedance analog nodes.

Vibration resistance is addressed through reinforced component mounting on the board’s heavier passive components — transformers and bulk capacitors are secured with additional adhesive bonding beyond standard IPC-A-610 requirements. This matters in diesel generator sets and turbine-driven applications where structural vibration is continuous rather than incidental.

EMI immunity is built into the board’s layout: analog signal traces are routed away from switching power supply sections, and the board includes dedicated ground planes that suppress common-mode noise from the thyristor firing pulses — a noise source that routinely corrupts lesser-designed control boards in the same cabinet.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how an urgent order moves:

• Order Confirmed Before 14:00 CST: Same-day packing and handover to DHL/FedEx courier. Export documentation (commercial invoice, packing list, HS code declaration) prepared in parallel — no delays at customs clearance.
• DHL Express Worldwide: Southeast Asia and East Asia destinations typically receive within 2–3 business days. Europe and Middle East: 3–5 business days. Americas: 4–6 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Transit times comparable to DHL.
• Tracking: AWB number provided within 2 hours of handover. Real-time tracking link sent directly to your email or WhatsApp.
• Export Compliance: All shipments include accurate HS code classification and declared value documentation. We handle CITES, dual-use, and EAR99 classification checks as standard — no surprises at destination customs.
• Emergency Freight: For critical plant shutdowns, we can arrange next-flight-out courier service from Xiamen Gaoqi International Airport. Contact us directly to activate this option.

Every unit ships in anti-static packaging with foam cushioning inside a double-wall carton. Fragile and ESD-sensitive labels are applied externally. Insurance coverage is available on request for high-value shipments.
