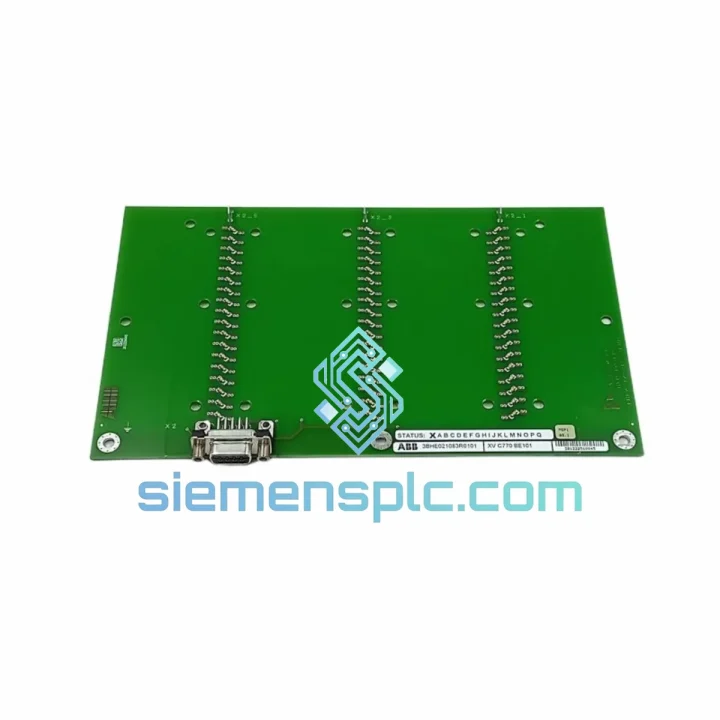

ABB 3BHE021083R0101 XVC770 BE101 Excitation Control Board

ABB 3BHE021083R0101 XVC770 BE101 — Stop the Clock on Your Generator Downtime

Your excitation system just tripped. The generator is offline. Every minute the turbine sits dark, your facility is bleeding money — and the maintenance window is already closing. The ABB 3BHE021083R0101 XVC770 BE101 excitation control board is the exact component standing between you and full restoration. We have it. It ships today from Xiamen.

This is not a generic listing. The 3BHE021083R0101 is the BE101 interface board within ABB’s XVC770 excitation control platform — a precision PCB that handles analog signal conditioning, field current feedback, and protection logic for synchronous generators in UNITROL 5000/6000 and AC800M-based excitation systems. When this board fails, the entire excitation chain collapses. Voltage regulation drops out, AVR alarms cascade, and the unit trips on field overcurrent or loss-of-excitation protection. There is no workaround. You need the board.

We stock this part specifically because power plants, steel mills, and petrochemical facilities cannot wait three weeks for an OEM order to clear. Our inventory is sourced from decommissioned ABB systems and verified against OEM documentation before it ever leaves our warehouse. Every unit is inspected, ESD-packed, and export-documented. When you order from siemensplc.com, you get a part that is ready to install — not a promise.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 3BHE021083R0101 BE101 board:

• AVR Alarm A031 / A032 (Field Current Measurement Fault): The BE101 handles field current analog feedback. A drifting or open-circuit measurement channel on this board triggers these alarms before the unit trips. If you see A031 intermittently under load, swap the BE101 before it becomes a forced outage.
• Loss-of-Excitation Trip (LOE): Corrupted feedback from the BE101 can cause the AVR to misread field current as zero, triggering LOE protection even when the field circuit is intact. Confirm the field circuit is healthy before condemning the excitation transformer — the board is the more likely culprit.
• Oscillating terminal voltage under load: Unstable analog I/O on the BE101 introduces noise into the AVR control loop. If PID tuning changes don’t stabilize the voltage, the board’s signal conditioning components are suspect.
• Communication fault between XVC770 chassis and AC800M controller: The BE101 also handles part of the backplane interface. A firmware mismatch or hardware fault here shows up as a communication timeout in the AC800M event log.

Replacement procedure — key checkpoints:

1. De-energize and isolate: Confirm field breaker is open and excitation transformer is de-energized. Lock out the field flashing circuit. The XVC770 chassis can hold residual charge — wait 5 minutes after power-down before handling boards.
2. Record DIP switch positions: The XVC770 chassis uses hardware DIP switches on some boards for address selection and analog range configuration. Photograph all switch positions on the BE101 and adjacent boards before extraction. The replacement board must match exactly.
3. Check firmware revision: The BE101 communicates with the AC800M via the XVC770 backplane. Confirm the firmware version on the replacement board matches the existing chassis firmware. Mismatched firmware versions cause communication faults on startup. ABB service tool (UNITROL Configuration Tool or Control Builder M) is required to verify and update if needed.
4. Connector seating: The BE101 uses a multi-row backplane connector. Partial seating causes intermittent faults that are extremely difficult to diagnose. Apply firm, even pressure until the board is fully seated and the locking lever engages.
5. Cold-start verification: After installation, perform a no-load excitation test before synchronizing to the grid. Monitor field current feedback on the UNITROL HMI and confirm the AVR control loop is stable. Do not synchronize until terminal voltage is steady within ±0.5% of setpoint for at least 60 seconds.
6. Clear fault history: Reset the AC800M event log and UNITROL fault buffer after successful commissioning. Residual fault codes from the failed board can mask new faults during the initial post-repair monitoring period.

Reliability in Harsh Conditions

The XVC770 BE101 is not a commercial-grade PCB. ABB designed this board for continuous operation inside generator excitation cabinets — environments that combine high ambient temperatures, vibration from rotating machinery, and humidity levels that would destroy standard electronics within months.

The board’s conformal coating protects the PCB substrate and component leads from condensation and corrosive atmospheres common in coastal power plants and offshore platforms. The through-hole construction used for high-stress components provides mechanical robustness against the low-frequency vibration transmitted from turbine foundations — a failure mode that destroys surface-mount-only designs over time.

Thermal management is handled through the XVC770 chassis forced-air cooling system, but the BE101’s component selection accounts for elevated junction temperatures during peak load conditions. Electrolytic capacitors are rated for extended service life at 85°C, not the 65°C parts used in commercial equipment. This matters in tropical climates where cabinet ambient temperatures regularly exceed 45°C.

Every unit we ship has been stored in climate-controlled conditions with ESD protection from the moment it left the original system. We do not sell boards that have been sitting in uncontrolled warehouse environments for years — moisture ingress and electrostatic damage from improper storage are the two most common causes of “new” board failures on installation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with direct DHL Express and FedEx International Priority services to over 220 countries and territories. Here is exactly what happens after you confirm your order:

• Same-day dispatch: Orders confirmed before 15:00 CST ship the same business day. Orders after cutoff ship the following morning. No exceptions, no excuses.
• ESD-safe packaging: The board is placed in an anti-static bag, surrounded by foam-lined rigid packaging, and sealed. The outer carton is labeled with part number, condition, and handling instructions.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) are prepared and attached to the shipment. For destinations requiring a Certificate of Origin, we provide it on request.
• DHL Express transit times: Europe 2–3 business days | North America 3–4 business days | Southeast Asia 1–2 business days | Middle East 3–4 business days | South America 4–6 business days.
• Tracking: A tracking number is sent to your email within 2 hours of dispatch. We monitor all shipments and proactively contact you if customs clearance requires additional documentation.
• Customs support: We have experience exporting industrial automation components to over 50 countries. If your customs authority requires additional technical documentation or an end-user declaration, our team handles it the same day.

For plant-down emergencies, contact us directly on WhatsApp before placing your order. We can confirm stock, prepare documentation, and have the package at the DHL counter within 3 hours of your confirmation.
