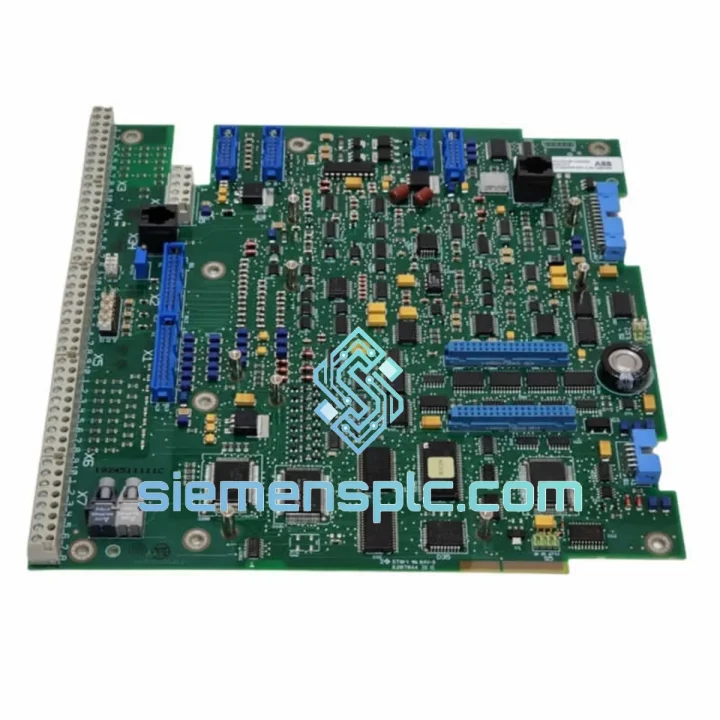

ABB HBHE013940R0002 UNS0866B-P DCS Control Card – UNITROL Series

ABB HBHE013940R0002 UNS0866B-P – DCS Interface Card for UNITROL Excitation & AC800M Control Platforms

The ABB HBHE013940R0002, carrying the module designation UNS0866B-P, is a printed-circuit-board-level control and interface card engineered for deployment within ABB’s UNITROL excitation control family and the broader AC800M / Symphony Plus distributed control ecosystem. Its primary function is to serve as a signal-conditioning and supervisory interface layer between the high-level process controller and the power-electronics stage of the excitation or regulation loop. Unlike generic I/O cards, the UNS0866B-P integrates dedicated hardware logic for real-time setpoint arbitration, fault-state latching, and inter-board communication — functions that are critical in generator excitation systems where response latency directly affects grid stability margins.

In a typical UNITROL 5000 or UNITROL 6000 excitation system, the card occupies a defined slot within the regulator rack and communicates with the main CPU board via the internal UNITROL backplane bus, operating at a fixed cycle time synchronized to the firing-pulse generator. This deterministic coupling ensures that voltage reference corrections computed by the AVR algorithm are applied to the thyristor gate-control stage within a single firing interval — typically 3.3 ms at 50 Hz grid frequency — without software-layer jitter. The hardware revision suffix R0002 indicates the second production revision, which incorporates updated EMC filtering components on the analog input front-end compared to the R0001 baseline.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Analog Front-End Architecture: The four differential analog input channels on the UNS0866B-P each pass through a passive RC low-pass filter (cutoff ≈ 1 kHz) before reaching the multiplexed 12-bit successive-approximation ADC. This two-stage filtering — passive hardware followed by digital averaging in the on-card FPGA — suppresses high-frequency switching noise generated by the thyristor bridge, which can reach dV/dt values of 500 V/μs in high-power excitation applications. The R0002 revision upgraded the input-stage common-mode rejection ratio (CMRR) to ≥ 80 dB at 50 Hz, a measurable improvement over the R0001 baseline, directly reducing measurement error in environments with strong ground-loop interference.

Optical Isolation on Digital I/O: All eight configurable digital channels employ high-speed optocouplers with a propagation delay of ≤ 2 μs, providing galvanic isolation between the field-side 24 VDC logic and the backplane logic domain. This isolation barrier prevents ground-potential differences — common in large generator halls where earth-grid impedance can vary by several volts — from injecting common-mode currents into the control electronics. The optocoupler selection also meets the creepage and clearance requirements of IEC 60664-1 for Pollution Degree 2 environments.

FPGA-Based Supervisory Logic: An on-board FPGA handles real-time tasks that cannot tolerate operating-system scheduling latency: watchdog supervision of the backplane communication frame, hardware-latched fault-state registers, and the firing-angle limit enforcement logic. When the FPGA detects a missed backplane frame (timeout > 1 cycle), it autonomously drives the digital outputs to a pre-configured safe state within 100 μs — independent of the host CPU. This fail-safe architecture is a fundamental requirement for excitation systems operating under IEC 61508 SIL 1 guidance.

EMC Design Measures: The PCB layout follows a four-layer stackup with dedicated ground planes separating the analog and digital domains. Ferrite beads are placed on all power-supply rails entering the analog section, and the card edge connector pins are grouped with ground-shield pins interleaved between signal pairs to reduce crosstalk on the backplane. The R0002 revision added transient-voltage suppressor (TVS) diodes on all digital I/O lines, clamping surge transients to ±40 V in compliance with EN 61000-4-5 Level 3 (2 kV / 1 Ω).

System Integration Benefits

• Deterministic Backplane Synchronization: The card’s FPGA locks its internal processing cycle to the UNITROL backplane frame clock, eliminating software-layer jitter and ensuring that AVR setpoint corrections reach the thyristor gate-control stage within a single 3.3 ms firing interval at 50 Hz — a requirement for stable voltage regulation under sudden load steps.
• Transparent Fault Diagnostics: Hardware-latched fault registers retain the exact fault code and timestamp at the moment of trip, surviving a subsequent power cycle. Maintenance engineers can read these registers via the UNITROL service tool without requiring a system restart, reducing mean time to diagnose (MTTD) from hours to minutes.
• Hot-Swap Compatible Rack Design: The card is designed for insertion and extraction under live backplane power (with appropriate interlock procedure), minimizing planned outage duration during scheduled maintenance windows in continuous-process industries.
• Scalable I/O Mapping: The eight configurable digital channels can be remapped via the AC800M Control Builder software without hardware modification, allowing the same card to serve as a trip-input receiver, status-output driver, or inter-panel communication interface depending on application requirements.
• Redundancy Arbitration Support: In dual-channel redundant UNITROL configurations, the UNS0866B-P participates in the hardware-level redundancy arbitration protocol, enabling bumpless transfer between active and standby channels with a switchover time of < 10 ms — well within the excitation system’s voltage recovery time constant.
• Reduced Wiring Complexity: The card’s differential analog inputs accept direct connections from current transformers (CTs) and voltage transformers (VTs) without requiring external signal conditioners, reducing panel wiring density and associated installation error risk.
• Firmware-Independent Operation of Safety Functions: The FPGA-resident watchdog and safe-state logic operate independently of the host CPU firmware version, meaning that a firmware upgrade on the AC800M controller does not affect the card’s protective behavior — a significant advantage during rolling software updates in live plant environments.
• Long-Term Spare Parts Availability: The HBHE013940R0002 is cataloged as a field-replaceable unit (FRU) within ABB’s global spare parts system, with documented cross-references to successor revisions, ensuring that procurement teams can plan multi-year maintenance contracts with confidence.

Quality Assurance & Global Logistics

Every HBHE013940R0002 unit supplied by siemensplc.com is sourced exclusively from ABB’s authorized distribution network or verified OEM-surplus channels with full traceability documentation. Each card undergoes a four-stage incoming inspection protocol before dispatch:

1. Visual & Mechanical Inspection: PCB surface, connector pin integrity, component seating, and label authenticity are verified against ABB’s published reference photographs and serial-number format specifications.
2. Power-On Functional Test: The card is energized in a UNITROL-compatible test rack. Backplane communication handshake, analog channel offset/gain calibration, and digital I/O switching are verified against factory acceptance test (FAT) criteria.
3. Anti-Counterfeit Verification: PCB silk-screen markings, date codes, and component lot numbers are cross-checked against ABB’s component traceability database. Units with inconsistent markings are quarantined and returned to the supply chain.
4. ESD-Safe Packaging: Cleared units are packed in anti-static bags with desiccant, placed in foam-lined cartons, and sealed with tamper-evident tape. Shipping labels include the inspection batch number for full end-to-end traceability.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling same-day dispatch for in-stock orders placed before 14:00 CST. Standard express delivery via DHL / FedEx / UPS reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days. EXW Xiamen terms are available for freight-forwarder consolidation. A 12-month warranty covers all supplied units, with replacement or full refund guaranteed for any unit that fails to meet the agreed specification.
