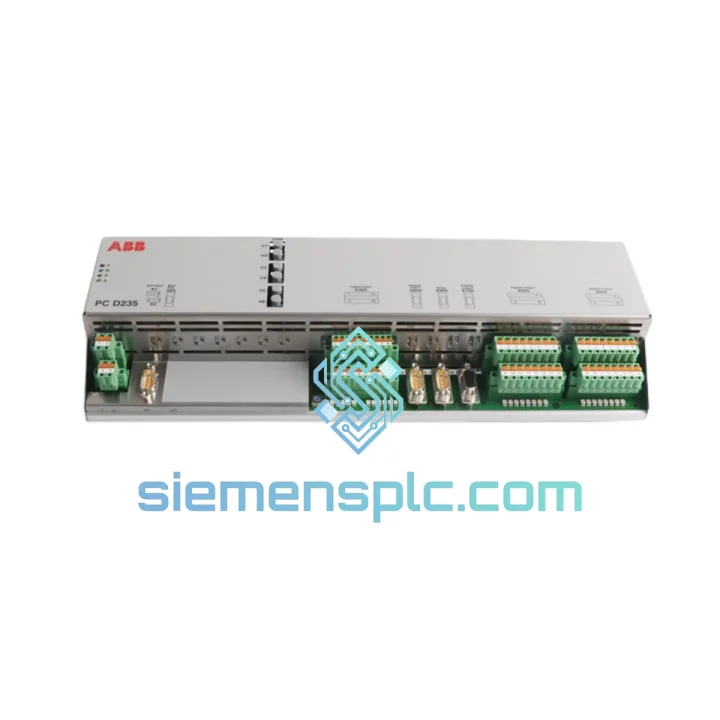

ABB 3BHE032025R0101 PCD235 A101 Excitation Control Module

ABB 3BHE032025R0101 PCD235 A101 – Stop the Clock on Your Generator Downtime

Every minute your generator sits offline, the losses compound. A failed excitation control module doesn’t just trip an alarm — it halts turbines, kills reactive power compensation, and puts your entire grid-tie agreement at risk. The ABB 3BHE032025R0101 (PCD235 A101) is the exact module your UNITROL excitation system needs to get back online. We stock it. We test it. We ship it — fast.

Our Xiamen warehouse holds verified units ready for same-day dispatch via DHL Express or FedEx Priority. Whether you’re managing a thermal plant, a marine alternator, or an industrial cogeneration facility, this module ships to your site before your next maintenance window closes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module, rule out the obvious. Nine times out of ten, a PCD235 A101 replacement is triggered by one of these fault patterns:

• AVR Instability / Hunting — Terminal voltage oscillates ±3–8% with no load change. The PID loop inside the module has lost its reference. Check for firmware corruption first; if a reflash doesn’t stabilize it, the analog front-end on the PCD235 board is suspect.
• Excitation Loss Alarm (EXC LOSS / F401) — Field current drops to zero or reads erratic on the HMI. Verify the thyristor bridge is firing correctly before condemning the module. If the bridge checks out, the PCD235 A101’s current measurement circuit is the next failure point.
• Communication Fault on Excitation Bus — Controller logs a persistent backplane communication error pointing to the PCD235 slot. Reseat the module first. If the fault persists after reseating, the backplane connector pins on the module are likely damaged or the onboard FPGA has failed.
• Field Forcing Failure During Fault Ride-Through — Generator trips on undervoltage during a network fault instead of riding through. The PCD235 A101 handles the ceiling voltage command; a degraded module cannot respond fast enough.

Replacement Procedure — Key Steps:

1. Parameter Backup First. Before powering down, export the full parameter set from your UNITROL controller via the engineering tool (UNITROL-PC or equivalent). The PCD235 A101 does not store parameters independently — they live in the controller. A backup takes 5 minutes and saves hours of recommissioning.
2. Firmware Version Match. Check the firmware label on the outgoing module. The replacement must run the same firmware revision or a compatible upgrade. Mismatched firmware between the PCD235 and the host controller causes immediate communication faults on startup. Contact us with your controller serial number — we’ll confirm compatibility before shipping.
3. ESD Protocol. The PCD235 A101 contains sensitive analog measurement circuitry. Ground yourself and the module before handling. Use the supplied ESD bag for transport within the plant.
4. Slot Address / DIP Switch Verification. In multi-module excitation systems, confirm the slot address configuration matches the outgoing module. Some UNITROL configurations use hardware addressing via DIP switches on the module edge — photograph the outgoing module before removal.
5. Power-On Sequence. Restore power to the excitation controller before enabling field current. Monitor the HMI for communication confirmation from the PCD235 slot. Allow 30–60 seconds for initialization before issuing an excitation enable command.
6. Post-Swap Functional Check. Run the generator at no-load and verify terminal voltage regulation within ±0.5% of setpoint. Confirm reactive power response by stepping the voltage setpoint ±5%. Log the results before returning the unit to service.

Reliability in Harsh Conditions

Generator excitation environments are among the most electrically hostile in industrial automation. The PCD235 A101 is built to operate where lesser boards fail:

Vibration Resistance: Excitation cubicles mounted adjacent to large rotating machines experience continuous low-frequency vibration. The PCD235 A101’s PCB layout uses conformal coating and through-hole component anchoring at critical stress points, preventing solder joint fatigue that kills surface-mount-only designs within 18–24 months in these environments.

Thermal Cycling: Generator rooms swing from cold startup conditions to sustained high-ambient operation. The module’s analog measurement circuits are temperature-compensated across the full 0–55 °C operating range, maintaining voltage regulation accuracy without drift correction from the operator.

EMC Immunity: Thyristor-based excitation systems generate significant conducted and radiated interference. The PCD235 A101 meets IEC 61000-4 series immunity requirements — surge, burst, ESD, and conducted RF — ensuring the control loop remains stable even when the power electronics are switching at full load.

Humidity & Condensation: Coastal plants, offshore platforms, and tropical installations expose electronics to sustained high humidity. The conformal coating on the PCD235 A101 provides protection against moisture ingress, preventing the dendritic growth and leakage currents that cause intermittent faults in uncoated boards.

Units supplied by us are inspected for coating integrity and connector condition before dispatch. Any unit showing signs of delamination, corrosion, or physical damage is rejected — not refurbished and resold.

Global Express Logistics

Our dispatch hub is located in Xiamen, China — a major international freight gateway with direct DHL and FedEx connections to over 220 countries. Here’s how your order moves from our shelf to your site:

• Day 0 — Order Confirmation: Payment confirmed before 14:00 CST triggers same-day picking, testing verification, and ESD packaging. Export documentation (commercial invoice, packing list, HS code declaration) is prepared in parallel.
• Day 1 — Customs Clearance & Handover: Shipment handed to DHL Express or FedEx Priority with pre-lodged export customs declaration. Tracking number issued to you within 2 hours of carrier pickup.
• Day 2–4 — In-Transit: DHL Express typically delivers to Europe in 2–3 business days, North America in 3–4 days, Southeast Asia in 1–2 days. FedEx Priority International timelines are comparable. We select the carrier with the fastest confirmed transit time to your destination at time of booking.
• Destination Customs: We declare accurate commercial values and HS codes (typically 8537.10 for control modules) to prevent customs holds. For DDP (Delivered Duty Paid) shipments, we pre-pay import duties — your team receives the package without additional charges at the door.
• Proof of Delivery: Electronic POD with signature confirmation sent to you automatically. All shipment records retained for 5 years for warranty and audit purposes.

For critical shutdowns where every hour counts, contact us directly on WhatsApp — we can arrange weekend dispatch and priority freight upgrades outside standard business hours.
