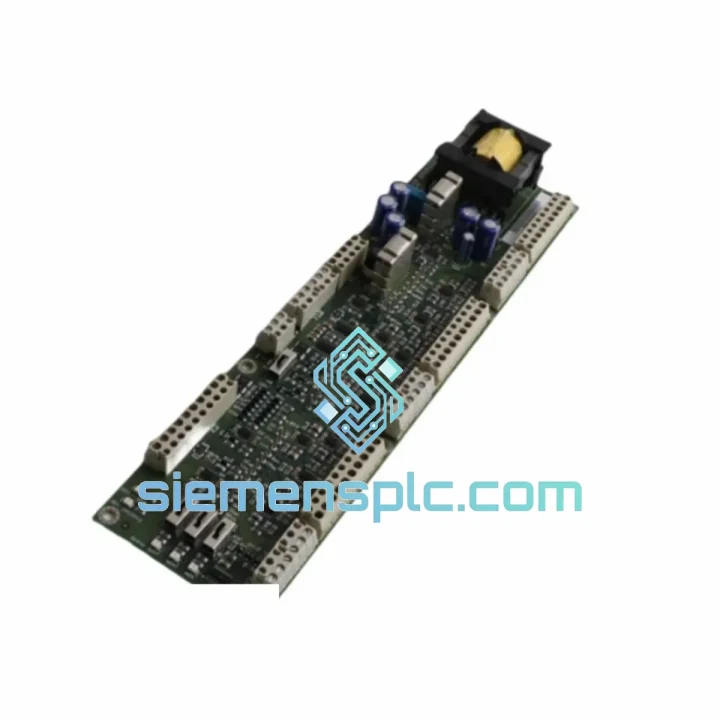

ABB PCD232A 3BHE022293R0101 Excitation Control Module

ABB PCD232A 3BHE022293R0101 — Stop the Bleed: Get Your Excitation System Back Online Now

Your generator is offline. The excitation control board has failed. Every hour the turbine sits dark costs you real money — in lost generation, in penalty clauses, in the pressure building from operations management. The ABB PCD232A (3BHE022293R0101) is the pulse regulator board at the heart of the Unitrol 5000 automatic voltage regulator (AVR) system. When it fails, there is no workaround. You need an exact replacement, tested and ready to drop in — not a six-week factory lead time.

We stock the PCD232A 3BHE022293R0101 in Xiamen and ship globally via DHL Express and FedEx Priority. Most orders clear customs and arrive on-site within 3–5 business days. That is the difference between a week of downtime and getting back to full generation capacity before the weekend.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The PCD232A is the thyristor firing board inside the Unitrol 5000 excitation cubicle. It generates the gate pulses that trigger the thyristor bridge, controlling field current to the generator rotor. When this board fails, the AVR loses the ability to regulate terminal voltage — the generator either trips on over-excitation, under-excitation, or simply fails to build voltage at all.

Common failure signatures that point to PCD232A:

• AVR fault code F01 or F02 (firing circuit fault) on the Unitrol 5000 HMI panel
• Generator trips immediately on excitation enable — no voltage buildup
• Asymmetric thyristor firing detected by the diagnostic software (one or more phases not firing)
• Visible burn marks or component damage on the PCB near the gate drive optocouplers
• Intermittent excitation loss under load — board passes cold test but fails at operating temperature

Before you pull the board, verify these first:

• Check the 24 VDC auxiliary supply to the firing board — a sagging supply rail causes identical symptoms
• Inspect the ribbon cable connector between PCD232A and the regulator board (PCD231A) for corrosion or bent pins
• Confirm the thyristors themselves are not shorted — a shorted thyristor will destroy a new firing board within seconds of energization

Replacement procedure notes:

• Power down the excitation cubicle completely and discharge the DC bus capacitors before handling — residual voltage on the thyristor bridge can be lethal
• The PCD232A is a direct plug-in replacement — no DIP switch or jumper reconfiguration is required for standard Unitrol 5000 builds
• After installation, perform a firing angle calibration via the Unitrol 5000 commissioning software before enabling excitation
• If your system is running firmware below V3.x, verify firmware compatibility with your ABB service engineer — some early firmware revisions have known issues with the R0101 hardware variant
• Log the replacement in the excitation system maintenance record and reset the fault history via the HMI before returning to service

Reliability in Harsh Conditions

The PCD232A was designed for continuous duty inside power generation equipment — environments that are unforgiving by definition. Generator excitation cubicles sit adjacent to rotating machinery, exposed to vibration spectra that would shake lesser electronics apart within months. ABB engineered the PCD232A board to withstand vibration levels per IEC 60068-2-6, with conformal coating on the PCB to resist condensation and airborne contaminants common in hydroelectric, thermal, and industrial power plants.

Operating temperature range extends to 55°C continuous — critical in tropical climates and enclosed switchgear rooms where ambient temperatures routinely exceed what standard industrial electronics can tolerate. The gate drive optocouplers are selected for long-term stability, maintaining consistent firing angles across the full thermal range without drift that would cause voltage regulation instability.

Units we supply have been stored in climate-controlled conditions and inspected for electrolytic capacitor health — a common failure point in boards that have been warehoused for extended periods. Where refurbished units are supplied, capacitors in the power supply section are replaced as standard practice before dispatch.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. When you confirm an order, we move fast:

• Same-day dispatch for orders confirmed before 14:00 CST
• DHL Express Worldwide — typical transit 2–4 business days to Europe, Middle East, Southeast Asia
• FedEx International Priority — 1–3 business days to North America and Australia
• Export documentation prepared in-house: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 / 8543.70 as applicable)
• ESD-safe packaging: anti-static bag, foam-lined carton, fragile labeling — the board arrives in the same condition it left our warehouse
• Tracking provided within 2 hours of dispatch — you can monitor the shipment in real time

For customers in regions with complex import requirements (India, Brazil, Russia), we have experience navigating customs documentation and can advise on the most efficient routing to minimize clearance delays.
