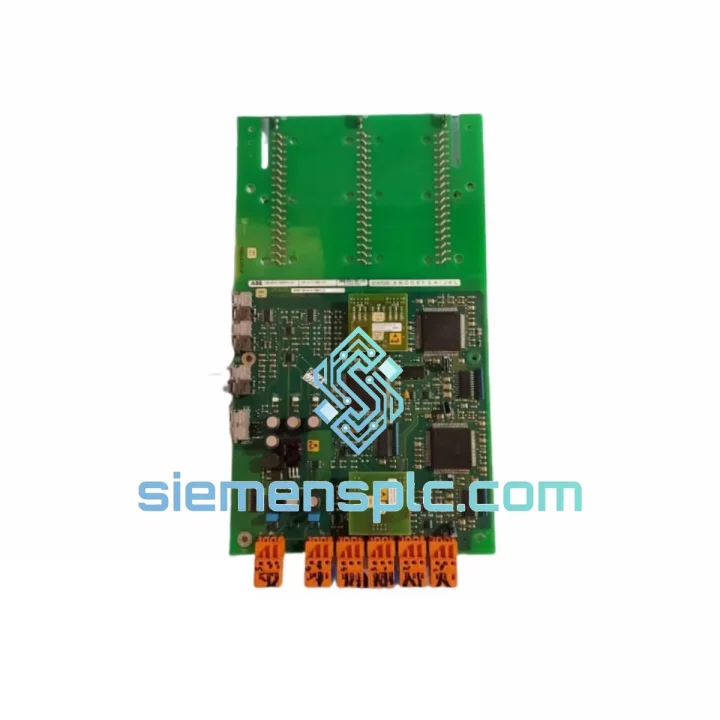

ABB 3BHE021889R0101 UF 21 BE101 ADCVI-Board

ABB 3BHE021889R0101 UF 21 BE101 — Stop the Bleeding. Every Hour of Downtime Costs You Real Money.

Your AC800M DCS rack just threw a fault. The ADCVI-Board is dead. Production is at zero. You’ve already called your local distributor — lead time is 8 weeks. That’s not an option. We stock the ABB 3BHE021889R0101 (UF 21 BE101) right now in Xiamen, and we can have it on a plane to you within 24 hours of order confirmation. No waiting. No excuses.

This is not a listing page. This is a field engineer’s direct line to the part that gets your plant back online. We’ve shipped this exact board to power stations in Germany, refineries in Saudi Arabia, and paper mills in Indonesia — all under emergency conditions. We know what you need and we know how fast you need it.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of AC800M field failures, here’s what actually matters when you’re swapping out the UF 21 BE101:

Common Failure Signatures:

• Fault Code 0x4A11 / AI Channel Fault: Analog input channels reporting fixed or erratic values — classic ADCVI board failure. Don’t waste time recalibrating the field transmitter first; check the board.
• Fault Code 0x3C08 / Internal Communication Error: The ADCVI board loses sync with the PM8xx processor module. Often misdiagnosed as a backplane issue. Swap the UF 21 BE101 before pulling the whole rack.
• Intermittent AI dropouts under load: Capacitor degradation on the ADC reference circuit. Thermal cycling accelerates this in high-ambient environments. If your plant runs above 45°C ambient, this board is a scheduled replacement item — not a surprise failure.
• All AI channels reading 0 mA / 0 V simultaneously: Power rail fault on the board itself. Confirm 24 VDC supply to the rack is stable before condemning the board, but if rail voltage is good, the UF 21 BE101 is the culprit.

Replacement Procedure — Field Notes:

1. Backup your configuration first. Use ABB Control Builder M to export the full project before touching hardware. Takes 3 minutes. Skipping this step has cost engineers entire shifts.
2. No address switches on this board. The UF 21 BE101 is auto-addressed by the AC800M backplane — no DIP switch configuration required. Seat it firmly and the controller will recognize it on next power cycle.
3. Firmware matching: Verify your PM8xx controller firmware version against the ADCVI board revision. Boards with hardware revision R0101 are compatible with AC800M firmware 5.1 and above. Running firmware below 5.0? Contact us — we may have an earlier hardware revision in stock.
4. ESD discipline is non-negotiable. This board has exposed ADC reference circuitry. One ungrounded touch can degrade measurement accuracy without triggering any fault code. Wrist strap, grounded mat, anti-static bag — every time.
5. Post-swap verification: After seating the new board, run a full AI channel loop check against your P&ID. Don’t just check that the fault cleared — verify actual mA readings against a calibrated source at 4 mA, 12 mA, and 20 mA.

Reliability in Harsh Conditions

The AC800M platform was engineered for continuous operation in environments that would destroy consumer-grade electronics. The UF 21 BE101 ADCVI-Board reflects that design philosophy at the component level.

The PCB substrate uses a high-Tg laminate rated for sustained thermal stress, resisting delamination in environments where ambient temperatures cycle repeatedly between cold startups and full-load heat generation. Conformal coating on the signal conditioning circuitry provides a barrier against humidity ingress — critical in coastal refineries, offshore platforms, and tropical process plants where relative humidity regularly exceeds 80%.

Vibration tolerance is addressed through reinforced solder joints on high-mass components and mechanical retention features on the edge connector. Plants running heavy rotating equipment — compressors, turbines, large pumps — generate continuous low-frequency vibration that fatigues standard PCB assemblies over time. ABB’s manufacturing spec for this board includes vibration testing per IEC 60068-2-6, covering the 5–150 Hz range at 1g acceleration.

EMI immunity is handled through shielded signal traces and onboard filtering on all analog input paths, ensuring that the ADC reference voltage remains stable even in electrically noisy environments with variable-frequency drives, large motor starters, and high-current bus bars in close proximity.

Every unit we ship from our Xiamen warehouse has been stored in climate-controlled conditions with humidity monitoring. Boards are kept in original anti-static packaging until the moment of dispatch. We do not sell shelf-worn stock.

Global Express Logistics

Our logistics operation is built around one assumption: your plant cannot wait. From our Xiamen warehouse, we execute the following process on every emergency order:

• Order Confirmation → Same-Day Dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders confirmed after 14:00 ship the following morning. No exceptions, no delays for internal processing.
• Carrier Selection: We use DHL Express and FedEx International Priority as primary carriers. Both offer door-to-door tracking and customs clearance support. For destinations with known DHL delays (certain Middle East and African routes), we default to FedEx or TNT based on current transit performance data.
• Transit Times: Southeast Asia: 1–2 business days. Europe: 2–3 business days. Middle East: 2–4 business days. Americas: 3–5 business days. These are real-world averages from our actual shipment history — not carrier marketing figures.
• Export Documentation: We prepare commercial invoice, packing list, and certificate of origin for every international shipment. For customers requiring ATA Carnet, CITES exemption letters, or specific customs commodity codes, contact us at order placement — we handle this routinely.
• Shipment Notification: You receive a tracking number and carrier link within 2 hours of dispatch. We monitor all active shipments and proactively contact you if any customs hold or carrier exception occurs.
• Packaging Standard: The UF 21 BE101 ships in a rigid outer carton with 50mm foam cushioning on all six faces, inner anti-static bag, and desiccant pack. The board arrives in the same condition it left our warehouse.

We have shipped to over 60 countries. Customs clearance is your responsibility, but we provide every document you need to make it straightforward.
