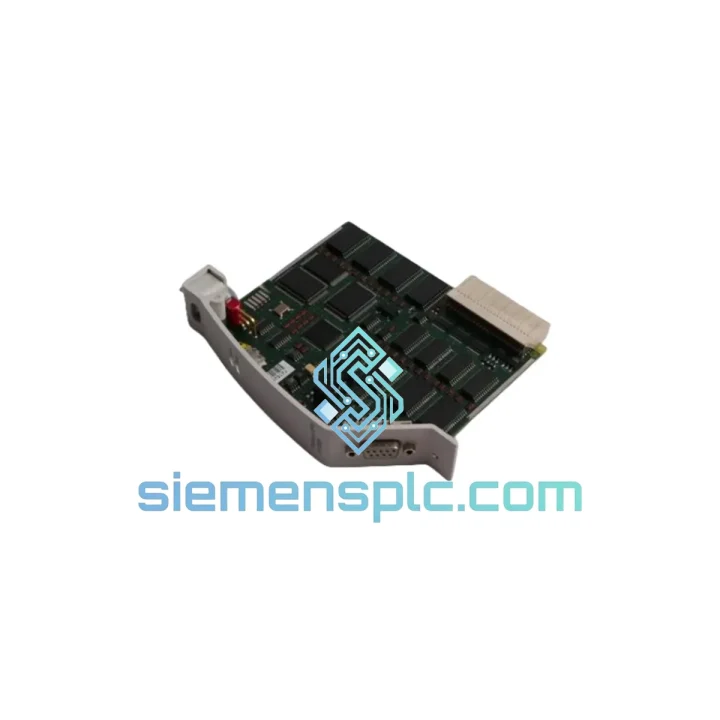

ABB 3BHE021889R0101 UFC721BE101 Excitation Control Board

ABB 3BHE021889R0101 UFC721BE101 — Stop the Bleed: Get Your Excitation System Back Online Before the Next Shift

Every hour a generator sits offline costs real money — lost megawatt-hours, contractual penalties, and the kind of pressure that makes plant managers age fast. The ABB 3BHE021889R0101 UFC721BE101 ADCVI Board is the analog-to-digital voltage interface at the heart of the AC800PEC excitation controller. When it fails, your AVR goes blind. Voltage regulation collapses. Grid synchronization is impossible. The unit trips. You know this already — that’s why you’re here.

We stock this board in Xiamen. It ships today via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive it within 3–5 business days. No waiting on factory lead times. No 8-week procurement cycles. One call, one shipment, one restart.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the UFC721BE101:

• AC800PEC logs fault code F1201 — ADCVI signal loss or F1205 — Voltage measurement channel fault. These point directly at this board before anything else.
• AVR output oscillates or hunts without a clear setpoint — the CPU is receiving corrupted or missing analog data from the voltage measurement chain.
• Excitation current reads zero or pegged at maximum on the HMI while field voltage is actually present — classic ADC rail failure.
• Board runs hot to the touch at the input conditioning section — a shorted input protection component is the usual culprit after a transient overvoltage event.

Replacement procedure — field-tested sequence:

1. De-energize and lock out the excitation cabinet. Confirm field breaker is open. Do not rely on software inhibit alone — this board sits in the live measurement path.
2. Record the slot address. The UFC721BE101 occupies a fixed slot in the AC800PEC rack. Photograph the rack layout and note the slot number before extraction. Incorrect re-insertion into an adjacent slot will cause a rack configuration mismatch fault on restart.
3. Check DIP switch settings on the failed board before removal. The UFC721BE101 carries hardware address switches (SW1) that define the channel mapping for the voltage measurement inputs. Replicate these settings exactly on the replacement board. Mismatch here causes the AVR to regulate against the wrong voltage reference — a dangerous condition.
4. Firmware compatibility check. Verify the AC800PEC CPU firmware version against the UFC721BE101 hardware revision. Boards with hardware revision R0101 are compatible with AC800PEC firmware 3.x and above. If your system is running firmware 2.x, contact us — we can source the correct hardware revision.
5. Seat the board firmly. The edge connector on this module is a 96-pin DIN 41612 type. Partial seating causes intermittent faults that are extremely difficult to diagnose remotely. Apply even pressure across the full board width.
6. Power-on sequence. Restore backplane power first, then enable the excitation controller. Monitor the AC800PEC diagnostic display for ADCVI channel initialization confirmation before closing the field breaker.
7. Calibration check. After replacement, verify the voltage measurement calibration via the AC800PEC commissioning tool (CAP505 or equivalent). The replacement board may require a zero-offset trim if the unit was not factory-calibrated to your specific PT ratio.

Pro tip from the field: If the fault clears on restart but returns within hours, suspect the backplane connector pins rather than the board itself. Clean the rack slot contacts with isopropyl alcohol and a non-conductive brush before condemning a second board.

Reliability in Harsh Conditions

The AC800PEC platform — and the UFC721BE101 specifically — was designed for environments that would destroy consumer-grade electronics in days. ABB’s manufacturing specification for this board requires it to survive continuous operation under conditions that are routine in power generation and heavy industry:

• Vibration: Qualified to IEC 60068-2-6 sinusoidal vibration testing — 10–150 Hz sweep, 1g acceleration. This covers the continuous low-frequency vibration present in turbine halls and compressor buildings where the excitation cabinet is often mounted directly on the machine foundation.
• Thermal cycling: The board’s conformal coating and component selection account for repeated thermal excursions between cold startup and full-load operating temperature. Solder joint fatigue — the silent killer of industrial PCBs — is mitigated by ABB’s lead-free alloy specification and controlled reflow profile.
• Humidity and condensation: The conformal coating applied to the UFC721BE101 provides protection against moisture ingress in environments where cabinet door seals degrade over time. This is particularly relevant for coastal power plants and offshore installations where salt-laden air is a constant threat to uncoated PCBs.
• Electromagnetic interference: The analog input section of this board operates in close proximity to high-current field circuits. ABB’s shielding and filtering design on the UFC721BE101 maintains measurement accuracy in environments with significant conducted and radiated EMI — a non-trivial engineering challenge for a precision ADC board.

Every unit we ship — whether new or tested-refurbished — undergoes visual inspection for coating integrity, connector condition, and component-level damage before it leaves our facility. We do not ship boards with lifted pads, corroded connectors, or evidence of prior repair without explicit disclosure.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. This is not a drop-ship arrangement. Stock is physically on our shelves.

• Order cutoff: Orders confirmed before 14:00 CST ship same day. Orders confirmed after cutoff ship next business day.
• Carrier options: DHL Express Worldwide (typical 3–5 days to Europe, Middle East, Southeast Asia), FedEx International Priority (2–4 days to North America), UPS Express Saver available on request.
• Packaging: Anti-static ESD bag, foam-lined rigid carton, moisture barrier outer wrap. The UFC721BE101 is a precision PCB — we treat it accordingly.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS code 8537.10 is applied for customs classification. We have experience clearing this part through customs in the EU, GCC countries, India, and Southeast Asia — we know which documentation customs authorities in each region require.
• Tracking: Waybill number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Emergency freight: For genuine plant-down situations, we can arrange next-flight-out courier on request. Contact us directly on WhatsApp for fastest response.

We have shipped to power plants in Malaysia, Indonesia, Saudi Arabia, the UAE, Egypt, Germany, and India within the past 12 months. If your procurement team requires a formal proforma invoice before payment, we issue it within 2 hours of inquiry.
