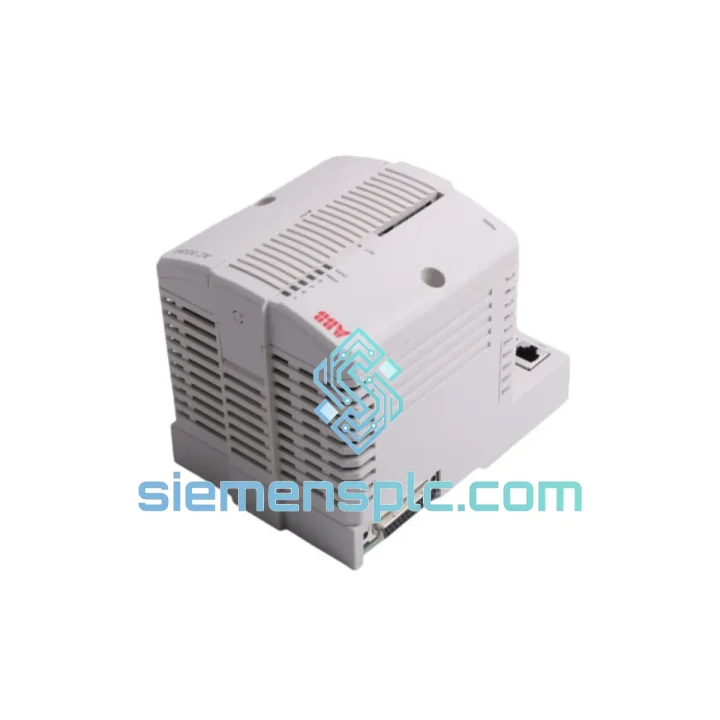

ABB PM866K01 3BSE050198R1 DCS Processor Module

ABB PM866K01 (3BSE050198R1) — Cut the Downtime. Ship Today from Xiamen.

Every hour your AC 800M controller sits dead, your plant is bleeding money. Unplanned DCS outages in continuous process industries routinely cost $10,000–$100,000 per hour in lost throughput, emergency labor, and contractual penalties. The PM866K01 is the high-capacity CPU at the heart of your AC 800M rack — when it fails, nothing else matters until it’s back online.

We stock PM866K01 (3BSE050198R1) in Xiamen, China. Orders confirmed before 14:00 CST ship same day via DHL Express or FedEx International Priority. We have moved this exact module to plants in Germany, Australia, Saudi Arabia, and Brazil — all back online within 48–72 hours of order placement. That is the only metric that matters when your production line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure signatures on PM866K01:

• STATUS LED solid red / alternating red-green: Internal self-test failure on boot. Nine times out of ten this is a corrupted firmware image or failed Flash memory cell — not a recoverable software issue. Replace the module.
• RUN LED off, no communication on Ethernet: Check backplane 24 VDC first (measure at TB840 connector pins). If voltage is good and the module still won’t initialize, the SDRAM has likely failed — common after sustained high-temperature operation above 50 °C ambient.
• Intermittent CPU switchover in redundant pair: Before condemning the module, verify both units are running identical firmware builds (check via Control Builder M → Controller → Properties). Firmware mismatch is the #1 cause of spurious redundancy switchovers on AC 800M systems.
• Application program lost after power cycle: The PM866K01 stores the application in Flash, not battery-backed RAM. If the program is gone after a normal power cycle, the Flash write cycle limit has been exceeded or the module took a voltage spike during shutdown. Replace and reload from Control Builder M backup.

Step-by-step hot-swap replacement procedure (non-redundant system — plan for a controlled shutdown):

1. Back up the current application project from Control Builder M to a local engineering workstation. Verify the backup opens cleanly before proceeding.
2. Note the IP addresses assigned to both Ethernet ports (CN1, CN2) — you will need to re-enter these manually on the replacement unit.
3. In Control Builder M, go to Controller → Disconnect to release the online connection gracefully.
4. Power down the AC 800M cabinet via the main breaker. Do not hot-pull the PM866K01 in a non-redundant system — the backplane does not support live CPU extraction without a redundancy kit.
5. Extract the failed PM866K01 by releasing the two front-panel locking levers. Slide straight out — do not rock side to side, as the backplane connector pins are fragile.
6. Inspect the backplane connector on the cabinet side for bent pins or carbon tracking before inserting the replacement.
7. Insert the new PM866K01, seat firmly, and lock both levers. Restore power.
8. The module will boot to a “No Application” state (STATUS LED: slow green flash). Connect via Control Builder M, assign IP addresses, then download the backed-up application.
9. Verify all I/O modules are recognized on the S800 bus before releasing the system to automatic control.

Firmware matching note: If your plant runs AC 800M firmware 5.1 or earlier, confirm the replacement PM866K01 ships with a compatible firmware version. Mixing major firmware generations (5.x vs 6.x) on a redundant pair will prevent synchronization. Contact us and we will verify the firmware build on your unit before dispatch.

Reliability in Harsh Conditions

The PM866K01 was engineered for continuous operation in environments that would destroy consumer-grade electronics within weeks. ABB designed the AC 800M platform to IEC 61131-2 environmental class 3 — covering the vibration profiles of offshore platforms, the thermal cycling of outdoor substations, and the corrosive atmospheres of chemical plants.

The module’s PCB uses conformal coating on critical signal traces, providing resistance to condensation and airborne contaminants including H₂S and SO₂ at concentrations typical of refinery environments. The backplane connector is rated for 500+ insertion cycles, which matters when you are doing annual preventive maintenance swaps on a rotating spare program.

Vibration tolerance is specified to IEC 60068-2-6: 10–150 Hz, 1 g continuous — sufficient for mounting in cabinets adjacent to large rotating machinery without additional isolation. Shock resistance per IEC 60068-2-27 covers the mechanical stress of forklift transport and cabinet relocation during plant expansions.

Thermal management is passive — no internal fans, no moving parts. The module dissipates heat through the aluminum front panel and backplane thermal path. In installations where ambient cabinet temperature regularly exceeds 45 °C, we recommend verifying cabinet ventilation before installation, as sustained operation above 55 °C is the single largest contributor to premature Flash memory degradation on this module family.

Every unit we ship undergoes a 4-hour burn-in power cycle at 45 °C before packaging. This screens out infant mortality failures — the units that would have failed in your first week of operation fail in our warehouse instead.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct daily freight connections to DHL, FedEx, and UPS international gateways. Transit times from order confirmation to delivery:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days, DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days, FedEx International Priority
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days, DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days, FedEx International Priority
• Australia & New Zealand: 3–4 business days, DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days, DHL or FedEx depending on destination
• Africa (South Africa, Nigeria, Egypt): 5–8 business days, DHL Express

All shipments include full commercial invoice, packing list, and certificate of origin for customs clearance. HS Code 8537.10 applies to this module in most jurisdictions. We can prepare a pro-forma invoice for your procurement team’s advance approval before payment — standard practice for plant emergency purchases that bypass normal PO lead times.

For orders requiring same-day dispatch, contact us via WhatsApp before 13:00 CST. We will confirm stock, generate the commercial invoice, and have the unit at the Xiamen DHL gateway by 17:00 the same day. Tracking number provided within 2 hours of pickup confirmation.

Export compliance: All ABB AC 800M modules ship under standard dual-use export regulations. We handle EAR99 classification documentation for US-destination shipments. For destinations requiring specific end-user certificates, allow one additional business day for documentation preparation.
