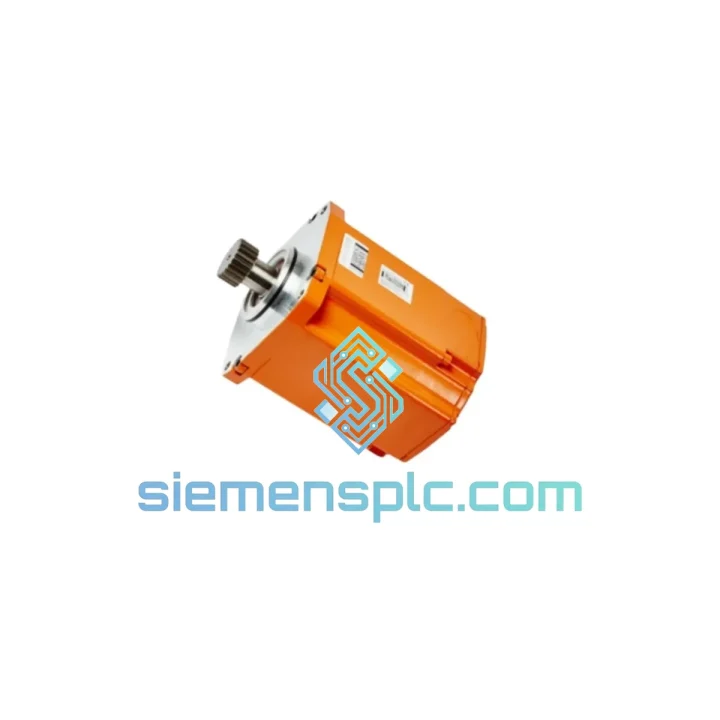

ABB 3HAC057542-003 Servo Motor – IRB6640 IRC5 Series

ABB 3HAC057542-003 — Axis Servo Motor with Pre-Mounted Pinion for IRB6640 Heavy-Payload Robotic Platforms

The ABB 3HAC057542-003 is a factory-assembled AC brushless servo motor unit with an integrated pinion gear, engineered specifically for joint actuation within the ABB IRB6640 articulated robot family. This component occupies a structurally critical position in the IRC5 motion control chain: it converts the drive inverter’s PWM output into calibrated mechanical torque at the gearbox input shaft, with positional feedback routed back to the axis computer via an absolute multi-turn resolver. The mechanical and electrical design of this unit is not interchangeable with generic servo motors — it is dimensioned, validated, and serialized for the IRB6640 kinematic envelope and the IRC5 control architecture exclusively.

The IRB6640 platform spans payload ratings from 130 kg to 205 kg across its variant range, placing each axis motor under sustained dynamic loading that alternates between high-torque acceleration phases and regenerative braking intervals. Under these conditions, encoder fidelity, thermal stability, and gear mesh geometry are the three variables that determine long-term TCP (Tool Center Point) repeatability. The 3HAC057542-003 addresses all three simultaneously: the absolute resolver maintains position data through power cycles without homing sequences; the Class F insulation system provides a 25 °C thermal headroom above Class B ratings; and the factory-torqued pinion holds gear mesh contact geometry to ABB’s specified tolerance from the first operational cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Within the IRC5 drive architecture, the 3HAC057542-003 sits at the terminal node of the axis drive chain. The IRC5 drive module generates a three-phase PWM voltage waveform — switching frequency nominally 8 kHz to 16 kHz depending on axis configuration — applied to the motor’s stator windings via the robot arm cable harness. The rotor’s angular position is sampled continuously by the absolute multi-turn resolver, which transmits encoded position data to the Serial Measurement Board (SMB, DSQC 633 or equivalent) over a dedicated shielded signal cable. The SMB aggregates resolver data from all six axes and forwards it to the axis computer (DSQC 661) over the internal measurement bus. The position control loop closes at the IRC5 axis computer level with a nominal cycle time of 4 ms; the inner current regulation loop operates at approximately 250 µs, providing the torque bandwidth required for smooth trajectory execution at high payload.

The pre-mounted pinion is a precision engineering decision, not a packaging convenience. In heavy-payload robot joints, the pinion-to-gearbox interface is the primary accumulation point for backlash over service life. When a pinion is field-assembled onto a motor shaft, the interference fit depth, angular alignment, and torque application are subject to technician variability. ABB’s factory assembly process applies a controlled hydraulic press fit and verifies gear mesh contact pattern under load before the unit is serialized. This eliminates the unit-to-unit backlash variance that field assembly introduces, and it ensures that every 3HAC057542-003 installed in an IRB6640 joint produces the same gear mesh stiffness — a parameter that directly affects the IRC5 motion planner’s feedforward torque model accuracy.

From an EMC perspective, the motor’s stator winding layout and the resolver cable routing within the robot arm structure are designed to suppress common-mode current injection onto the IRC5 DC bus. The motor housing functions as a Faraday enclosure for the resolver electronics, and the cable shield is terminated at both the motor connector and the SMB connector to provide a continuous low-impedance return path for high-frequency interference currents. This architecture keeps conducted emissions within EN 61800-3 Category C2 limits without requiring external ferrite chokes on the motor power cable — a significant advantage in installations where cable routing space is constrained.

Thermal load management relies on the motor’s aluminum housing in direct conductive contact with the robot arm casting, supplemented by a PTC thermistor embedded in the stator winding. The IRC5 axis computer reads the PTC resistance continuously and applies a thermal model that accounts for duty cycle, ambient temperature, and cumulative heat soak. When the modeled winding temperature approaches the Class F limit, the IRC5 initiates a controlled velocity reduction rather than an abrupt fault stop — preserving production continuity while protecting the winding insulation from thermal degradation.

System Integration Benefits

• Direct OEM drop-in with no axis mastering required: The absolute resolver retains calibration data through the SMB battery backup circuit. In most IRC5 configurations, axis mastering is not required after motor replacement, reducing unplanned downtime from a multi-hour recalibration event to a sub-30-minute mechanical swap.
• Stable torque constant across service life: The brushless AC design eliminates commutator and brush wear as degradation variables. The torque constant (Kt) remains within ±2% of nominal throughout the motor’s operational life, preserving the accuracy of the IRC5 motion planner’s torque feedforward compensation over time.
• Factory-controlled gear mesh geometry: The pre-mounted pinion holds backlash at the gearbox input to ABB’s specified range from installation day one, preventing the progressive TCP drift that accumulates when field-assembled pinions are installed with incorrect interference fit depth or misaligned contact pattern.
• Power-loss-tolerant position feedback: The absolute multi-turn resolver does not require a homing or referencing sequence after power interruption. The IRC5 reads true mechanical joint position on startup, enabling immediate production restart without manual axis referencing — critical in facilities with frequent power cycling or emergency stop events.
• EMC-compliant harness interface: The motor connector and cable shield termination conform to the IRC5 harness standard, ensuring the complete drive-motor system meets EN 61800-3 without additional filtering components. This simplifies CE compliance documentation for machine builders integrating IRB6640 cells.
• Real-time thermal supervision via IRC5: The embedded PTC thermistor interfaces with the IRC5 thermal supervision function, providing continuous winding temperature data to the axis computer. This enables condition-based maintenance scheduling based on actual thermal load history rather than fixed calendar intervals, reducing unnecessary preventive maintenance interventions.
• Structured fault diagnostics without disassembly: The IRC5 event log records motor-related fault codes — including event 50024 (motor temperature high) and event 50025 (motor current error) — with axis identification and timestamp. These records are accessible via RobotStudio or the FlexPendant, enabling root-cause analysis and failure trend identification without mechanical disassembly of the robot arm.
• Fleet-wide spare parts consolidation: The 3HAC057542-003 is validated across all IRB6640 payload variants (130/180/205 kg) and both single-cabinet and multi-cabinet IRC5 configurations. Facilities operating mixed IRB6640 fleets can maintain a single motor part number in their spare parts inventory, reducing carrying cost and eliminating part number confusion during emergency maintenance.

Quality Assurance & Global Logistics

Every ABB 3HAC057542-003 unit dispatched from siemensplc.com is sourced through verified ABB-authorized supply channels. Upon receipt, each unit undergoes incoming inspection: part label, ABB batch code, date code, and serial number are cross-referenced against ABB’s part documentation. The pinion engagement surface is visually and dimensionally verified. The resolver connector and motor body are inspected for transit damage. No repackaged, relabeled, or third-party-manufactured substitute components are stocked or shipped under this part number.

Our warehouse operates from Xiamen, China — a tier-1 international logistics hub with direct carrier access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated LCL sea freight services. In-stock units are dispatched within 1–2 business days of order confirmation. Full export documentation is prepared for every international shipment: commercial invoice, packing list, HS code declaration (HS 8501.52 — AC servo motors), and certificate of origin. For production-critical breakdowns, same-day dispatch is available on orders confirmed before 14:00 CST.

Indicative air freight transit times: Europe 3–5 business days; North America 4–6 business days; Southeast Asia 2–3 business days; Middle East 4–5 business days. All shipments are fully tracked and cargo-insured. A 12-month warranty covering manufacturing defects applies from the confirmed shipment date.
