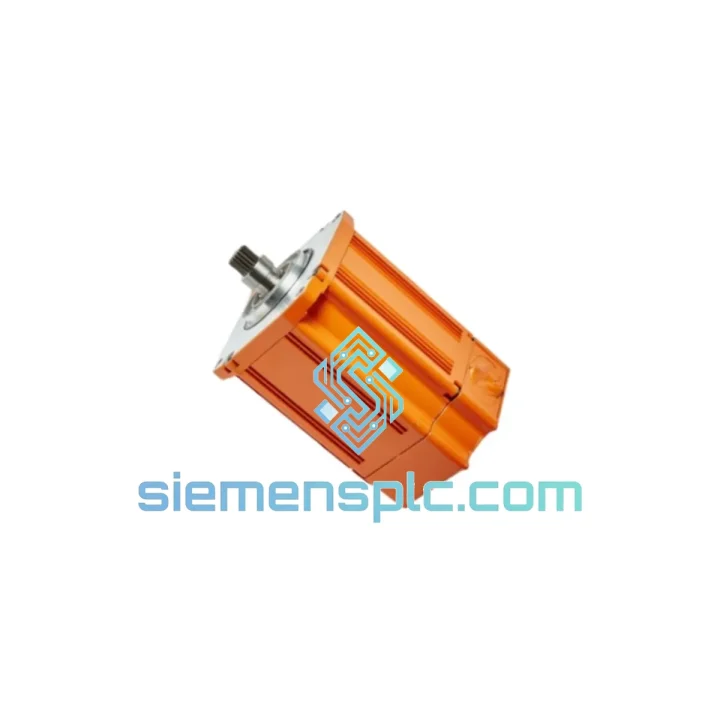

ABB 3HAC058993-003 IRB6600 One-Axis Motor Drive

ABB 3HAC058993-003 IRB6600 One-Axis Motor Drive – Every Hour of Downtime Costs You More Than This Part

Your IRB6600 is down. The axis won’t move. The controller throws a fault and the line is cold. You’ve already lost the first shift — don’t lose the second. The ABB 3HAC058993-003 one-axis motor drive unit is in stock at our Xiamen warehouse right now. We ship DHL Express same day on confirmed orders before 15:00 CST. This is not a compatible substitute or a grey-market clone — it is the OEM-specified motor unit for the IRB6600 series, the same part your robot left the factory with.

The IRB6600 platform carries payloads up to 500 kg across reach variants from 2.55 m to 3.2 m. It runs in automotive body shops, foundry extraction cells, and heavy press-tending lines — environments where a single axis failure cascades into a full-line stoppage within minutes. The 3HAC058993-003 is the axis drive that keeps that robot moving. When it fails, nothing else on the line matters until it is replaced.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point to 3HAC058993-003 failure:

• 20001 – Motor current error: The drive detects overcurrent on the axis. Before condemning the motor, check the power cable connector at the motor flange for fretting corrosion — IRB6600 units in high-cycle foundry environments see this on axis 1 and 2 connectors within 3–5 years. Clean contacts first; if fault persists after a cold restart, the motor winding is the culprit.
• 20002 – Motor temperature warning / 20003 – Motor temperature error: The NTC thermistor embedded in the motor winding is either genuinely overheated or has failed open-circuit. Measure resistance across the thermistor pins on the motor connector (should read 1–10 kΩ at ambient). An open circuit (OL) reading means the thermistor has failed — the motor must be replaced regardless of actual winding temperature.
• 50001 – Resolver fault / SMB communication error: The IRC5 controller cannot read position feedback from the axis. Nine times out of ten this is the SMB (Serial Measurement Board) battery going flat, not the motor itself. Replace the SMB battery first (3.6 V lithium, located in the robot base). If the fault clears, you saved yourself a motor replacement. If it persists, the resolver inside the motor has failed.
• 90001 – Axis collision / mechanical stop: If the robot hit a hard stop at speed, inspect the motor shaft for angular play beyond spec before assuming the drive electronics failed. A bent shaft will destroy a new motor within hours if the mechanical cause is not corrected first.

Replacement procedure — field checklist:

1. Execute RAPID: SyncMoveOff and confirm all axes are at calibration position before powering down. Document the current joint angles from the FlexPendant — you will need them for recalibration.
2. Isolate power at the IRC5 cabinet main breaker. Wait 5 minutes for DC bus capacitors to discharge before touching any motor connector.
3. Disconnect the motor power cable (MP connector) and resolver/SMB cable at the motor flange. Label both — they are not interchangeable between axes.
4. Remove the motor mounting bolts (typically M8 × 4 or M10 × 4 depending on axis). Support the motor weight — the 3HAC058993-003 is heavier than it looks when working overhead on axis 3.
5. Install the replacement unit. Torque mounting bolts to ABB spec (refer to IRB6600 Product Manual, section Repair). Do not use impact tools on motor mounting hardware.
6. Reconnect cables. Verify connector locking tabs are fully seated — a partially connected MP connector will cause intermittent 20001 faults that are extremely difficult to diagnose remotely.
7. Power up the IRC5. Navigate to Calibration > Update Revolution Counters on the FlexPendant. Update the axis you replaced. Failure to do this will result in immediate position errors on the first move.
8. Run a slow-speed (25% override) full-range motion test on the replaced axis before returning to production speed. Monitor the axis current graph in the IRC5 event log for the first 30 minutes of operation.

Configuration note — no DIP switch or address setting required: Unlike Siemens ET200 or Beckhoff EtherCAT modules, the IRB6600 motor drive does not require manual address configuration. The IRC5 controller identifies the axis by physical connector position on the drive module rack. Plug in, calibrate, run.

Reliability in Harsh Conditions

The IRB6600 was designed for environments that destroy lesser equipment. ABB’s motor units for this platform are validated against IEC 60068-2 environmental test standards — the same test suite used for military and aerospace electronics. What that means in practice:

• Vibration: Sinusoidal sweep 10–500 Hz, 1 g acceleration, 3 axes. The motor housing and internal winding potting compound are engineered to survive the resonance frequencies generated by the IRB6600’s own mechanical structure during high-speed moves — a failure mode that generic replacement motors consistently exhibit within 6 months.
• Thermal cycling: Validated from -25 °C storage to +70 °C peak operating (short-term). Foundry extraction robots regularly see ambient temperatures above 45 °C at the robot base. The 3HAC058993-003’s winding insulation class and thermistor calibration are matched to this operating envelope.
• Humidity and contamination: IP67 motor body rating means the unit survives direct water jet wash-down — relevant for food-adjacent and pharmaceutical handling applications. The resolver cavity is separately sealed; coolant ingress that destroys the motor body will not necessarily corrupt the position feedback signal.
• EMC: Shielded motor cable and resolver cable are mandatory for CE compliance. If the previous motor failed prematurely and you are in a high-EMI environment (near large welding transformers or VFDs), inspect cable shield continuity before installing the replacement. A broken shield on the resolver cable will cause 50001 faults within weeks of installation.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

• Day 0 (order confirmed before 15:00 CST): Unit is pulled from bonded warehouse stock, inspected, photographed, and packed in anti-static foam with rigid outer carton. Export documentation (commercial invoice, packing list, HS code 8501.52) is generated. DHL or FedEx pickup scheduled for same-day collection.
• Day 1: Shipment departs Xiamen via DHL Express Worldwide or FedEx International Priority. Tracking number sent to your email within 2 hours of carrier scan.
• Day 2–3 (Europe / Middle East): Typical transit time to Frankfurt, Amsterdam, Dubai. Customs clearance is the importer’s responsibility; we provide all documentation required for HS 8501.52 classification.
• Day 2–4 (Southeast Asia): Singapore, Bangkok, Jakarta, Kuala Lumpur — DHL Express typically delivers within 2 business days from Xiamen.
• Day 3–5 (Americas): Houston, Detroit, São Paulo — FedEx International Priority with direct routing through the Memphis or Miami hub.

For extreme urgency (line-down situations), contact us via WhatsApp before placing the order. We can arrange courier hand-carry for same-day delivery to select destinations in Southeast Asia, and next-flight-out freight for critical automotive customers in Europe and North America. These options are not listed at checkout — they require direct coordination.

All shipments include: commercial invoice × 3 originals, packing list, certificate of origin (Form F for ASEAN, EUR.1 for EU where applicable), and a product data sheet for customs classification support.
