ABB 3HAC12732-9 Servo Motor IRB 6600

ABB 3HAC12732-9 Servo Motor — Stop the Clock on Your IRB 6600 Downtime

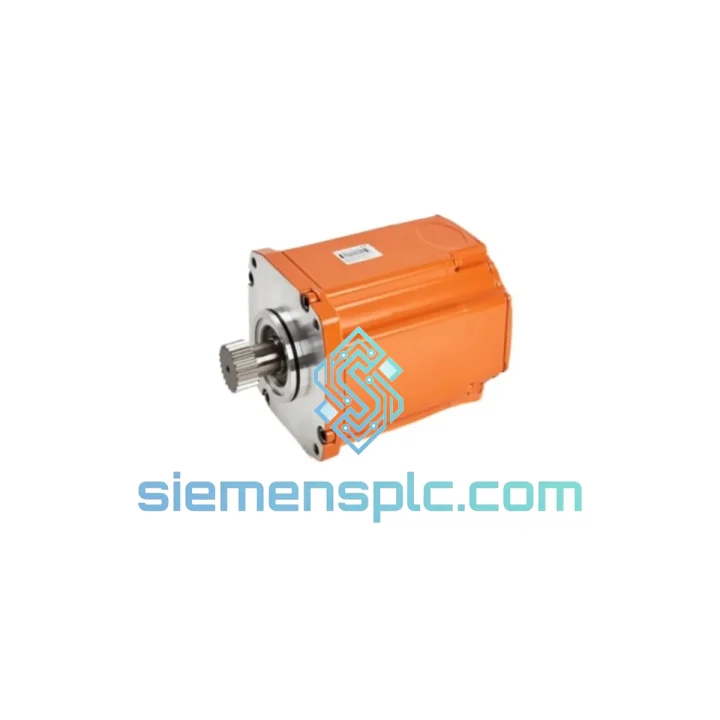

Every minute an IRB 6600 axis is locked out, your production line is bleeding money. Whether it’s a welding cell, a press-tending station, or a heavy-payload palletizer, a failed axis servo motor doesn’t wait for a convenient maintenance window. The ABB 3HAC12732-9 is the OEM-specified AC brushless servo motor for the IRB 6600 platform — and siemensplc.com keeps verified stock ready to move the same day you call.

This isn’t a catalog listing. It’s a direct line to a part that’s been pulled, inspected, and staged for express dispatch. If your robot is down, read the troubleshooting section below first, confirm the fault, then contact us. We’ll have a unit on a DHL or FedEx aircraft before your shift ends.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to 3HAC12732-9 failure:

• Error 50024 / 50025 — Joint Torque Sensor Fault: Often misdiagnosed as a drive board issue. Before swapping the DSQC module, check motor winding resistance across all three phases. An open or shorted winding (typically <0.5 Ω or >50 Ω deviation between phases) confirms motor failure.
• Error 38203 — Motor Temperature Warning: If ambient is within spec and the thermal sensor reads abnormally high at cold start, the embedded NTC thermistor inside the motor winding has drifted. Replace the motor assembly — the thermistor is not field-serviceable.
• Error 50001 — Axis Supervision Fault on Axis 1–3: Combined with abnormal current draw on the IRC5 axis drive, this indicates bearing seizure or winding degradation. Rotate the axis manually with brakes released — any roughness or resistance confirms mechanical failure in the motor.
• Brake not releasing (Error 90501): First verify 24 VDC is present at the brake connector. If voltage is confirmed and the axis still won’t move, the brake coil inside 3HAC024793-001 has failed open. The brake assembly is a separate replaceable unit — you may not need to replace the full motor.
• Encoder loss / resolver fault after power cycle: If the IRC5 loses absolute position on every power-up, the resolver bearing inside 3HAC023639-001 has failed. Replace the encoder unit first before condemning the motor body.

Replacement procedure — critical configuration notes:

1. Isolate and lock out: Engage E-stop, activate STO on the IRC5 safety board, and physically lock the axis with a mechanical brake pin before any disassembly. The IRB 6600 carries significant gravitational load on Axes 1–3.
2. Document resolver offset: Before disconnecting the encoder harness, record the current resolver offset value from the IRC5 FlexPendant (ABB Service menu → Calibration → Resolver Offset). This value is motor-specific and will need to be re-entered or re-calibrated after replacement.
3. Brake connector polarity: The 3HAC024793-001 brake connector is keyed, but verify polarity on the mating harness before energizing. Reversed polarity will not release the brake and may damage the safety relay on the IRC5 panel board.
4. No dip switches or address coding required: Unlike fieldbus I/O modules, the 3HAC12732-9 motor requires no hardware addressing. All axis assignment is handled in the IRC5 configuration file (MOC.cfg). Confirm the axis number mapping in RobotStudio before commissioning.
5. Fine calibration mandatory: After mechanical installation, perform a fine calibration routine via the FlexPendant (Jogging → Calibration → Fine Calibration). Do not skip this step — path accuracy will be degraded until calibration is complete, and the robot will not pass a TCP verification check.
6. Firmware compatibility: The 3HAC12732-9 is compatible with all IRC5 firmware versions from RobotWare 5.x through 6.x. No firmware update is required for the motor itself, but ensure the IRC5 system software matches your robot’s configuration backup before restarting production.

Reliability in Harsh Conditions

The IRB 6600 was designed for environments that destroy lesser equipment — foundry floors with airborne metal particulates, automotive paint booths with solvent vapors, and outdoor-adjacent press shops with wide temperature swings. The 3HAC12732-9 was engineered to match that operating envelope.

The IP65-rated motor housing blocks directed water jets and dust ingress, making it suitable for washdown-adjacent zones and high-humidity manufacturing cells. Class F winding insulation provides a 30°C thermal margin above the motor’s rated operating temperature, which translates directly into extended service life under continuous high-duty-cycle operation — the kind of 20-hour production schedules that automotive Tier 1 suppliers run.

The integrated resolver feedback system is inherently vibration-tolerant compared to optical encoders. There are no glass discs to shatter under shock loads from press-tending impacts or conveyor collisions. The resolver outputs an analog sine/cosine signal that degrades gracefully under electrical noise — a critical advantage in welding environments where high-frequency inverter noise is constant.

The electromagnetic fail-safe brake uses a spring-applied, power-to-release design. Loss of 24 VDC — whether from an E-stop, a power fault, or a cable break — automatically engages the brake and holds the axis load. This is not a software interlock; it is a mechanical failsafe that operates independently of the IRC5 control system, meeting the requirements of ISO 10218-1 and EN 954-1 Category 3 safety architectures.

Global Express Logistics

siemensplc.com operates from Xiamen, Fujian — one of China’s primary international freight hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. This geographic position is not incidental; it was chosen specifically to support rapid global dispatch for industrial emergency orders.

Standard express routing:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): DHL Express — 1 to 2 business days from dispatch
• Europe (Germany, Poland, Czech Republic, UK): FedEx International Priority — 3 to 4 business days
• North America (USA, Canada, Mexico): DHL Express Worldwide — 3 to 5 business days
• Middle East (UAE, Saudi Arabia, Turkey): FedEx or DHL — 2 to 4 business days
• South America (Brazil, Chile, Argentina): 5 to 7 business days via FedEx International

All shipments are processed through Xiamen Customs with full commercial invoice documentation, HS code classification, and export compliance review. We support multi-currency payment including USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and trade finance instruments. A commercial invoice and packing list are issued with every shipment for your import clearance team.

For production-down emergencies, contact us via WhatsApp before placing the order. We will confirm stock availability, generate a proforma invoice within 30 minutes, and coordinate same-day handover to the courier if payment is received before 14:00 CST.
