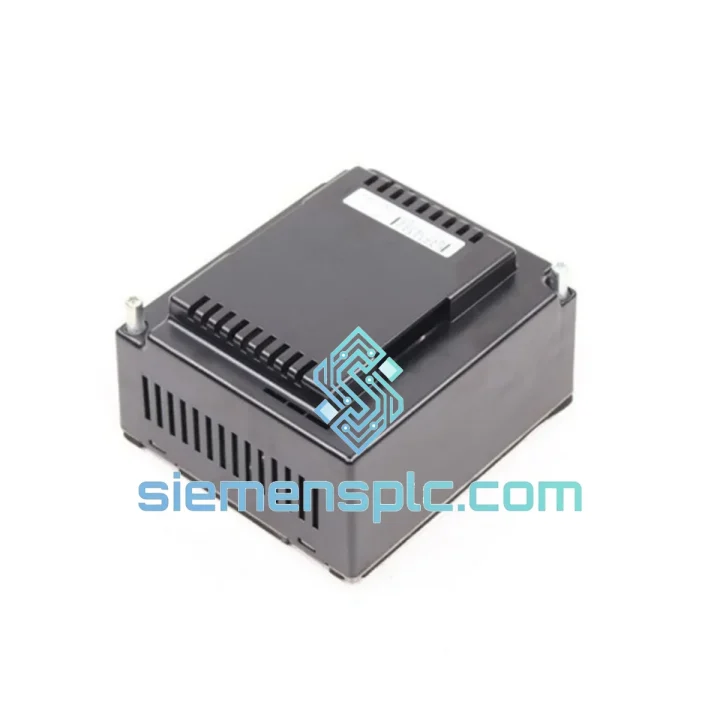

ABB 3HAC17282-1 Servo Drive Unit – IRB Series

ABB 3HAC17282-1 Servo Drive Unit: Axis-Level Power Conversion in IRB Robotic Control Architecture

The ABB 3HAC17282-1 is a dedicated servo drive unit engineered for axis-level motor control within ABB’s IRB series industrial robot platforms. Positioned between the IRC5 controller’s drive system and the axis motor, this module performs DC bus power conversion, current regulation, and closed-loop torque control at the individual joint level. Its role in the control loop is not peripheral — it is the final power stage that translates motion trajectory commands from the motion controller into precise electromagnetic torque at the motor shaft.

In a standard IRC5 drive chain, the main computer (DSQC639 or equivalent) generates interpolated path data at the motion planner level. This data is passed via the internal drive bus to each axis drive node. The 3HAC17282-1 receives these current reference signals and executes PWM switching at the IGBT stage to deliver the commanded torque with sub-millisecond response latency. The feedback path — encoder position, resolver signal, or Hall-effect data depending on motor type — is processed locally within the drive to close the current and velocity loops before position data is returned upstream to the motion controller.

This architecture distributes computational load across the drive nodes, reducing the burden on the central motion processor and enabling deterministic axis response even under dynamic multi-axis coordinated motion profiles. For applications requiring tight path accuracy — arc welding, laser cutting, precision assembly — the per-axis drive architecture of the IRC5 system, with the 3HAC17282-1 as a core node, is a fundamental design advantage over centralized drive topologies.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC17282-1 implements a three-phase IGBT inverter bridge fed from the IRC5 cabinet’s shared DC bus. The DC bus voltage, typically in the 540–600 VDC range depending on the supply configuration, is switched at high frequency by the IGBT stage to synthesize the three-phase AC waveform required by the axis servo motor. Switching frequency is optimized to balance motor iron losses against IGBT thermal dissipation — a parameter that ABB calibrates per motor type during the drive parameterization process.

EMC design on this unit follows IEC 61800-3 Category C3 requirements. The PCB layout employs ground plane segmentation to isolate the high-frequency switching node from the signal-level feedback and communication circuitry. Gate drive circuits use optocoupler isolation between the control logic and the IGBT gate signals, providing galvanic separation that protects the control electronics from common-mode transients generated during switching events. Ferrite bead filtering is applied at the resolver/encoder interface to suppress differential-mode noise ingress from the motor cable.

The current measurement path uses precision shunt resistors or Hall-effect current sensors (depending on revision) with differential amplification and analog-to-digital conversion feeding the current control loop. The current loop executes at a fixed interrupt rate — typically 4–8 kHz — ensuring that torque response bandwidth remains well above the mechanical resonance frequencies of the robot arm structure. This is critical for suppressing structural vibration during high-speed path execution.

Thermal protection is implemented via NTC thermistor monitoring of the IGBT heatsink. The drive reports thermal status upstream to the IRC5 motion controller, which can reduce axis current limits or trigger a controlled stop before junction temperatures reach destructive thresholds. This closed-loop thermal management prevents the abrupt fault trips that characterize drives without predictive thermal derating.

System Integration Benefits

• Deterministic Torque Response: Local current loop closure at the drive node eliminates communication latency from the torque control path, enabling torque bandwidth in excess of 1 kHz — essential for high-speed coordinated motion.
• Distributed Fault Isolation: Each axis drive operates as an independent node. A fault on one axis does not propagate to adjacent drives, allowing the IRC5 controller to execute a controlled stop on remaining axes rather than an uncontrolled power-off.
• Diagnostic Transparency: The drive continuously reports current, temperature, bus voltage, and feedback signal quality to the IRC5 controller. This data is accessible via the FlexPendant and ABB RobotStudio, enabling predictive maintenance scheduling without physical inspection.
• Shared DC Bus Efficiency: The 3HAC17282-1 participates in the IRC5 shared DC bus architecture, allowing regenerative braking energy from decelerating axes to be consumed by accelerating axes on the same bus — reducing net energy draw from the mains supply.
• Plug-and-Play Replacement: Drive parameters are stored in the IRC5 controller, not in the drive unit itself. Replacement of a 3HAC17282-1 does not require re-parameterization — the controller downloads the axis configuration to the new drive on first power-up, minimizing downtime during maintenance.
• Feedback Signal Integrity: Onboard resolver-to-digital conversion with interpolation provides high-resolution position feedback without requiring a separate RDC module, reducing component count and potential failure points in the feedback chain.
• Galvanic Isolation Architecture: Optocoupler isolation between the control and power stages ensures that high-voltage transients on the motor cable do not corrupt the control logic or the drive bus communication, maintaining system integrity in electrically noisy environments.
• Compatibility Across IRB Generations: The 3HAC17282-1 is compatible across multiple IRB robot generations sharing the IRC5 platform, simplifying spare parts inventory management for facilities operating mixed robot fleets.

Quality Assurance & Global Logistics

Every 3HAC17282-1 unit dispatched from our Xiamen facility undergoes a structured verification protocol before packaging. Part number markings, date codes, and PCB revision labels are cross-referenced against ABB OEM documentation. Connector integrity, housing condition, and label authenticity are inspected under controlled lighting. Units with any indication of remarking, counterfeit PCB substrate, or non-OEM assembly are quarantined and excluded from inventory.

Functional units are bench-tested under controlled DC bus conditions to verify IGBT switching integrity and feedback interface continuity before dispatch. A serialized inspection record accompanies each shipment, providing full traceability from our warehouse to the end installation.

From Xiamen, China, we ship globally via DHL Express, FedEx International Priority, and SF International for time-critical orders. Sea freight consolidation is available for bulk procurement. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for all international shipments. Standard in-stock lead time is 1–3 business days. All units carry a 12-month warranty from dispatch date covering functional defects under normal operating conditions.
