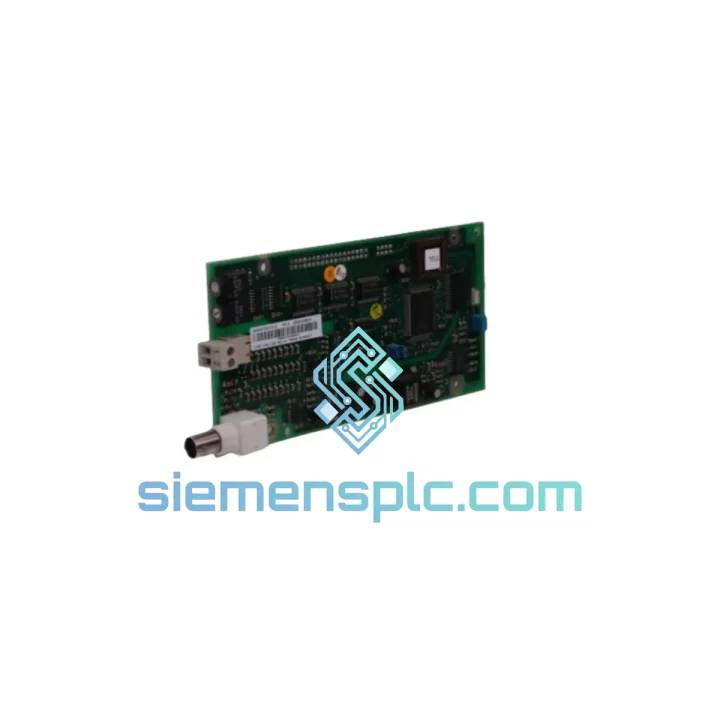

ABB 3HNA011784-001/03 DCS Controller Module – IRC5 S4C+

ABB 3HNA011784-001/03 — Distributed Control Architecture for Multi-Axis Robotics

The ABB 3HNA011784-001/03 is a Distributed Control System (DCS) controller module engineered for deployment within ABB’s IRC5 and S4C+ robot controller cabinet families. Its primary function is to serve as the deterministic signal arbiter between the main computer unit (MCU) and the downstream servo drive layer, managing real-time axis coordination, I/O state synchronization, and inter-module communication across multi-robot cells. In high-throughput manufacturing environments — automotive body-in-white lines, foundry extraction, precision assembly — the integrity of this control layer directly governs cycle time repeatability and fault recovery latency.

Unlike generic fieldbus gateway modules, the 3HNA011784-001/03 is purpose-built for ABB’s internal DSQC backplane architecture. It does not rely on external Ethernet or PROFIBUS arbitration for axis-level commands; instead, it operates on ABB’s proprietary high-speed internal bus, which delivers deterministic sub-millisecond command dispatch to each servo drive node. This design eliminates the jitter introduced by shared-medium fieldbus protocols in time-critical motion sequences.

Revision /03 of this module incorporates PCB-level layout refinements that improve conducted EMI suppression compared to /01 and /02 variants, particularly in the 150 kHz–30 MHz frequency band generated by adjacent IGBT-based servo inverters. The ground plane segmentation and decoupling capacitor placement on the /03 revision follow IEC 61800-3 Category C2 compliance guidelines, making it suitable for installation in cabinets co-located with high-power drive systems without additional shielding measures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture: The 3HNA011784-001/03 interfaces with the IRC5 cabinet’s DSQC backplane via a parallel address/data bus operating at a fixed clock rate synchronized to the MCU’s real-time kernel. Unlike asynchronous serial fieldbus implementations, this parallel architecture guarantees bounded latency for every command frame — a prerequisite for coordinated multi-axis motion where positional error accumulation across axes must remain within ±0.01 mm tolerance bands.

EMC Design and Conducted Noise Suppression: The /03 revision introduces a four-layer PCB stack-up with dedicated power and ground planes sandwiching the signal routing layers. Ferrite bead arrays on the 24 VDC supply rails attenuate high-frequency switching noise (switching frequencies of 4–16 kHz from adjacent servo inverters) before it reaches the logic supply domain. X2-class film capacitors at the board entry point provide differential-mode filtering, while Y-class capacitors to chassis ground handle common-mode suppression. This topology maintains logic supply ripple below 50 mV peak-to-peak under full servo load conditions.

Redundancy Arbitration Logic: In dual-cabinet IRC5 configurations, two DCS modules operate in a primary/shadow arbitration scheme. The 3HNA011784-001/03 implements a hardware watchdog timer with a configurable timeout window (default: 10 ms). If the primary module fails to assert its heartbeat signal within the timeout window, the shadow module assumes bus mastership within one watchdog cycle — without requiring MCU intervention. This hardware-level failover mechanism is independent of the RobotWare software stack, ensuring continuity even during OS-level fault recovery sequences.

Thermal Management: The module’s power dissipation profile (≤ 8 W) is managed through a combination of copper pour thermal relief on the PCB and convective airflow from the IRC5 cabinet’s internal fan array. No active cooling is required at the module level. The operating junction temperature of the primary FPGA/ASIC logic device is maintained below 85°C at the rated 55°C ambient, providing a 30°C thermal margin against derating thresholds.

System Integration Benefits

• Deterministic Real-Time Response: Sub-millisecond command dispatch latency ensures that multi-axis path interpolation errors remain within the tolerance bands required for ISO 9283 path accuracy certification on ABB robot arms.
• Zero-Configuration Drop-In Replacement: The /03 revision maintains full backward compatibility with /01 and /02 hardware in the same cabinet slot. No firmware re-flashing or parameter reconfiguration is required upon module swap — the MCU auto-detects the replacement unit on the next power cycle.
• Diagnostic Transparency: Onboard LED status indicators (power, bus activity, fault) provide immediate visual fault localization without requiring a laptop connection. Fault codes are simultaneously logged to the ABB FlexPendant event log and accessible via RobotStudio remote monitoring.
• Reduced Unplanned Downtime: Hardware watchdog failover in dual-cabinet configurations limits fault-induced production stops to a single watchdog cycle (≤ 10 ms), compared to software-managed failover sequences that may require 200–500 ms for OS-level recovery.
• Broad RobotWare Compatibility: Validated for use with RobotWare 5.12 through 6.x. The module’s firmware interface layer abstracts hardware revision differences, allowing system integrators to standardize on a single spare part number across mixed-revision IRC5 fleets.
• EMI Immunity in Harsh Environments: IEC 61800-3 C2 compliance allows installation in cabinets co-located with welding inverters, plasma cutters, and high-current servo drives without additional shielding enclosures or ferrite clamp retrofits.
• Simplified Spare Parts Inventory: A single 3HNA011784-001/03 unit covers IRC5 Single Cabinet, Dual Cabinet, and Panel Mounted Controller variants, reducing the number of distinct spare part SKUs that MRO teams must stock for multi-platform robot fleets.
• Traceability for Regulated Industries: Each unit shipped from siemensplc.com includes a serial number record and pre-shipment test report, supporting the audit trail requirements of automotive IATF 16949 and aerospace AS9100 quality management systems.

Quality Assurance & Global Logistics

Every ABB 3HNA011784-001/03 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Upon receipt, each module is inspected for physical integrity — connector pin condition, PCB surface defects, and component seating. Units then proceed to a powered functional test bench replicating the IRC5 backplane electrical environment: 24 VDC supply applied, bus communication handshake verified against known-good MCU reference, and LED diagnostic sequence confirmed. Only units passing all test gates are cleared for shipment.

Packaging follows ESD-safe handling standards: anti-static bag (ANSI/ESD S541 compliant), foam-lined rigid carton, and moisture barrier outer wrap with desiccant. This packaging specification maintains module integrity through the temperature and humidity excursions typical of air freight transit across multiple climate zones.

Outbound logistics from Xiamen operate via DHL Express and FedEx International Priority, with standard transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–4 days to Southeast Asia. Full export documentation — commercial invoice, packing list, certificate of origin — is prepared for every shipment. For orders requiring expedited customs clearance, pre-classified HS code documentation is available upon request.

All units carry a 12-month warranty from the shipment date. Warranty claims are processed with a target response time of 24 business hours. Defective units are replaced or credited; no restocking fees apply to warranty returns.
