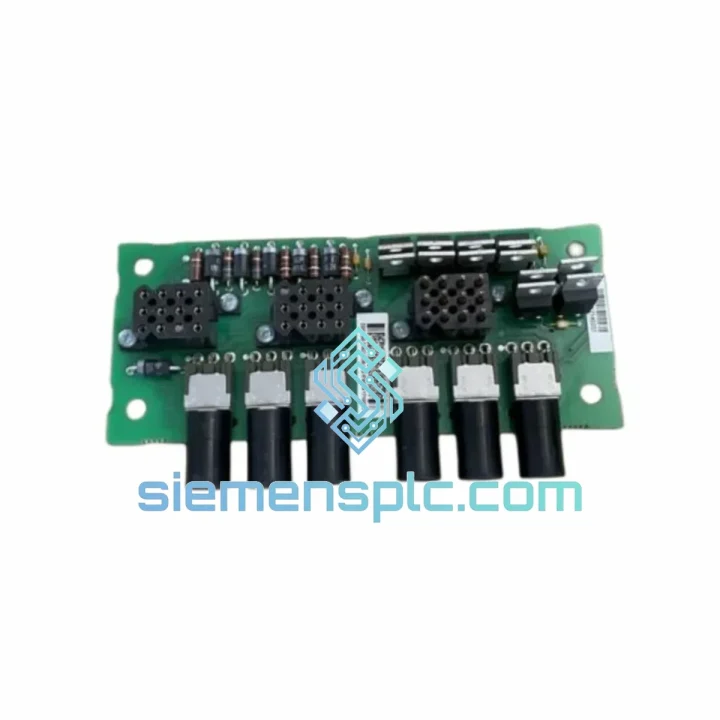

ABB 3HAC16035-1 Brake Release Board – IRC5 Robot Series

ABB 3HAC16035-1 Brake Release Board – Axis Safety Control in IRC5 Robot Systems

The ABB 3HAC16035-1 is a dedicated brake release board designed for deployment within ABB IRC5 robot controller cabinets. Its primary function is to provide a controlled, electrically isolated pathway for releasing the electromagnetic holding brakes on each robot axis during power-off states — enabling safe manual joint positioning for maintenance, teaching, and emergency recovery operations. Without a functioning brake release board, axis brakes remain engaged under spring-loaded mechanical force, making manual arm movement impossible and potentially dangerous during service procedures.

In a standard IRC5 single-cabinet configuration, the 3HAC16035-1 interfaces directly with the drive unit backplane and receives brake release commands from the axis computer (DSQC 668 or equivalent). The board decodes per-axis release signals and drives the corresponding relay outputs to energize each brake coil at the rated 24 VDC supply. The circuit architecture incorporates optocoupler isolation between the logic-level command bus and the power-side relay drivers, ensuring that transient voltages on the brake coil lines — which can reach inductive kickback peaks of 60–80 V during de-energization — do not propagate back into the controller’s signal domain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC16035-1 operates at the intersection of the IRC5 safety architecture and the mechanical brake subsystem. Understanding its internal logic is essential for accurate fault diagnosis and replacement planning.

Optocoupler Isolation Architecture: The board separates the 5 V logic domain (driven by the axis computer DSQC 668) from the 24 VDC brake coil power domain using high-speed optocouplers rated for ≥2,500 V isolation voltage. This prevents ground loops and eliminates the risk of logic-level damage from coil transients — a common failure mode in boards that use direct transistor switching without isolation.

Per-Axis Relay Topology: Each robot axis is assigned an independent relay channel on the board. The relay contacts are normally open (NO), meaning brakes remain engaged (spring-applied) when the relay is de-energized. This fail-safe design ensures that any power loss, board failure, or communication fault defaults to the mechanically safe, brakes-engaged state — consistent with IEC 60204-1 safety requirements for industrial machinery.

Flyback Suppression: Electromagnetic brakes are inductive loads. When the relay opens and the coil is de-energized, the collapsing magnetic field generates a reverse EMF spike. The 3HAC16035-1 incorporates a flyback diode across each relay output to clamp this spike, protecting relay contacts from arc erosion and extending service life. Boards without adequate suppression exhibit premature relay contact pitting, which manifests as intermittent brake release failures.

EMC Design Compliance: The PCB layout follows ABB’s internal EMC guidelines for IRC5 controller boards, including controlled impedance traces on the command bus, ground plane segmentation between logic and power sections, and ferrite bead filtering on the 24 VDC input rail. This design approach ensures the board meets EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions) without requiring additional external filtering.

Diagnostic Signal Feedback: The board provides relay status feedback signals to the axis computer, allowing the IRC5 system software to confirm that each brake release command has been executed. If a relay fails to close within the expected response window (typically <20 ms), the controller logs a brake release fault (error code 50xxx series) and halts the release sequence — preventing partial brake release states that could cause uncontrolled axis drift.

System Integration Benefits

• Deterministic Brake Release Sequencing: The board executes per-axis release commands in the sequence defined by the IRC5 axis computer, ensuring that multi-axis brake release during manual jogging follows the robot’s kinematic safety envelope without simultaneous uncontrolled drops.
• Zero-Modification Drop-In Replacement: The 3HAC16035-1 uses the same connector pinout and mounting footprint as the original factory-installed board. No firmware changes, parameter adjustments, or mechanical modifications are required — replacement is a direct swap with standard hand tools.
• Fault Transparency via IRC5 Event Log: Relay status feedback integration means all brake release faults are captured in the IRC5 event log with timestamp, axis reference, and error code. This eliminates guesswork during fault diagnosis and supports root-cause analysis in ISO 9001-compliant maintenance programs.
• Compatibility Across IRC5 Variants: A single 3HAC16035-1 board is compatible across the IRC5 single-cabinet, dual-cabinet, and compact controller variants, reducing spare parts inventory complexity for facilities operating mixed robot fleets.
• Reduced MTTR (Mean Time to Repair): With verified in-stock availability and 1–3 business day dispatch from Xiamen, China, replacement boards reach most global destinations within 3–7 working days via DHL Express — significantly reducing unplanned downtime duration compared to OEM lead times of 4–12 weeks.
• ESD-Safe Supply Chain: All boards are stored and shipped in anti-static shielding bags with desiccant packs, maintaining PCB integrity during transit and storage. This is particularly critical for boards with CMOS-based optocoupler inputs that are sensitive to electrostatic discharge.
• 12-Month Warranty Coverage: Each unit carries a 12-month warranty from dispatch date. DOA (Dead on Arrival) units are replaced within 5 business days of confirmed fault report, with no restocking fees or return shipping charges for verified defective units.
• Traceable Documentation Package: Every shipment includes a packing list, commercial invoice, and Konmask inspection record. Certificate of Conformance (CoC) and country-of-origin documentation are available on request, supporting customs clearance and internal audit requirements.

Quality Assurance & Global Logistics

Every ABB 3HAC16035-1 unit supplied undergoes a structured 4-stage inspection protocol: supply chain origin verification against authorized distributor and OEM surplus records; physical PCB inspection for component seating, solder joint integrity, connector condition, and label authenticity; functional bench testing of relay operation and isolation continuity; and final documentation assignment with inspector ID, test date, and batch reference.

Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, UPS Worldwide, and consolidated sea freight for volume orders. Standard export documentation — commercial invoice, packing list, and HS code declaration (HS 8537.10) — is included with every shipment. Expedited customs clearance support is available for time-critical orders. Bulk pricing is available for orders of 5 or more units.
