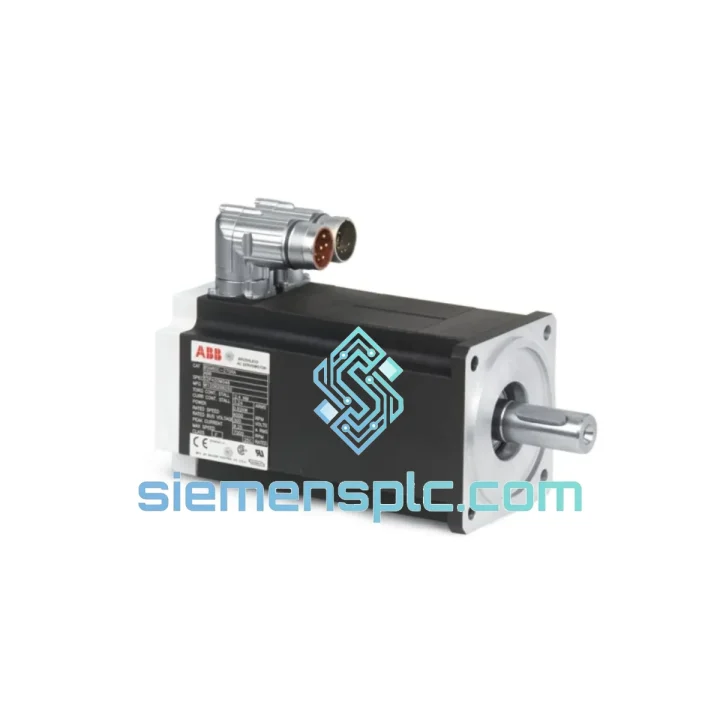

ABB 3HNA012841-001/07 AC Servo Motor – IRB Series

ABB 3HNA012841-001/07 — Precision AC Servo Motor for IRB Industrial Robot Joint Axes

The ABB 3HNA012841-001/07 is a factory-original AC brushless servo motor engineered specifically for joint-axis drive applications within ABB’s IRB industrial robot series. Operating as the primary torque-generation element in a closed-loop motion control architecture, this unit interfaces directly with the IRC5 and S4C+ controller platforms via a dedicated servo bus, delivering deterministic position and velocity control across the full operating envelope of the robot arm. Its role in the control loop is not peripheral — it is the final actuator in a signal chain that begins at the motion planner and terminates in physical joint displacement, with encoder feedback closing the loop at microsecond-level latency.

In multi-axis robot cells, the servo motor’s ability to maintain torque linearity under variable load conditions directly governs path accuracy. The 3HNA012841-001/07 achieves this through a low-inertia rotor design that minimizes mechanical time constants, allowing the IRC5 drive module to execute rapid acceleration and deceleration profiles without overshoot. This characteristic is particularly critical in arc welding, dispensing, and precision assembly applications where path deviation tolerance is measured in tenths of a millimeter.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HNA012841-001/07 employs a permanent magnet synchronous motor (PMSM) topology, which eliminates rotor copper losses inherent in induction motor designs. The stator windings are configured in a distributed three-phase arrangement, producing a rotating magnetic field with low harmonic distortion — a design choice that directly reduces torque ripple at low speeds, where IRB robots frequently operate during precision path segments.

Absolute Encoder Architecture: The integrated absolute multi-turn encoder eliminates the need for homing routines after power cycling. Position data is retained across power-down events via an internal battery-backed register, allowing the IRC5 controller to resume motion from the exact last-known joint angle. This is architecturally significant in production environments where unplanned shutdowns must not trigger full robot re-calibration sequences.

EMC Design: The motor housing is constructed from die-cast aluminum alloy with continuous metallic shielding continuity between the motor body, cable shield termination, and the robot arm structure. This forms a Faraday enclosure around the power winding conductors, attenuating conducted and radiated emissions that would otherwise couple into adjacent sensor wiring. The design complies with IEC 61800-3 Category C3 for drive systems in industrial environments.

Thermal Management: Class F insulation (155°C rated) provides a substantial thermal margin above the motor’s continuous operating temperature. The winding impregnation process uses vacuum pressure impregnation (VPI) with epoxy resin, eliminating air voids that would otherwise act as thermal insulators and partial-discharge initiation sites. This extends winding life in high-cycle-rate applications where thermal cycling is frequent.

Bearing Specification: The rotor shaft is supported by pre-loaded angular contact bearings, selected for their ability to handle combined radial and axial loads generated by robot joint kinematics. Pre-loading eliminates bearing clearance, preventing micro-vibration that would degrade encoder signal fidelity at the sub-arc-minute level.

System Integration Benefits

• Zero-homing Operation: Absolute encoder retains joint position across power cycles, eliminating calibration downtime and reducing restart time after E-stop events by eliminating the homing sequence entirely.
• Direct IRC5 Bus Compatibility: Native electrical and protocol compatibility with ABB IRC5 drive modules means no adapter boards, no parameter mapping, and no firmware modifications — the unit is recognized and configured automatically by the controller on first power-up.
• Low Rotor Inertia for High Bandwidth: Reduced mechanical time constant allows the IRC5 velocity loop to operate at higher bandwidth, improving disturbance rejection and enabling tighter path tracking at elevated TCP speeds.
• Torque Linearity Across Speed Range: PMSM topology maintains consistent torque output from near-zero RPM to rated speed, supporting smooth motion at the slow joint velocities required in sealing, dispensing, and laser-cutting applications.
• IP65 Sealing for Harsh Environments: Dust-tight and water-jet-resistant sealing allows deployment in foundry, food processing, and washdown environments without additional motor enclosures or protective covers.
• Full Diagnostic Transparency: The IRC5 controller reads encoder health, winding temperature (where sensor is fitted), and drive fault codes in real time, surfacing actionable diagnostics to the operator panel and RAPID program without additional instrumentation.
• OEM Serial Number Traceability: Each unit carries an ABB factory serial number linked to production batch records, enabling full supply-chain traceability for ISO 9001 and IATF 16949 audit requirements.
• Drop-in Mechanical Replacement: Flange dimensions, shaft diameter, and connector pinout are identical to the OEM-installed unit, allowing field replacement without machining, re-wiring, or drive re-parameterization — critical for minimizing mean time to repair (MTTR) in line-down scenarios.

Quality Assurance & Global Logistics

Every 3HNA012841-001/07 unit supplied through siemensplc.com is sourced from ABB’s authorized distribution network or verified OEM surplus channels with full documentation. Pre-shipment inspection covers visual integrity, dimensional verification of mounting interfaces, electrical continuity of winding phases and encoder circuits, and insulation resistance testing. Original ABB packaging, labels, and serial numbers are preserved intact — no repackaging, no relabeling.

Units are dispatched from our Xiamen, China warehouse using DHL Express, FedEx International Priority, or UPS Worldwide, with typical transit times of 3–5 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. Each shipment includes a commercial invoice, packing list, and Certificate of Conformance (CoC). Export classification and customs documentation are prepared in compliance with Chinese export regulations and destination-country import requirements. Anti-static bags and moisture-barrier packaging are applied as standard for all servo motor shipments to prevent electrostatic discharge damage and humidity ingress during transit.

A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed with a target response time of 1 business day, and replacement units are dispatched on a priority basis to minimize production impact.
