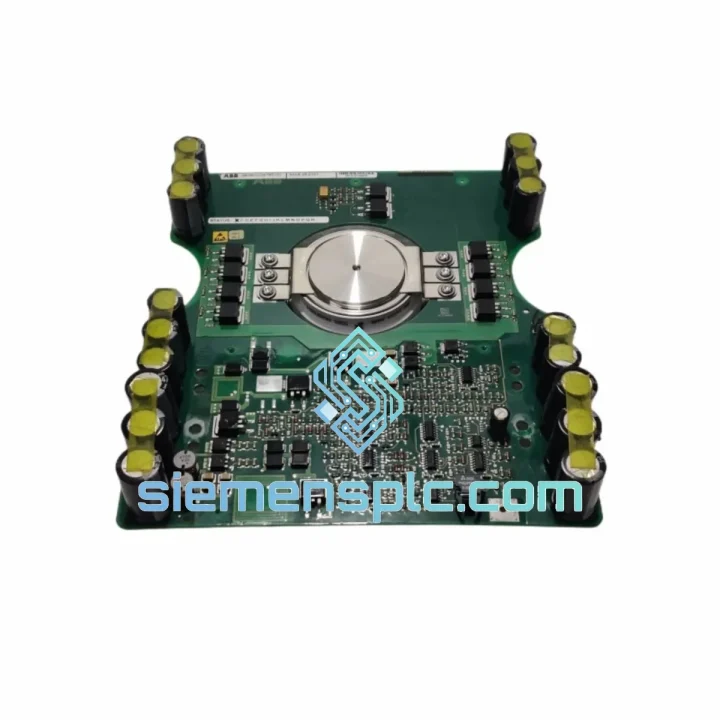

ABB 5SXE05-0151 3BHB003387R0101 IGCT Gate Unit

ABB 5SXE05-0151 (3BHB003387R0101) — Stop the Clock on Your Downtime

Every hour your ACS6000 or MEGADRIVE-LCI sits dead costs real money. A failed IGCT gate unit doesn’t announce itself — it takes out the whole power stage without warning, and suddenly your production line, compressor train, or rolling mill is offline. The ABB 5SXE05-0151 (ref: 3BHB003387R0101) is the exact gate unit that drives the IGCT wafer in these platforms, and we stock it in Xiamen, ready to move the same day you call.

We’ve shipped this part to steel mills in Turkey, LNG terminals in Qatar, and paper mills in Scandinavia — all on emergency DHL freight. If you’re reading this at 2 AM because your drive tripped and won’t reset, you’re in the right place.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point to this gate unit:

• ACS6000 Fault 3210 / 3211 — IGCT gate unit communication loss. The control board sends a fiber-optic heartbeat to the gate unit every 10 µs. If the gate unit doesn’t respond, the drive trips immediately. Before condemning the IGCT wafer itself, swap the gate unit first — it’s the cheaper and faster test.
• Fault 3220 — Gate unit power supply undervoltage. The 5SXE05-0151 has an internal DC/DC converter. If the 24 V auxiliary rail on the gate unit PCB collapses, you’ll see this fault. Check the auxiliary fuse on the gate unit board before assuming the whole module is dead.
• Fault 3230 — Gate unit overtemperature. The gate unit mounts directly to the IGCT press-pack assembly. If the thermal interface compound between the gate unit PCB and the heatsink has dried out, thermal resistance climbs and the gate unit shuts down. Clean and re-apply thermal compound during replacement.
• Intermittent nuisance trips with no clear fault history — classic sign of a gate unit with degraded fiber-optic receiver. The fiber connector on the 5SXE05-0151 is a standard ST-type; inspect for contamination or micro-cracks in the ferrule before replacing the whole unit.

Step-by-step replacement procedure (field-tested):

1. De-energize and lock out. The DC bus on an ACS6000 holds charge for up to 10 minutes after mains disconnect. Verify bus voltage with a calibrated meter before touching anything inside the power cabinet. Do not rely on the drive’s own voltage indicator.
2. Photograph the fiber routing. The gate unit connects to the control board via two fiber-optic cables (TX/RX). They are color-coded but the routing varies by cabinet revision. Take a photo before disconnecting — you will thank yourself later.
3. Release the press-pack clamp. The IGCT assembly is held under controlled clamping force. Do not simply unbolt it. Follow ABB’s torque specification for the clamping bolts (typically 40–60 Nm depending on the wafer size). Incorrect clamping force causes thermal runaway on the next power-up.
4. Disconnect the gate unit PCB. The 5SXE05-0151 attaches to the IGCT wafer via a spring-loaded contact array. Lift it straight off — do not twist. Inspect the contact pads on both the gate unit and the wafer for oxidation or burn marks. If the wafer contacts are damaged, the gate unit replacement alone will not fix the fault.
5. Install the new gate unit. Seat it squarely onto the wafer contacts. Reconnect fiber cables in the correct TX/RX orientation. Reconnect the auxiliary power connector.
6. Re-torque the press-pack clamp to ABB specification. This step is non-negotiable.
7. Power up in test mode. On the ACS6000, use the drive’s commissioning tool (DriveWindow or Drive Composer) to run a gate unit self-test before enabling the main contactor. The test fires the gate unit at low duty cycle and confirms fiber communication integrity. Only proceed to full power-up after a clean self-test result.
8. Log the replacement. Record the old unit’s serial number, the fault history, and the new unit’s serial number in the drive’s maintenance log. ABB service engineers will ask for this if you ever need warranty support.

Configuration notes: The 5SXE05-0151 does not have DIP switches or address jumpers — it is auto-addressed by the drive’s control board via the fiber-optic link during initialization. No manual configuration is required after physical installation. Firmware matching is handled at the drive level; if the drive’s firmware is significantly older than the gate unit’s embedded firmware, a DriveWindow firmware update may be required before the self-test passes.

Reliability in Harsh Conditions

The 5SXE05-0151 was designed for environments that would kill consumer-grade electronics in a week. ABB qualifies this gate unit to operate continuously at 55°C ambient with no derating, and the PCB conformal coating is rated to IEC 60068-2-78 for sustained humidity exposure. The fiber-optic interface eliminates ground loop noise issues that plague copper-based gate drive connections in electrically noisy environments like steel mills and arc furnace installations.

Vibration resistance is qualified to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the shock and vibration profiles seen in marine propulsion installations and mobile mining equipment. The spring-contact interface between the gate unit PCB and the IGCT wafer maintains reliable electrical contact under continuous vibration without the fretting corrosion that affects bolted connections over time.

Units we supply are stored in climate-controlled conditions at our Xiamen facility — temperature-controlled at 20°C ±5°C, humidity below 60% RH — and shipped in anti-static, moisture-barrier packaging with desiccant. We do not store parts in open warehouse racking. Every unit that leaves our facility has been visually inspected, label-verified against ABB’s part numbering convention, and packaging-integrity checked.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. For emergency orders placed before 14:00 CST, same-day dispatch is standard. Here’s what the logistics chain looks like in practice:

• Order confirmed → Picked and packed within 2 hours. We don’t batch emergency orders overnight.
• DHL Express Worldwide: Xiamen to most of Europe in 2–3 business days. Middle East in 1–2 days. Southeast Asia next-day in most cases.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage (e.g., parts of Latin America, remote US locations).
• Export documentation: Commercial invoice, packing list, and HS code (8541.10 for thyristor modules) prepared and submitted electronically at time of dispatch. No delays at customs due to missing paperwork.
• Tracking: AWB number sent to you within 1 hour of dispatch. We monitor the shipment and proactively flag any customs holds.
• Dangerous goods: This part contains no lithium batteries or hazardous materials. No special DG declaration required — faster clearance.

We’ve shipped to 40+ countries. If your site is in a location with complex import requirements (India IGST, Brazil ICMS, Saudi SABER), contact us before ordering — we’ve navigated all of these and can advise on the fastest compliant route.

Contact Information

Don’t wait for a quote form to process. Call or message directly:

• 📧 Email: [email protected]
• 💬 WhatsApp: +86 18359268345
• 🌐 Web: siemensplc.com

Provide your drive model, fault code, and required quantity. We respond within 30 minutes during business hours, and within 2 hours for after-hours emergency inquiries.
