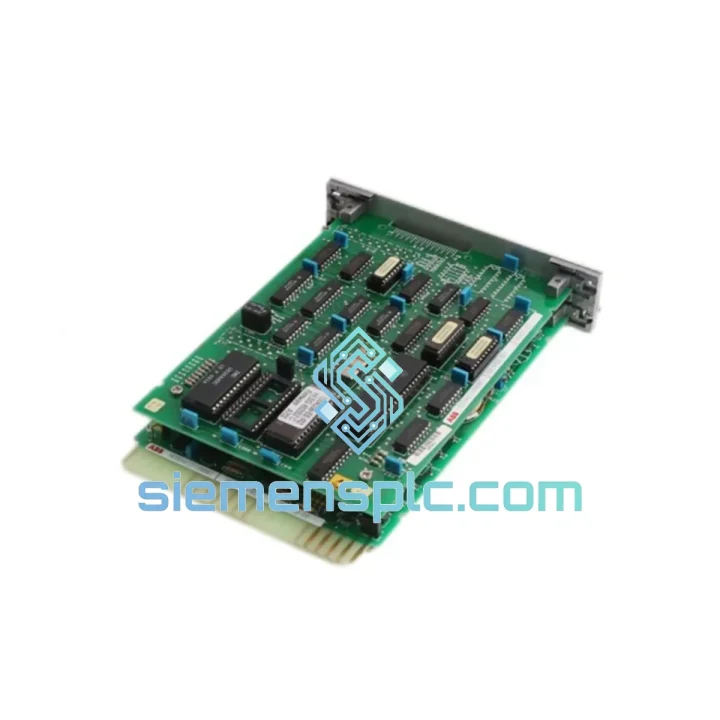

ABB 70BK03A-E Bus Coupler Module – AC500

ABB 70BK03A-E Bus Coupler Module: Fieldbus Gateway Architecture in the AC500 Control Loop

In distributed control architectures, the bus coupler module is not a passive connector — it is an active protocol translator that arbitrates timing, data integrity, and fault propagation between the PLC backplane and the fieldbus segment. The ABB 70BK03A-E fulfills this role within the AC500 modular PLC platform, functioning as the physical and logical interface between the AC500 local I/O expansion bus and an external fieldbus network. Its placement in the control loop determines whether remote I/O nodes respond with deterministic latency or introduce jitter that degrades closed-loop performance.

The AC500 platform operates on a synchronous internal bus architecture where the CPU module polls I/O data at fixed scan intervals. When remote I/O is introduced via a bus coupler, the coupler must buffer, packetize, and forward I/O data across the fieldbus segment without violating the CPU’s scan cycle budget. The 70BK03A-E is engineered to maintain this timing discipline, ensuring that remote I/O data arrives within the CPU’s expected update window — a requirement that is non-negotiable in motion control, process interlocking, and safety-rated applications.

ABB’s AC500 series is deployed across more than 50 countries in sectors including oil and gas, water treatment, power distribution, and discrete manufacturing. The 70BK03A-E is a field-proven component within this ecosystem, with a hardware design that reflects ABB’s engineering standards for industrial-grade reliability and long-term availability.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 70BK03A-E implements a dual-bus interface architecture: on one side, it presents a synchronous parallel interface to the AC500 I/O expansion bus; on the other, it drives a serial fieldbus segment. The internal logic must perform real-time protocol conversion between these two domains without introducing variable latency — a requirement that demands a dedicated communication controller rather than a shared-resource microprocessor.

From an EMC standpoint, the module’s position at the boundary between the backplane bus and the external fieldbus cable makes it a primary ingress point for conducted interference. ABB addresses this through galvanic isolation between the fieldbus port and the internal bus logic, typically implemented via optocoupler arrays or transformer-coupled transceivers. This isolation barrier prevents ground loop currents — common in large industrial installations where cabinet ground potentials differ by several volts — from corrupting the internal bus data or damaging the CPU backplane.

The fieldbus transceiver section incorporates line termination management and signal conditioning to maintain signal integrity across cable runs that may extend to several hundred meters. Impedance matching at the physical layer is critical: a mismatch of even 10–15% in termination resistance can produce reflections that corrupt data frames at high baud rates, forcing retransmissions that inflate effective cycle time. The 70BK03A-E’s transceiver design accounts for these transmission line effects within the AC500’s supported fieldbus topology.

Internally, the module maintains a process image mirror — a local copy of the I/O data for its connected remote nodes. This mirror is updated asynchronously from the fieldbus cycle and read synchronously by the AC500 backplane bus. The decoupling between these two update domains is managed by a dual-port memory or equivalent arbitration logic, which prevents bus contention and ensures that the CPU always reads a coherent, non-torn data snapshot regardless of where the fieldbus cycle is at the moment of the backplane read.

System Integration Benefits

• Deterministic Remote I/O Latency: The 70BK03A-E’s internal process image architecture decouples fieldbus cycle timing from the AC500 CPU scan cycle, preventing remote I/O jitter from propagating into the control loop and degrading PID or sequence control performance.
• Galvanic Isolation at the Fieldbus Boundary: Optical or transformer-based isolation between the fieldbus port and the backplane bus eliminates ground loop interference paths, protecting the CPU and I/O modules from conducted transients originating on the fieldbus cable.
• Reduced Panel Wiring Density: Replacing point-to-point I/O wiring with a single fieldbus cable to remote I/O stations reduces terminal block count, cable tray fill, and installation labor — directly lowering panel build cost and improving long-term maintainability.
• Integrated Diagnostic Transparency: The module surfaces fieldbus segment health data — including node communication status, error counters, and bus load — to the AC500 CPU via the backplane, enabling the application program to implement predictive maintenance logic without external diagnostic hardware.
• Scalable I/O Expansion Without Backplane Redesign: Additional remote I/O nodes can be added to the fieldbus segment without modifying the local backplane configuration, allowing capacity expansion during plant extensions or process modifications with minimal engineering effort.
• Hot-Swap Compatible Node Management: In supported configurations, the fieldbus architecture allows individual remote I/O nodes to be replaced or added while the system remains operational, reducing planned maintenance windows and eliminating the need for full system shutdowns for I/O hardware changes.
• Consistent Behavior Across AC500 CPU Generations: The 70BK03A-E presents a standardized interface to the AC500 backplane, ensuring that application programs developed for one CPU generation remain compatible when the CPU is upgraded, protecting software investment across hardware lifecycle transitions.
• Reduced EMI Emission from I/O Wiring: Concentrating remote I/O data onto a single shielded fieldbus cable rather than multiple parallel signal cables reduces the total radiating aperture of the installation, improving overall system EMC compliance and simplifying CE/UL certification for the end equipment.

Quality Assurance & Global Logistics

Every ABB 70BK03A-E unit supplied through siemensplc.com is sourced as genuine ABB product. Part markings, label formats, and packaging are verified against known-authentic references prior to dispatch. Physical inspection covers connector pin integrity, housing condition, and label legibility. Units are packed in anti-static bags within foam-lined cartons rated for international air freight handling.

Shipments originate from Xiamen, China — a major logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and TNT Economy services. Standard transit times to major industrial centers are 3–5 business days to Europe, 2–4 business days to Southeast Asia, and 4–7 business days to North America and the Middle East. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include full tracking and commercial invoice documentation for customs clearance. A 12-month warranty covers manufacturing defects, with replacement or credit issued upon confirmed fault verification.
