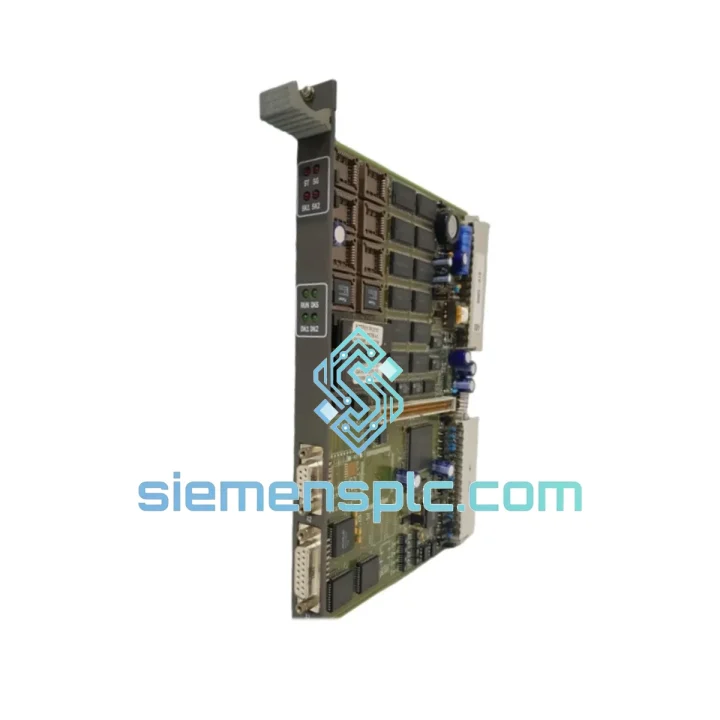

ABB 87TP01 PROFIBUS DP Coupler Module

ABB 87TP01 — Stop the Clock on Your Downtime. Ship Today.

Your PROFIBUS segment is dead. The AC500 rack is throwing BF and SF LEDs. Production is hemorrhaging money by the minute. The 87TP01 coupler is the single point of failure between your PROFIBUS DP master and every downstream S500 I/O module on that drop — and right now we have it on the shelf in Xiamen, ready to clear customs and land on your dock faster than your maintenance team can finish the incident report.

We stock the ABB 87TP01 as a genuine OEM unit. No grey-market sourcing, no refurbished boards passed off as new. Every unit ships with original ABB packaging, traceable batch documentation, and a 12-month warranty against manufacturing defects. When you’re staring at a stopped line, that paper trail matters — for your insurance claim, your root-cause report, and your plant manager’s post-mortem.

One call or email is all it takes. We handle the rest: export declaration, DHL/FedEx booking, real-time tracking link, and a commercial invoice formatted for your customs broker. Most shipments from Xiamen to major industrial hubs in Europe, Southeast Asia, and the Americas clear in 3–5 business days door-to-door.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom pattern that points to a failed 87TP01: The AC500 CPU (PM5xx) is running normally — green RUN LED, no CPU fault. But one or more S500 I/O drops show BF (Bus Fault) on the coupler face, and the CPU diagnostic buffer logs “Station failure — PROFIBUS address XX”. Outputs on that drop freeze at last state or go to safe state depending on your watchdog config. Inputs stop updating. Classic coupler failure.

Before you pull the module, verify these first:

• Check PROFIBUS cable termination resistors at both ends of the segment — a missing terminator mimics coupler failure.
• Measure bus voltage between A/B lines: should be 3–5 V differential at idle. Zero volts = cable break or short upstream.
• Confirm the rotary address switches on the 87TP01 face match the address configured in your GSD/hardware config. A mismatch after a previous swap is a common trap.
• Check for moisture ingress on the DB9 PROFIBUS connector — corrosion on pin 3 (B-line) or pin 8 (A-line) causes intermittent BF faults that look like coupler failure.

Replacement procedure (field-tested, 15-minute swap):

• Step 1 — Power down the I/O drop: De-energize the 24 V DC supply feeding the S500 terminal unit. The CPU can remain running if your system supports hot-swap at the segment level — but confirm this in your project documentation first. When in doubt, take the segment offline.
• Step 2 — Note the rotary switch positions: Before removing the old 87TP01, photograph or record the two rotary switches (tens digit and units digit). The PROFIBUS node address is set here. Losing this setting means your replacement module will come up on address 0 and the CPU will not find it.
• Step 3 — Disconnect PROFIBUS cable: Unplug the DB9 connector. Do not yank — depress the locking tab. Inspect the connector pins for damage before reusing.
• Step 4 — Release the module: Press the orange release lever on the terminal unit and slide the 87TP01 upward to disengage. The module separates cleanly from the terminal unit — the terminal unit stays wired and mounted.
• Step 5 — Set address on new module: Before snapping in the replacement, set the rotary switches to match the recorded address. This is non-negotiable — the address is hardware-set and cannot be overridden by software on this module generation.
• Step 6 — Snap in and reconnect: Align the replacement 87TP01 with the terminal unit guides and press down until you hear the latch click. Reconnect the PROFIBUS DB9. Restore 24 V DC power.
• Step 7 — Verify in Automation Builder: Go online with the CPU. The diagnostic buffer should clear the station failure alarm within 2–3 scan cycles. Confirm all I/O on the drop is reading correctly before releasing the line.

Common fault codes associated with 87TP01 failure:

• 0x0D01 — PROFIBUS DP slave not reachable (station dropout)
• 0x0D02 — Configuration mismatch (GSD vs. physical module — check if a different coupler type was previously installed)
• 0x0D10 — Watchdog timeout on slave (often precedes full BF state)

Firmware note: The 87TP01 does not carry user-upgradeable firmware. If you are replacing a module that was running in a system with AC500 V3 CPUs (PM5630, PM5650), confirm the terminal unit part number is compatible — V3 systems use updated terminal units that are not backward-compatible with all legacy couplers.

Reliability in Harsh Conditions

The 87TP01 was engineered for the kind of environments where PLCs actually live — not climate-controlled server rooms, but switchgear cabinets next to 400 kW drives, outdoor substations in coastal humidity, and food-processing lines that get hosed down every shift.

The module’s conformal-coated PCB resists condensation and airborne contaminants including cutting fluids, cleaning agents, and sulfur compounds common in pulp and paper or wastewater applications. The snap-on terminal unit design eliminates field wiring on the module itself — all I/O wiring stays on the terminal unit during a swap, which means zero rewiring errors and zero risk of a miswired replacement causing a secondary fault.

Vibration resistance meets IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1 g) and IEC 60068-2-27 (shock, 15 g / 11 ms). In practice, this covers most compressor rooms, press lines, and mobile equipment panels. The operating temperature floor of −25 °C makes it viable for unheated outdoor enclosures in northern climates without a cabinet heater — a real cost saving on remote pump stations and pipeline monitoring installations.

EMC performance is validated to EN 61000-4 series: 4 kV contact discharge, 8 kV air discharge, and 10 V/m radiated immunity. In high-noise environments — near large VFDs, welding equipment, or MV switchgear — the 87TP01 maintains bus integrity without requiring additional shielding beyond standard PROFIBUS cable practice (shielded cable, grounded at one end).

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental: it gives us same-day handoff to DHL Express and FedEx International Priority for urgent shipments, and competitive sea-freight rates for bulk orders.

Typical transit times (air express, door-to-door):

• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): 2–3 business days
• Europe (Germany, Netherlands, Poland, UK): 3–5 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days
• South America (Brazil, Chile, Colombia): 5–8 business days

Our logistics process for urgent orders:

• Order confirmed before 14:00 CST → same-day dispatch in most cases
• AWB (air waybill) number sent to you within 2 hours of pickup
• Commercial invoice and packing list formatted to your country’s customs requirements
• HS Code declared as 8537.10 (boards, panels, consoles for electric control) — standard for PLC modules, minimizes customs query risk
• Export license: not required for this product under current CN export regulations
• Insurance available on request for shipments over USD 500

For plant shutdowns or scheduled maintenance windows where timing is critical, contact us via WhatsApp before placing the order. We can confirm cut-off times, check carrier capacity, and in some cases arrange Saturday pickup for Monday delivery in your region.
