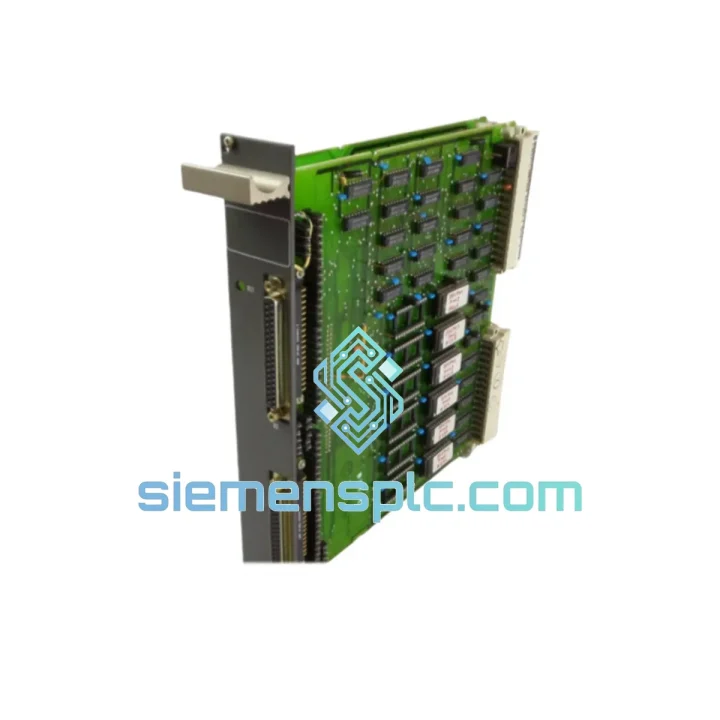

ABB 88VP02B-E9102 PLC I/O Module – AC500 Series

ABB 88VP02B-E9102 — Digital I/O Expansion Module for AC500 Distributed Control Architecture

The ABB 88VP02B-E9102 is a high-density digital I/O expansion module engineered for the AC500 programmable controller platform. Within a distributed control loop, this module occupies the field-interface layer: it receives discrete signals from sensors, switches, and actuators, conditions those signals through internal optical isolation stages, and presents clean logic-level data to the AC500 CPU via the internal S500 communication bus. Its role is deterministic — every scan cycle, the CPU reads the input image and writes the output image through the module with a fixed, bounded latency that is essential for time-critical interlock and sequencing logic.

Unlike general-purpose relay boards or standalone I/O terminals, the 88VP02B-E9102 is designed as a native AC500 ecosystem component. It draws configuration data directly from the CPU’s hardware configuration table, requires no separate power supply wiring for its logic circuitry, and participates in the AC500’s integrated diagnostic framework. This tight coupling reduces commissioning overhead and eliminates the protocol translation layers that introduce latency and failure modes in third-party I/O solutions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 88VP02B-E9102 implements a two-stage signal conditioning architecture. At the field boundary, each input channel passes through a dedicated optocoupler with a typical propagation delay of under 1 ms, providing galvanic isolation between the 24 VDC field wiring and the module’s internal 3.3 V logic domain. This isolation barrier suppresses common-mode transients — particularly the inductive kickback generated by solenoid valves and motor contactors — that would otherwise corrupt the digital input register or damage the ASIC front-end.

On the output side, the module employs solid-state transistor drivers rather than mechanical relays. Each output channel incorporates an integrated current-limiting circuit and a thermal shutdown mechanism that activates at approximately 150 °C junction temperature. This design eliminates contact bounce, extends service life beyond 10⁷ switching cycles, and allows output switching frequencies up to several hundred Hz — a requirement in pulse-width modulation (PWM) applications such as proportional valve control.

The S500 backplane bus interface uses a synchronous serial protocol with CRC error detection on every frame. If a bus frame fails CRC validation, the module holds its last valid output state and asserts a diagnostic flag in the CPU’s I/O status register — a fail-safe behavior that prevents spurious actuator commands during transient communication errors. The module’s internal watchdog timer independently monitors bus activity; if no valid frame is received within the configured timeout window (typically 10–100 ms, configurable in Automation Builder), all outputs de-energize to a defined safe state.

EMC hardening is achieved through a combination of hardware and layout measures: the PCB uses a continuous ground plane beneath the signal traces, ferrite beads are placed on the power supply rails entering the logic domain, and the module housing provides shielding continuity when mounted on a grounded DIN rail. These measures collectively achieve the IEC 61000-4-4 Level 4 burst immunity rating (4 kV peak, 5/50 ns pulse), which is the standard benchmark for industrial panel environments adjacent to variable-frequency drives and high-current switching gear.

System Integration Benefits

• Zero-configuration hardware recognition: When inserted into an AC500 terminal unit, the CPU automatically identifies the module type via the S500 bus enumeration sequence. No DIP switches, no address jumpers, no manual hardware configuration steps at the panel level.
• Deterministic scan-cycle participation: The module’s I/O data is exchanged within the CPU’s fixed scan cycle, not via an asynchronous polling mechanism. This guarantees that input state changes are captured within one scan period, which is critical for edge-triggered interlock logic.
• Integrated channel-level diagnostics: Each input and output channel reports its status — open-wire, short-circuit, overload — directly into the AC500 diagnostic buffer. Engineers can read these flags via standard IEC 61131-3 function blocks without writing custom diagnostic code.
• Hot-swap capability (with appropriate terminal unit): On supported AC500 configurations, the module can be replaced under power without halting the CPU, reducing planned maintenance windows in continuous-process applications.
• Consistent spare-parts strategy: A single 88VP02B-E9102 module covers multiple I/O configurations within the AC500 family, allowing maintenance teams to hold fewer unique spare SKUs while maintaining full coverage across a multi-cabinet installation.
• Automation Builder integration: The module’s hardware descriptor is included in the standard Automation Builder hardware catalog. Engineers drag-and-drop the module into the hardware configuration tree; I/O addresses are automatically assigned and cross-referenced in the variable table.
• Wide thermal operating envelope: The −25 °C to +60 °C rating accommodates outdoor enclosures in northern climates and non-air-conditioned plant floors in tropical regions without derating or additional thermal management hardware.
• ATEX Zone 2 suitability: The module carries ATEX II 3 G certification, permitting installation in control panels located in Zone 2 hazardous areas — a common requirement in petrochemical, pharmaceutical, and grain-handling facilities.
• RoHS and REACH compliance: All materials meet EU Directive 2011/65/EU (RoHS 2) and REACH SVHC requirements, simplifying export documentation for EU-destination projects.
• Scalable I/O expansion: Multiple 88VP02B-E9102 modules can be stacked on a single AC500 CPU station or distributed across remote I/O stations connected via PROFIBUS-DP, Modbus TCP, or EtherNet/IP, providing a linear expansion path from small machine controllers to plant-wide DCS architectures.

Quality Assurance & Global Logistics

Every 88VP02B-E9102 unit supplied by siemensplc.com is sourced through verified ABB-authorized distribution channels. Prior to dispatch, each module undergoes a structured incoming inspection protocol: visual examination of housing integrity and label authenticity, connector pin condition check, firmware version verification against the current ABB release matrix, and anti-static packaging with humidity indicator cards sealed inside the shipping carton.

Shipments originate from our Xiamen, China warehouse. Xiamen’s port infrastructure supports direct air freight connections to major logistics hubs in Europe (Frankfurt, Amsterdam), North America (Los Angeles, Chicago), Southeast Asia (Singapore, Kuala Lumpur), and the Middle East (Dubai). Standard air freight transit times are 3–7 business days to most destinations. Express courier options (DHL, FedEx, UPS) are available for urgent project requirements, with door-to-door delivery achievable in 2–4 business days to most countries.

Export documentation — including commercial invoice, packing list, certificate of origin, and HS Code 8537.10 classification — is prepared for every international shipment. For projects requiring ATEX or CE conformity documentation, ABB factory certificates are available upon request. All units are shipped with a 12-month warranty against manufacturing defects, with warranty claims processed directly through our technical team.
