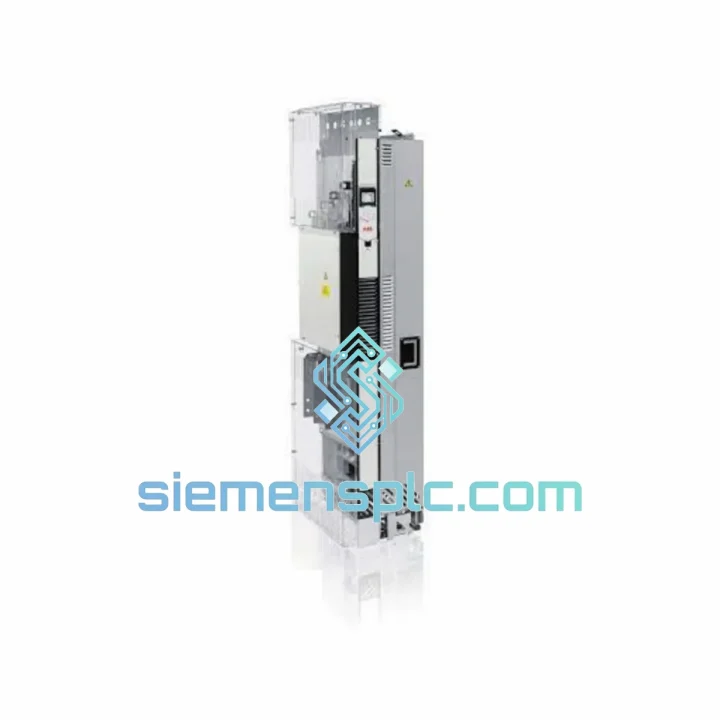

ABB ACS880-04-330A-7 AC Variable Frequency Drive – ACS880 Series

ABB ACS880-04-330A-7: Cabinet-Integrated High-Power AC Drive for Continuous Industrial Load Control

In process-critical installations — compressor trains, mine hoists, rolling mill drives, and large pump stations — the variable frequency drive is not a peripheral device. It is the primary torque-generating interface between the control system and the mechanical load. Any instability in current regulation, any latency in torque response, or any failure in thermal management translates directly into process deviation or unplanned downtime. The ABB ACS880-04-330A-7 is a cabinet-mounted AC drive rated at 330 A continuous output current in the 690 V voltage class, designed to sustain deterministic motor control under the full range of industrial operating conditions without derating or protective shutdown.

The ACS880-04 is the panel-integrated variant within ABB’s ACS880 industrial drive family. Unlike wall-mounted standalone units, the -04 suffix designates a cabinet-built configuration: the power electronics, DC bus capacitor bank, gate driver boards, and control unit are pre-assembled within a steel enclosure rated IP21, ready for direct installation into motor control centers or switchgear panels. The 330A / R7 frame rating corresponds to a nominal motor power of approximately 250 kW at 690 V in heavy-duty duty cycle, making it one of the highest-current single-unit configurations in the ACS880-04 range before transitioning to multi-drive cabinet architectures.

The drive’s control core executes ABB’s Direct Torque Control (DTC) algorithm — a field-oriented control method that operates without a shaft encoder in its default configuration. DTC computes motor flux and torque estimates at a 40 µs cycle rate using a real-time motor model, enabling torque step response times below 1–2 ms under no-load to full-load transitions. This response characteristic is measurably faster than conventional space-vector PWM drives, which typically require 5–10 ms for equivalent torque steps. In applications such as winder tension control or crane load handling, this difference in dynamic response directly determines process quality and mechanical stress on drivetrain components.

The ACS880-04-330A-7 integrates a built-in Safe Torque Off (STO) function compliant with IEC 62061 SIL 3 and ISO 13849-1 PLe, eliminating the need for external safety contactors in most machine safety architectures. The STO circuit operates on a dual-channel hardware path independent of the main control firmware, ensuring that a software fault cannot inadvertently re-enable the output stage. This architecture is increasingly mandated by machinery directive compliance requirements across EU and export markets.

Fieldbus connectivity is handled through ABB’s option module slot architecture. A single slot accepts protocol-specific adapter modules — FDNA-01 for PROFINET IO, FBAP-01 for PROFIBUS DP, FEIP-01 for EtherNet/IP, or FCAN-01 for CANopen — without requiring external gateways or protocol converters. This modularity allows the same drive hardware to be deployed across Siemens TIA Portal environments (via PROFINET), Rockwell ControlLogix systems (via EtherNet/IP), or legacy PROFIBUS networks, reducing spare parts inventory complexity for multi-vendor plant environments.

Thermal management in the R7 frame uses a forced-air cooling system with internal airflow channeling that separates the power module heat sink from the control electronics compartment. The power module’s IGBT junction temperature is monitored in real time, and the drive’s thermal model continuously calculates remaining thermal headroom, enabling predictive derating warnings before any protective trip occurs. This approach gives the process control system advance notice of thermal stress rather than an abrupt fault shutdown.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ACS880-04-330A-7 power stage is built around a three-phase IGBT inverter bridge with individual gate driver boards per phase leg. Each gate driver incorporates desaturation detection — a hardware-level overcurrent protection mechanism that monitors IGBT collector-emitter voltage during conduction. If the IGBT enters desaturation (indicating overcurrent or short-circuit conditions), the gate driver initiates a controlled soft-shutdown within microseconds, independent of the main DSP control loop. This hardware-level protection prevents IGBT destruction in fault conditions that would otherwise propagate before firmware-based protection could respond.

The DC bus architecture uses a bank of electrolytic capacitors sized to provide sufficient energy storage for ride-through during brief supply voltage dips — typically 200–500 ms depending on load level. The capacitor bank is monitored by a dedicated voltage measurement circuit that feeds the control unit’s DC bus voltage feedback loop, enabling the drive to modulate output voltage and frequency during supply disturbances to maintain motor flux and prevent uncontrolled deceleration.

EMC performance is addressed at the hardware level through a multi-stage approach. The built-in C2 EMC filter attenuates conducted emissions on the supply side, meeting EN 61800-3 Category C2 limits for industrial environments. The cabinet structure provides shielding continuity, with cable entry points designed for 360° cable shield termination to prevent high-frequency common-mode currents from propagating into the control wiring. The control unit’s analog input circuits use differential measurement with common-mode rejection ratios exceeding 60 dB, maintaining signal integrity in environments with significant ground potential differences — a common condition in large industrial facilities with multiple earthing points.

The motor model used by the DTC algorithm is identified during an automatic motor identification run (ID run) performed at commissioning. During the ID run, the drive injects a series of test voltage vectors and measures the resulting current responses to calculate stator resistance, rotor resistance, leakage inductance, and magnetizing inductance. These parameters are stored in non-volatile memory and used continuously during operation to maintain accurate flux and torque estimates. The result is that DTC performance is maintained across the full speed range — including zero speed — without requiring a shaft encoder, which eliminates encoder cable routing, encoder power supply, and encoder failure as potential fault sources.

System Integration Benefits

• Deterministic Torque Response: DTC’s sub-2 ms torque step response enables tight tension control in winder/unwinder applications and precise positioning in crane and hoist systems without encoder feedback.
• Encoder-Free Operation: Full-performance DTC without shaft encoder reduces mechanical complexity, eliminates encoder-related failure modes, and simplifies cable routing in hazardous or high-vibration environments.
• Multi-Protocol Fieldbus via Single Option Slot: One hardware platform supports PROFINET, PROFIBUS DP, EtherNet/IP, and CANopen — reducing spare parts inventory and enabling deployment across multi-vendor automation architectures.
• Hardware STO (SIL 3 / PLe): Dual-channel Safe Torque Off eliminates external safety contactors in most machine safety designs, reducing panel space, wiring complexity, and contactor maintenance intervals.
• Predictive Thermal Management: Real-time IGBT junction temperature monitoring with thermal model-based derating warnings gives the control system advance notice of thermal stress, enabling process adjustment before a protective trip occurs.
• DC Bus Ride-Through: Capacitor bank sizing supports supply voltage dip ride-through, maintaining motor flux during brief grid disturbances without process interruption.
• Diagnostic Transparency: The drive’s fault logger records the last 64 fault events with timestamps, parameter snapshots at fault time, and drive operating state — providing the data needed for root-cause analysis without requiring oscilloscope capture during fault conditions.
• Energy Efficiency Monitoring: Integrated kWh energy counter and load analyzer function provide real-time and historical energy consumption data accessible via fieldbus or the Drive Composer PC tool, supporting ISO 50001 energy management reporting.
• Cabinet-Ready Pre-Assembly: Factory-assembled and tested configuration reduces site installation time compared to component-level assembly, with standardized cable entry points and pre-wired control terminals.
• Wide Ambient Temperature Range: Rated operation from -15°C to +40°C with derating to +50°C accommodates installation in non-climate-controlled industrial buildings and outdoor enclosures in temperate climates.

Quality Assurance & Global Logistics

Every ABB ACS880-04-330A-7 unit supplied by siemensplc.com is sourced through verified supply channels with full traceability to ABB’s manufacturing and distribution network. Prior to shipment, each unit undergoes a structured inspection protocol: physical integrity verification of the cabinet structure, connector condition assessment, label and serial number authentication cross-referenced against ABB’s product records, and where applicable, a power-on functional check confirming firmware version, parameter accessibility, and STO circuit continuity.

Units are packaged in anti-static, moisture-barrier protective packaging with shock-absorbing foam inserts rated for the unit’s 319 kg mass. Climate-controlled storage is maintained prior to dispatch to prevent condensation-related damage to the capacitor bank and control electronics.

Logistics operations are managed from Xiamen, China, with established freight partnerships covering DHL Express, FedEx International Priority, and sea freight consolidation for large-volume orders. Export documentation — commercial invoice, packing list, certificate of origin, and HS code classification — is prepared for each shipment to facilitate customs clearance in the destination country. Typical air freight transit times to major industrial hubs in Europe, Southeast Asia, and the Middle East range from 3 to 7 business days. All shipments are covered by cargo insurance, and real-time tracking references are provided upon dispatch.

A 12-month warranty is provided from the date of shipment, covering manufacturing defects and component failures under normal operating conditions as defined in ABB’s ACS880 technical documentation. Warranty claims are processed through our technical team with direct coordination with ABB supply chain partners for component-level resolution.
